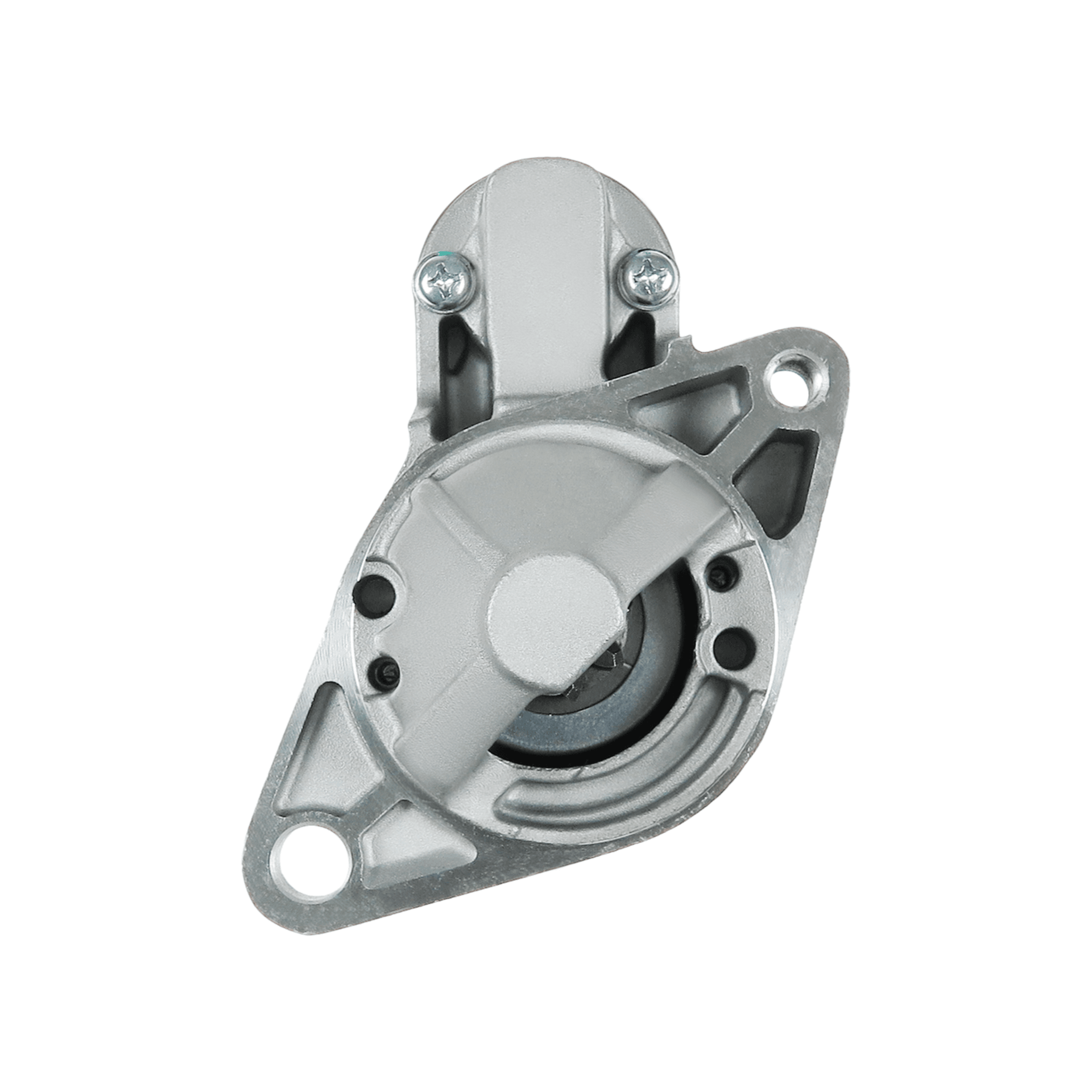

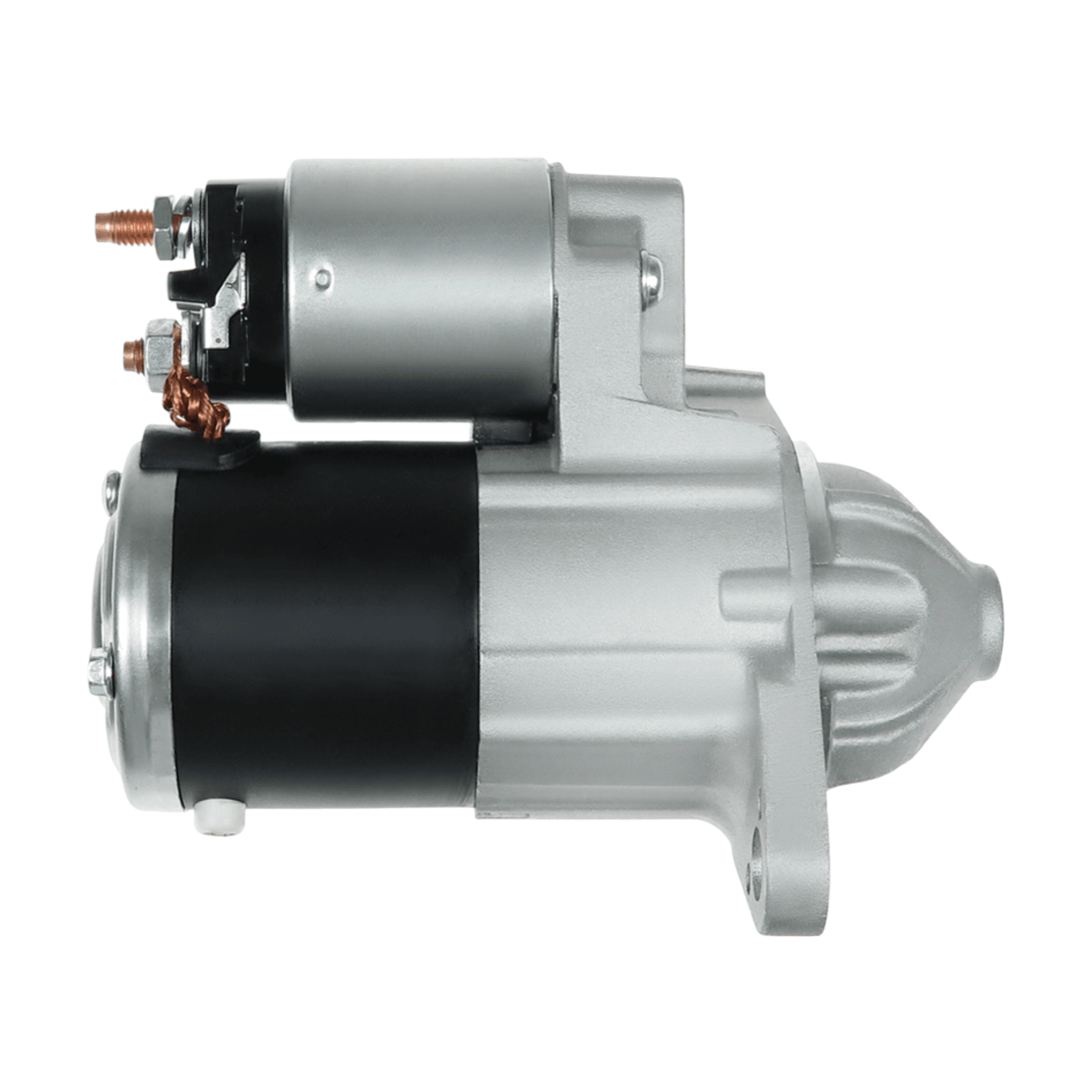

Starter XTLSTR3047
Download PDF
No./teeth
8 qty
Power
1.2 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
119.5 mm
No./mount. holes with thread [ qty. ]
1 qty
C.1 [ mm ]
M10x1.5 mm
L.1 [ mm ]
174 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
12.50 mm
Size A [ mm ]
74 mm
Size B [ mm ]
8 mm
View More
Starter XTLSTR3047
Download PDF
Send Inquiry
No./teeth
8 qty
Power
1.2 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
119.5 mm
No./mount. holes with thread [ qty. ]
1 qty
C.1 [ mm ]
M10x1.5 mm
L.1 [ mm ]
174 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
12.50 mm
Size A [ mm ]
74 mm
Size B [ mm ]
8 mm
WhatsApp inquiry
Email inquiry
Applications
ALL
CHRYSLER
Make
Vehicle
Model Types
From
To
CHRYSLER
PT CRUISER (PT_) 2.4
EDV
09/2004
12/2010
CHRYSLER
PT CRUISER Convertible 2.4 GT
EDV
03/2004
03/2008
CHRYSLER
PT CRUISER (PT_) GT 2.4
EDV
08/2003
12/2010
Home
Starter
Starter XTLSTR3047
Original Code (Vehicle Manufacturer)
05033141AB
5033141AB
17873N
17873R
25-3442
254616
830.589.082
S135.669
91-27-3382
DRS0404
DS1514
LRS02271
LRS2271
M000T30672
M000T30672 (MITSUBISHI)
M000T30672ZC
M000T30672ZC (MITSUBISHI)
M0T30672
M0T30672 (MITSUBISHI)
M0T30672ZC
M0T30672ZC (MITSUBISHI)
S-80009
STM1214
STM3672
STRF546
UD20387S
ANM12624X
336559
STR5200
STX210332
STX210332R
Equivalent Code (Vehicle Manufacturer)
05033141AB (CHRYSLER)
5033141AB (CHRYSLER)
17873N (WAI / TRANSPO)
17873R (WAI / TRANSPO)
25-3442 (ELSTOCK)
254616 (KUHNER)
830.589.082 (PSH)
S135.669 (PSH)
91-27-3382 (WILSON)
DRS0404 (DELCO)
DS1514 (DELCO)
LRS02271 (LUCAS)
LRS2271 (LUCAS)
Applications
S-80009 (DIXIE)
STM1214 (ROLLCO)
STM3672 (KRAUF)
STRF546 (3EFFE)
UD20387S (AS-PL)
ANM12624X (ANDEL)
336559 (LOGISTIK)
STR5200 (ELECTROLOG)
STX210332 (STARDAX)
STX210332R (STARDAX)
