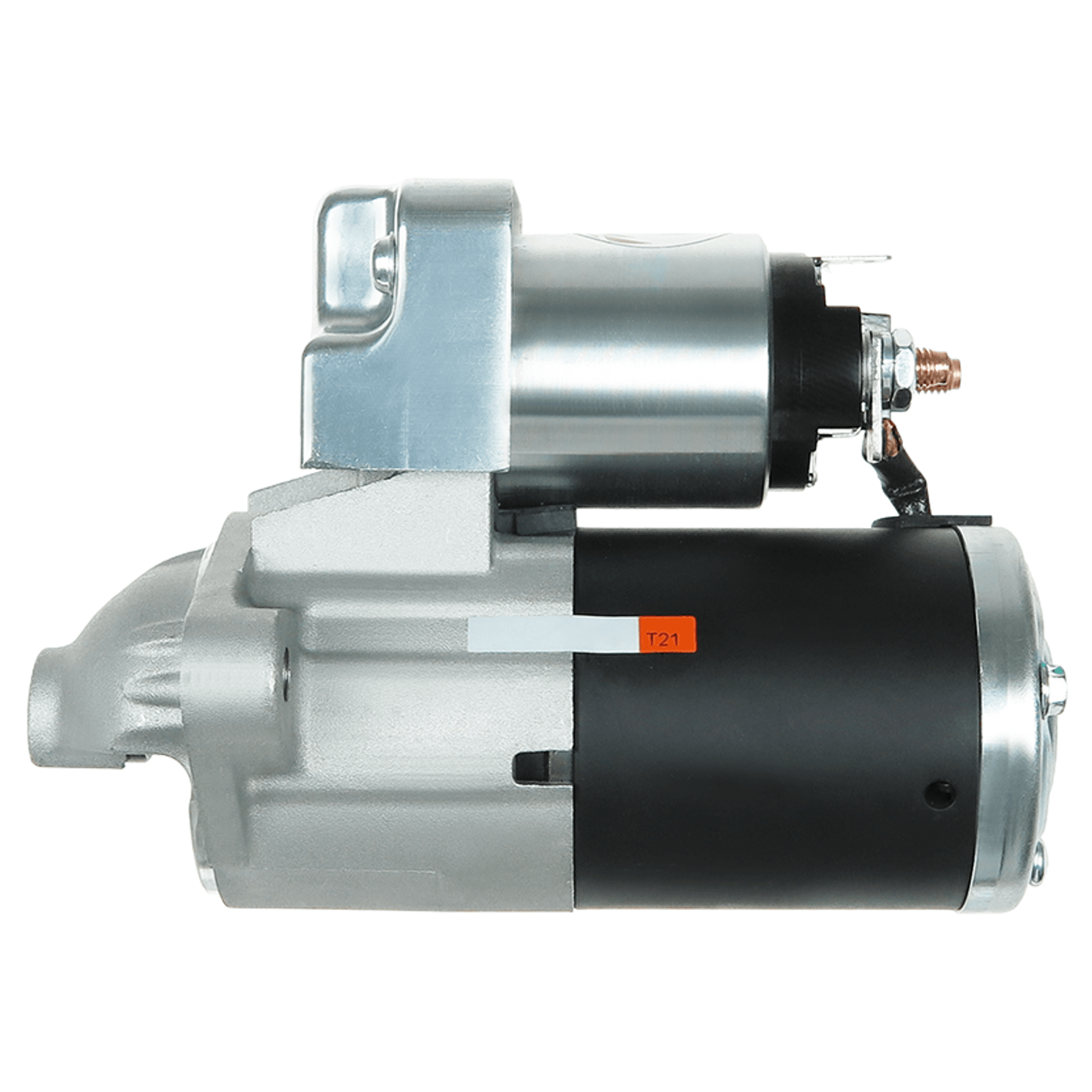

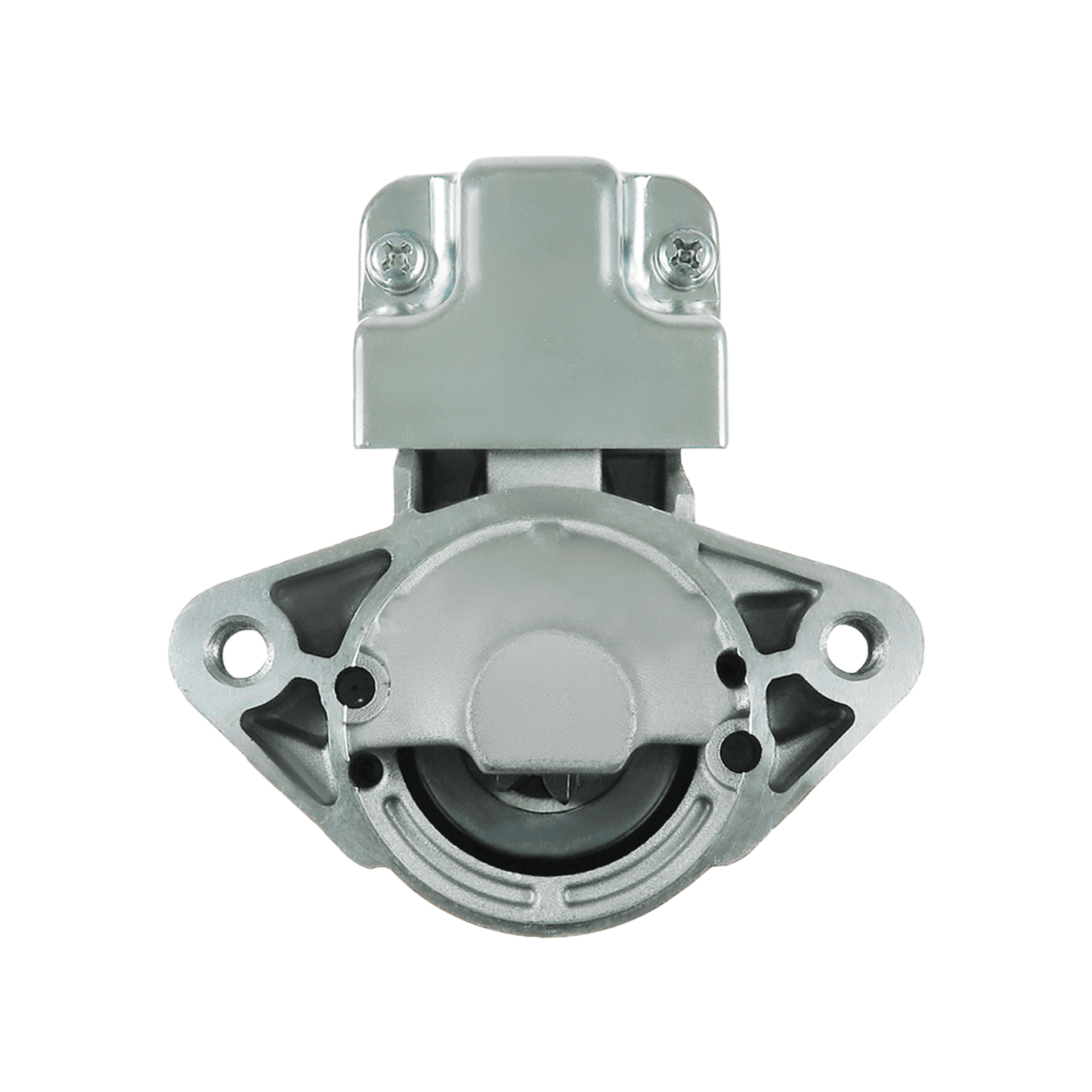

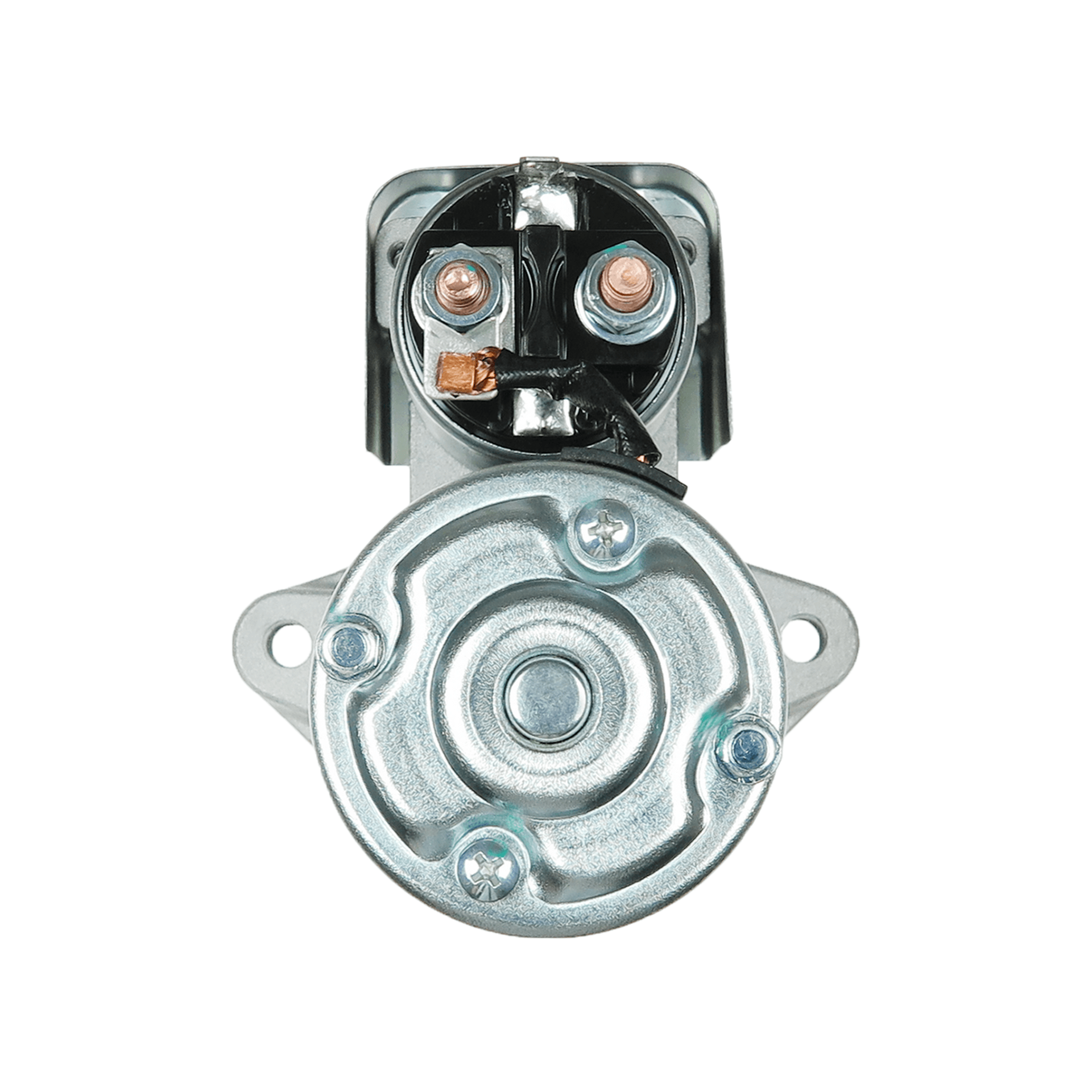

Starter XTLSTR3098
Download PDF
No./teeth
8 qty
Power
1.4 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
101 mm
No./mount. holes with thread [ qty. ]
2 qty
C.1 [ mm ]
M10x1.25 mm
L.1 [ mm ]
189 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
M10x1.25 mm
Size A [ mm ]
66 mm
Size B [ mm ]
4 mm
View More
Starter XTLSTR3098
Download PDF
Send Inquiry
No./teeth
8 qty
Power
1.4 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
101 mm
No./mount. holes with thread [ qty. ]
2 qty
C.1 [ mm ]
M10x1.25 mm
L.1 [ mm ]
189 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
M10x1.25 mm
Size A [ mm ]
66 mm
Size B [ mm ]
4 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR3098
Original Code
19057
31100-65J30
M000T21771
MOT21771
Equivalent Code (Vehicle Manufacturer)
0986UR1574 (BOSCH)
180.530.082 (PSH)
S130.836 (PSH)
19057N (WAI / TRANSPO)
19057R (WAI / TRANSPO)
19057 (SUZUKI)
31100-65J30 (SUZUKI)
31100-65J30REM (SUZUKI)
91-27-3451 (WILSON)
S-80344 (DIXIE)
STM3771 (KRAUF)
S5427S (AS-PL)
UD20421S (AS-PL)
CST35336AS (CASCO)
20437633BN (REAL)
6035336.0 (SANDO)
MAV373360A (SIOM)
1911550 (ONAN)
61097 (RELIANCE)
Applications
Applications
ALL
SUZUKI
Make
SUZUKI
