Starter XTLSTR3140 | SINTLY
Previous slide
Next slide

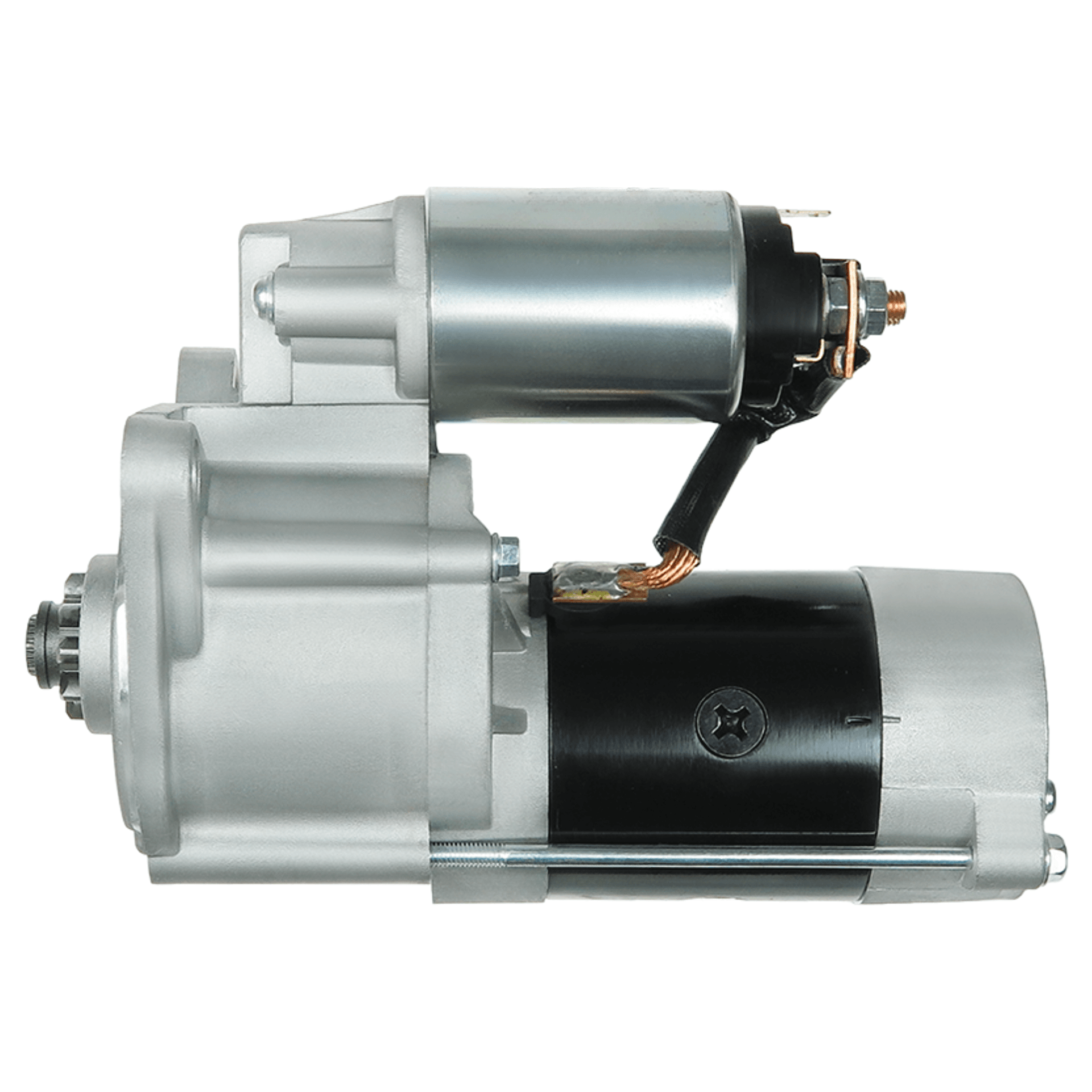

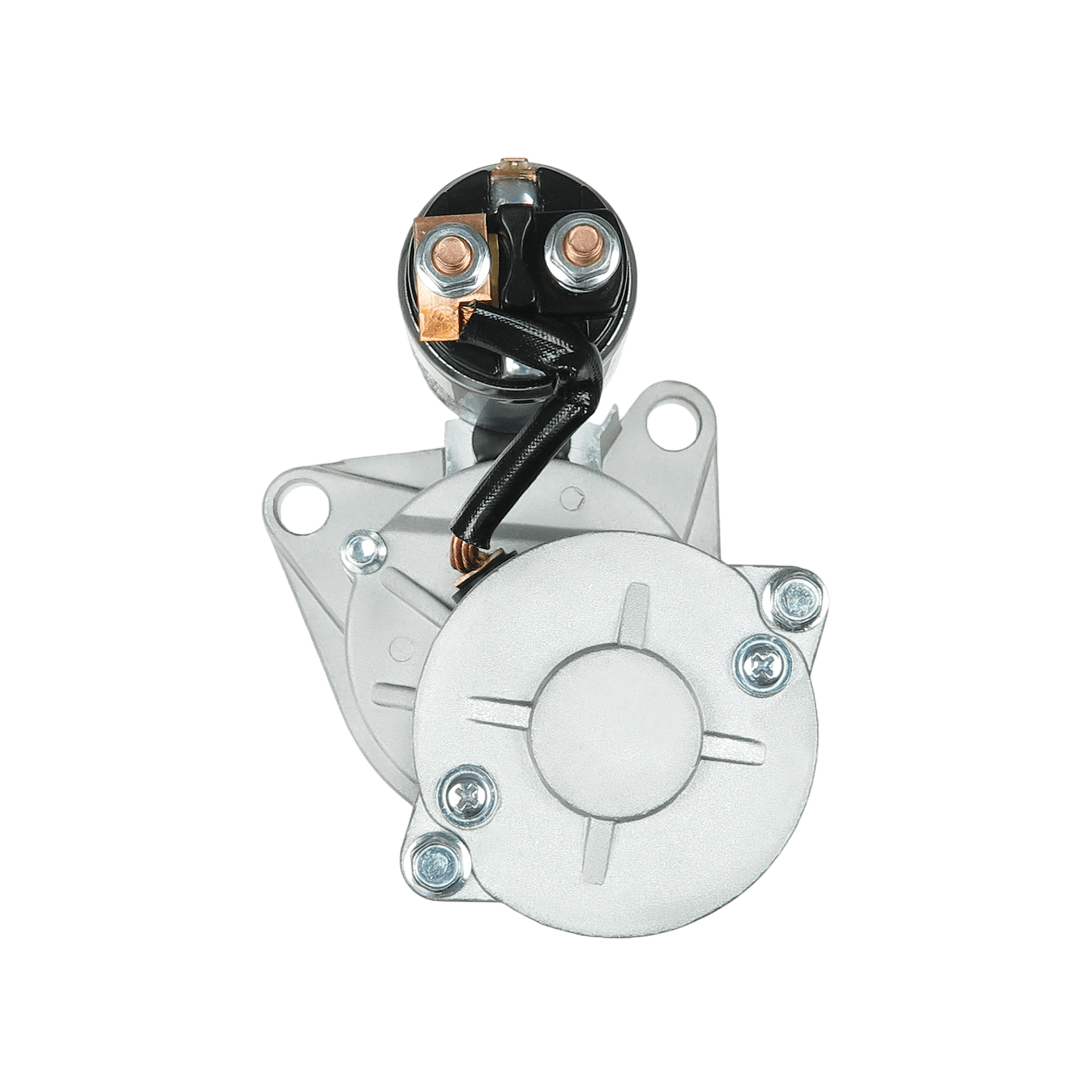

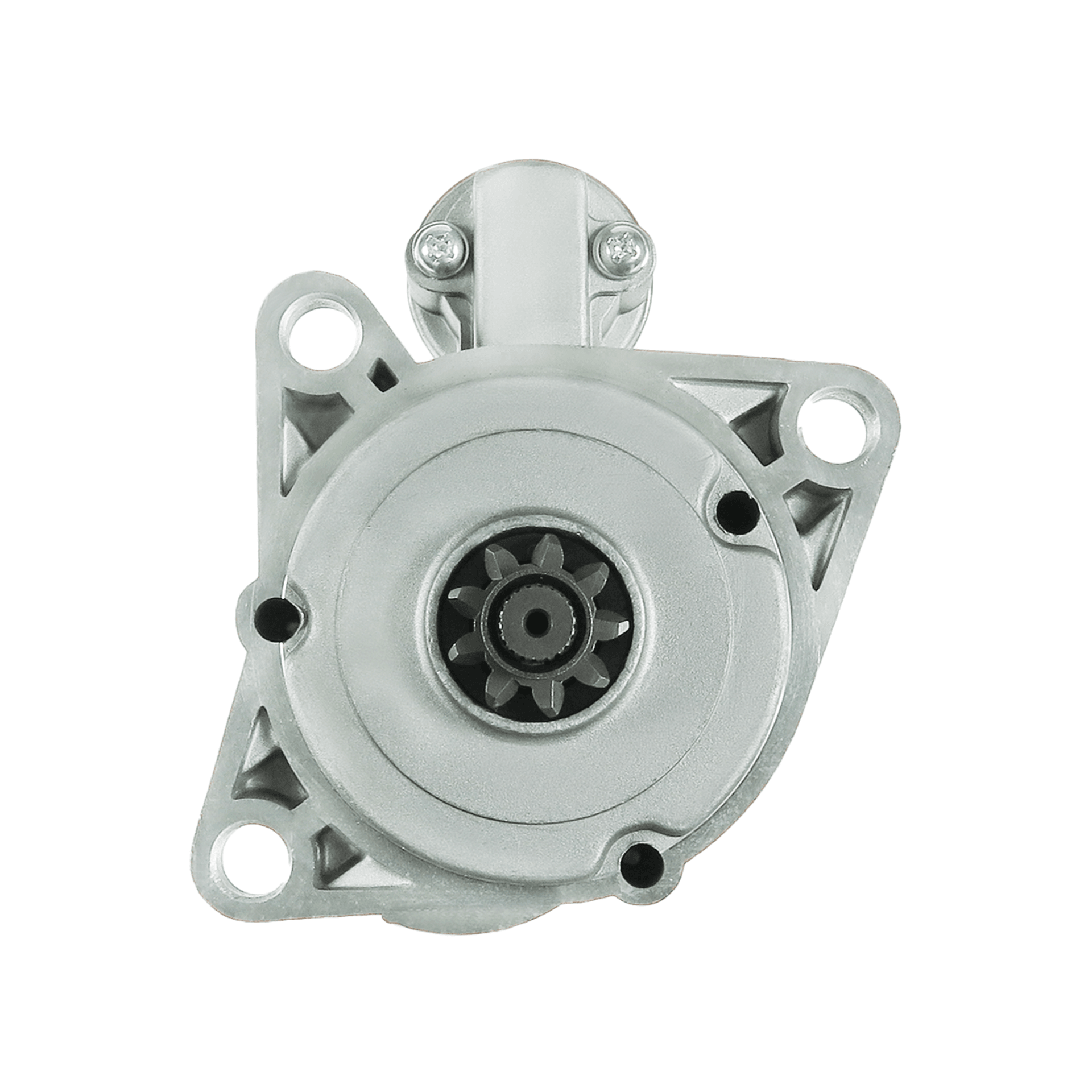

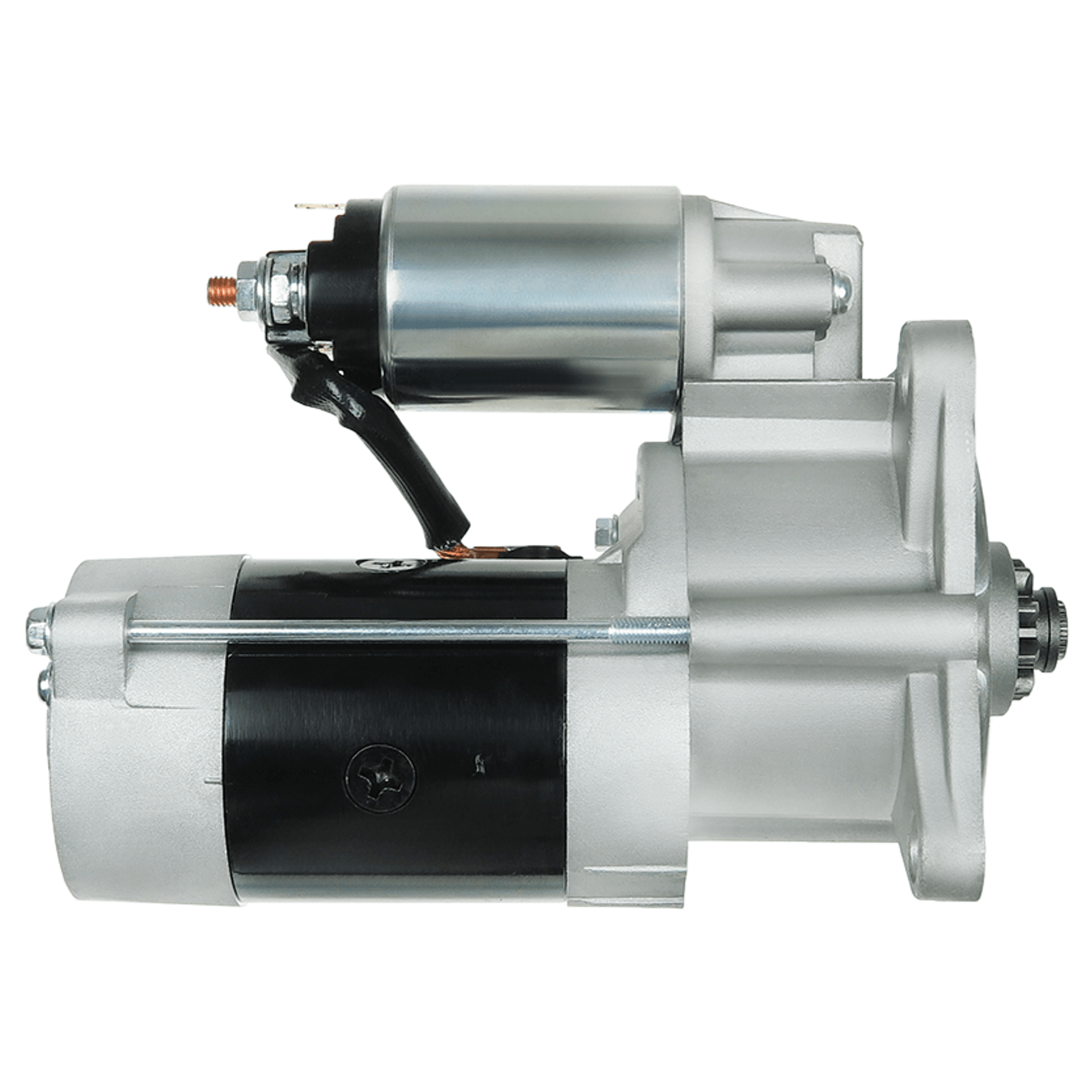

Starter XTLSTR3140
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
105 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
241 mm
Rotation
CW
Size A [ mm ]
100 mm
Size B [ mm ]
23.5 mm
No./teeth
9 qty
Power
2 kW
O.3 [ mm ]
105 mm
O.2 [ mm ]
145 mm
C.1 [ mm ]
14.00 mm
Voltage
12 V
C.3 [ mm ]
14.00 mm
C.2 [ mm ]
14.00 mm
View More
Starter XTLSTR3140
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
105 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
241 mm
Rotation
CW
Size A [ mm ]
100 mm
Size B [ mm ]
23.5 mm
No./teeth
9 qty
Power
2 kW
O.3 [ mm ]
105 mm
O.2 [ mm ]
145 mm
C.1 [ mm ]
14.00 mm
Voltage
12 V
C.3 [ mm ]
14.00 mm
C.2 [ mm ]
14.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR3140
Original Code
M2T54271
ME007433
ME007655
Equivalent Code (Vehicle Manufacturer)
130-20139 (ROBERT'S)
140.017.093 (PSH)
S130.418 (PSH)
20437291BN (REAL)
25-3116 (ELSTOCK)
254101 (KUHNER)
4857-18-400 (MAZDA)
6035192.0 (SANDO)
88214837 (POWERMAX)
91-27-3214 (WILSON)
CGB-23085 (AINDE)
CST35192AS (CASCO)
LRS01598 (LUCAS)
LRS1598 (LUCAS)
MAV371920 (SIOM)
STM1550 (KRAUF)
STR71322 (WOODAUTO)
STRE027 (3EFFE)
UD17034S (AS-PL)
UNIT BOM 103-236 (WAI / TRANSPO)
336218 (LOGISTIK)
Applications
Applications
ALL
CANTER
MITSUBISHI
Make
Vehicle
CANTER
2.7 D
MITSUBISHI
--
