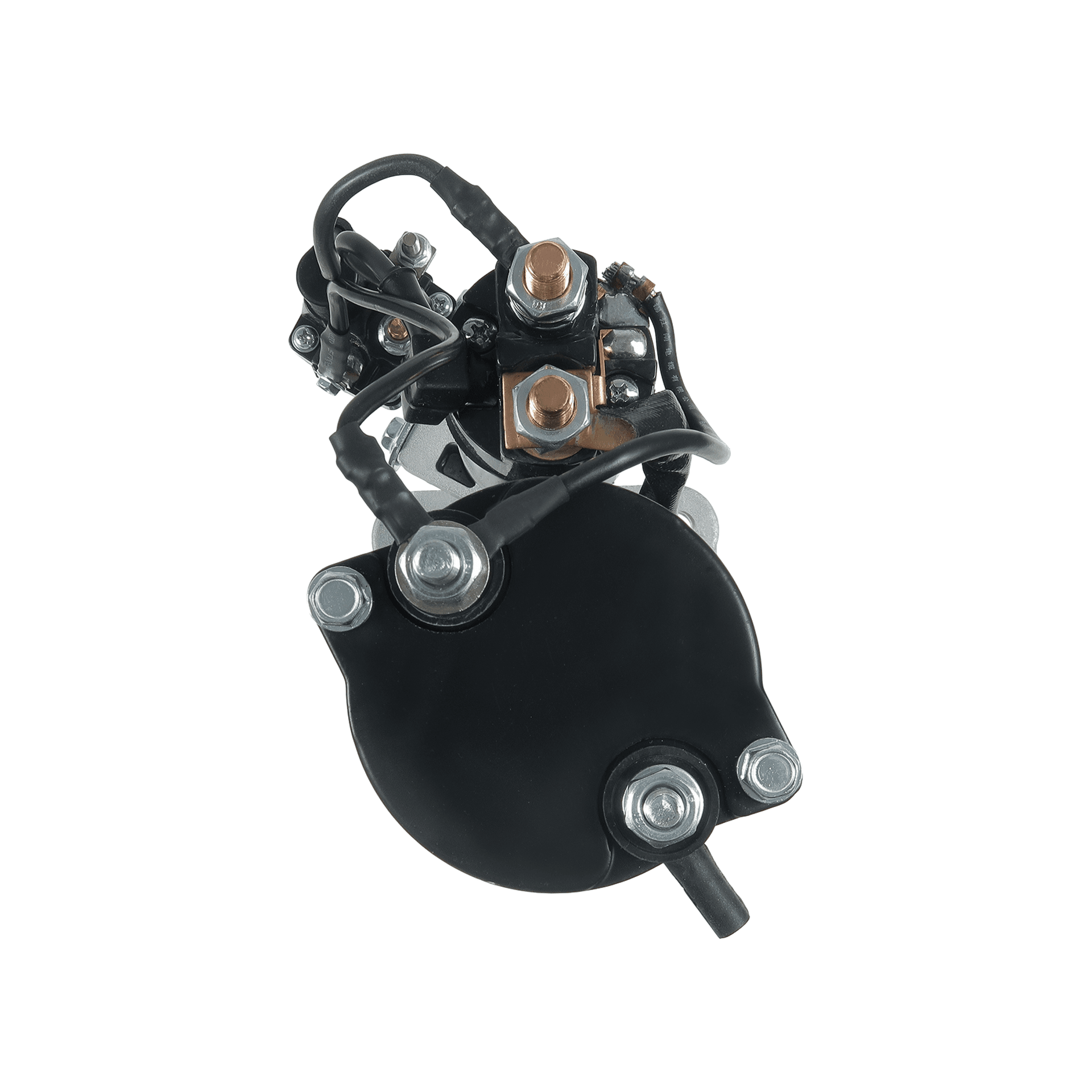

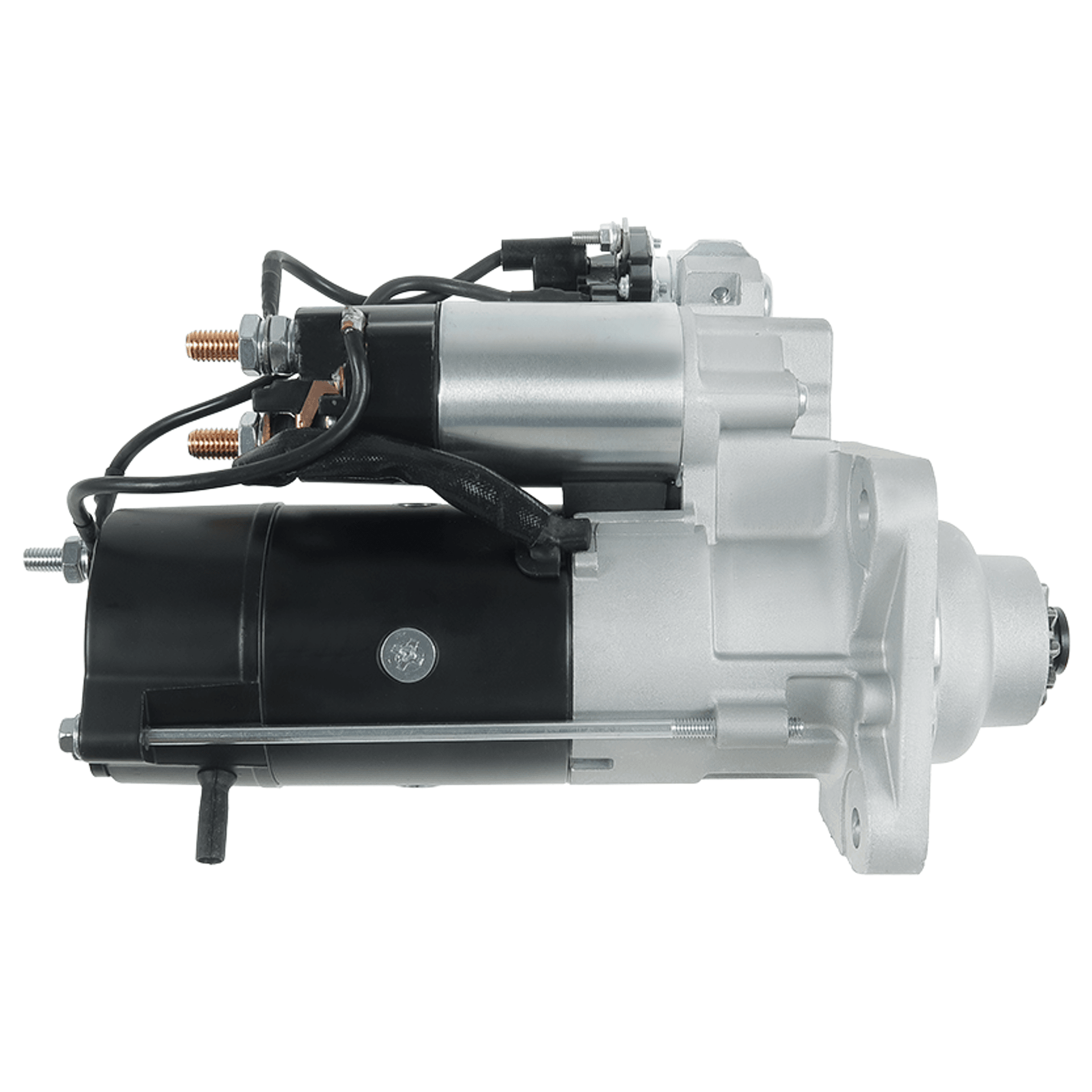

Starter XTLSTR3507
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
320 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
Power
3.6 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR3507
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
320 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
Power
3.6 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
Applications
ALL
VOLVO PENTA
Make
Vehicle
VOLVO PENTA
D6-350
VOLVO PENTA
D4-260
VOLVO PENTA
D4-180
VOLVO PENTA
D6-435
VOLVO PENTA
D6-280
VOLVO PENTA
D4-225
VOLVO PENTA
D6-330
VOLVO PENTA
D4-250
VOLVO PENTA
D6-370
VOLVO PENTA
D4-300
1
2
Original Code
21423488
30626
M008T55578
M8T55579
Equivalent Code (Vehicle Manufacturer)
114818 (CARGO)
F032114818 (CARGO)
200-25102 (DIXIE)
S-80459 (DIXIE)
21423488 (VOLVO)
3588491 (VOLVO)
3594614 (VOLVO)
3801296 (VOLVO)
WhatsApp inquiry
Email inquiry
Starter XTLSTR3507
3803938 (VOLVO)
3841359 (VOLVO)
874501 (VOLVO)
25-4309 (ELSTOCK)
254537 (KUHNER)
254537M (KUHNER)
30626N (WAI / TRANSPO)
6035210 (SANDO)
810.526.113 (PSH)
S135.517 (PSH)
S145.743 (PSH)
8308 (CEVAM)
CST35210 (CASCO)
CST35210AS (CASCO)
CST35210ES (CASCO)
CST35210GS (CASCO)
CST35210OS (CASCO)
CST35210RS (CASCO)
DRS0545 (DELCO)
DS1655 (DELCO)
LRS02636 (LUCAS)
LRS2636 (LUCAS)
STM3879 (KRAUF)
STR71265 (WOODAUTO)
STRL272 (3EFFE)
S5302S (AS-PL)
UD14924S (AS-PL)
UD14925S (AS-PL)
220553 (ERA)
ANM12765X (ANDEL)
STR5225 (ELECTROLOG)
