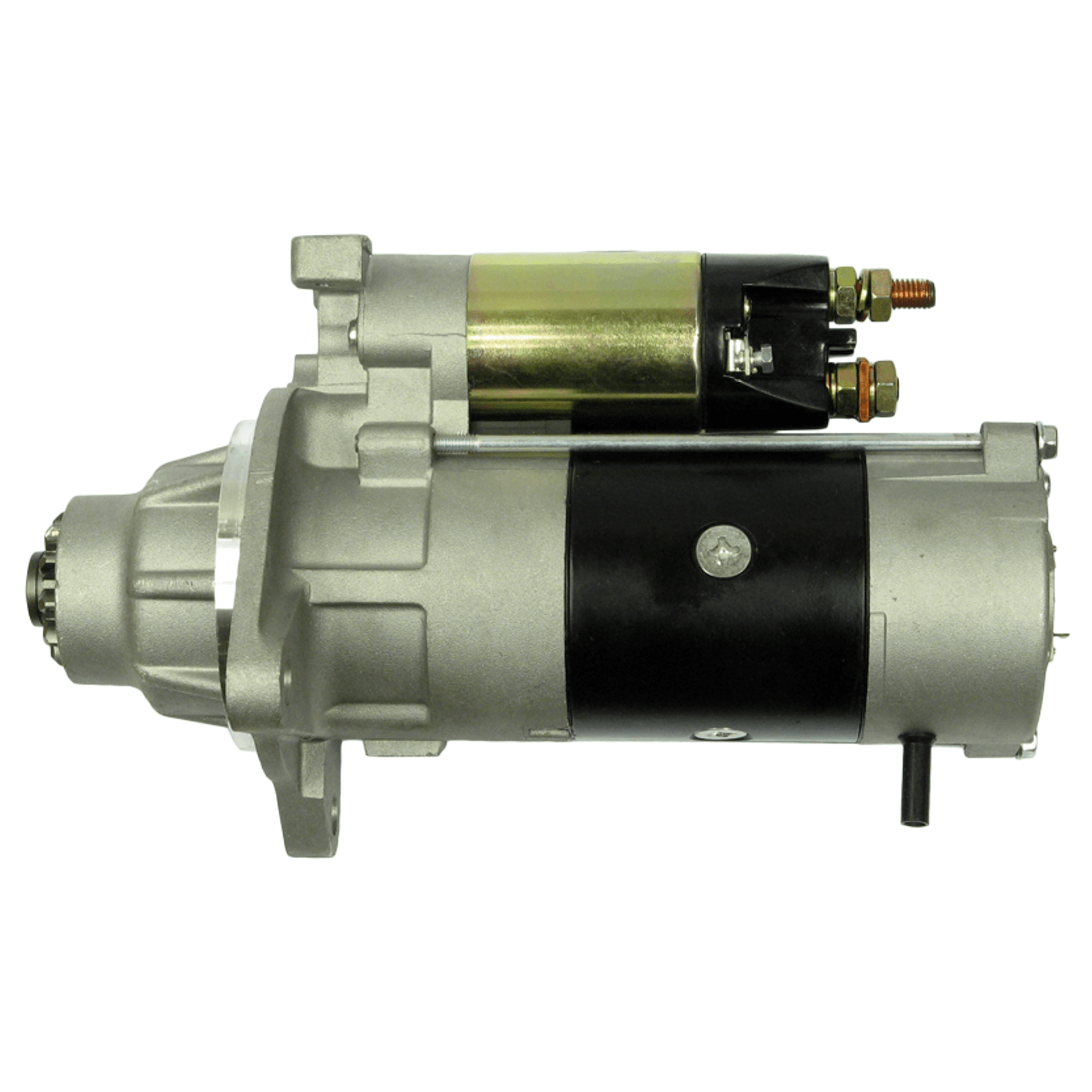

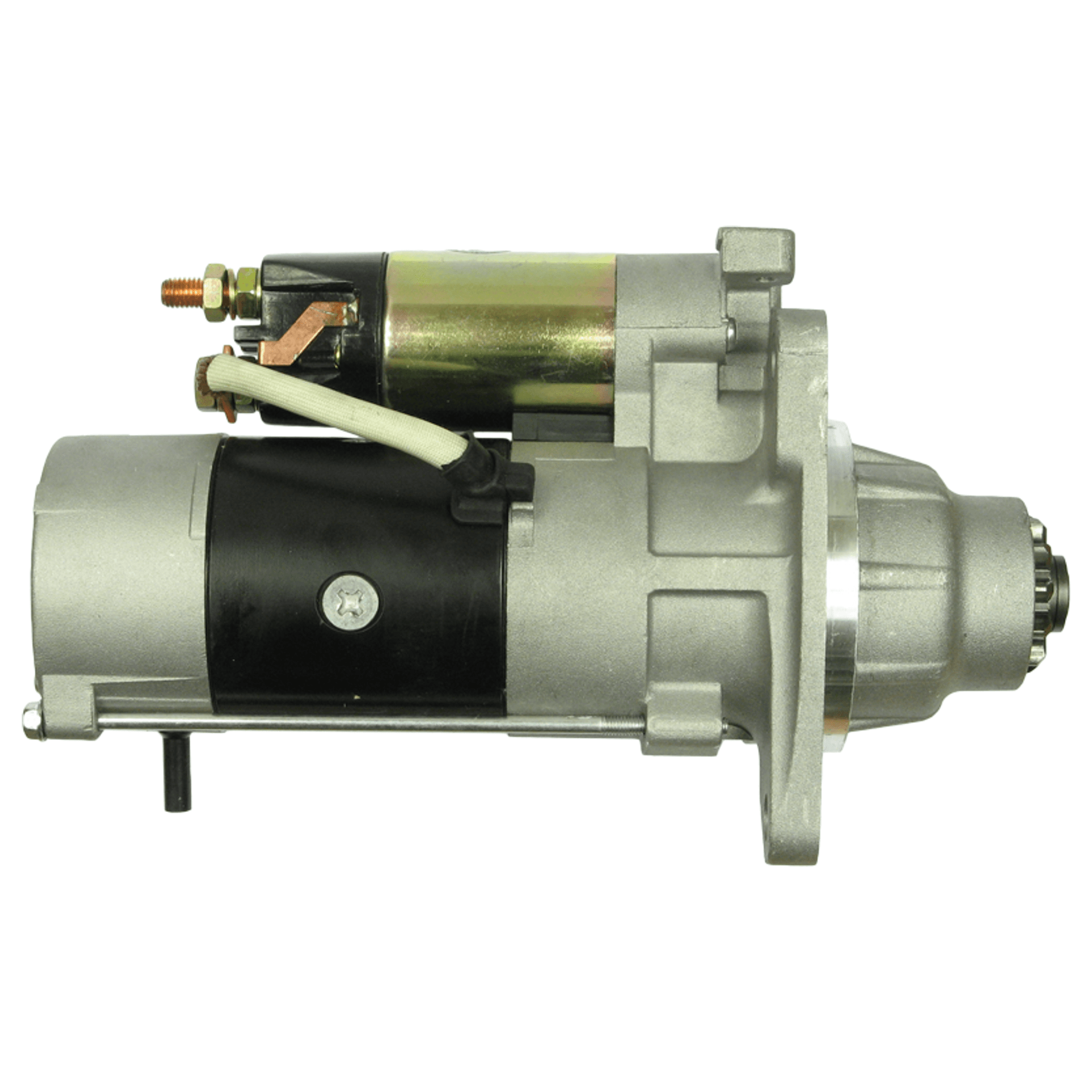

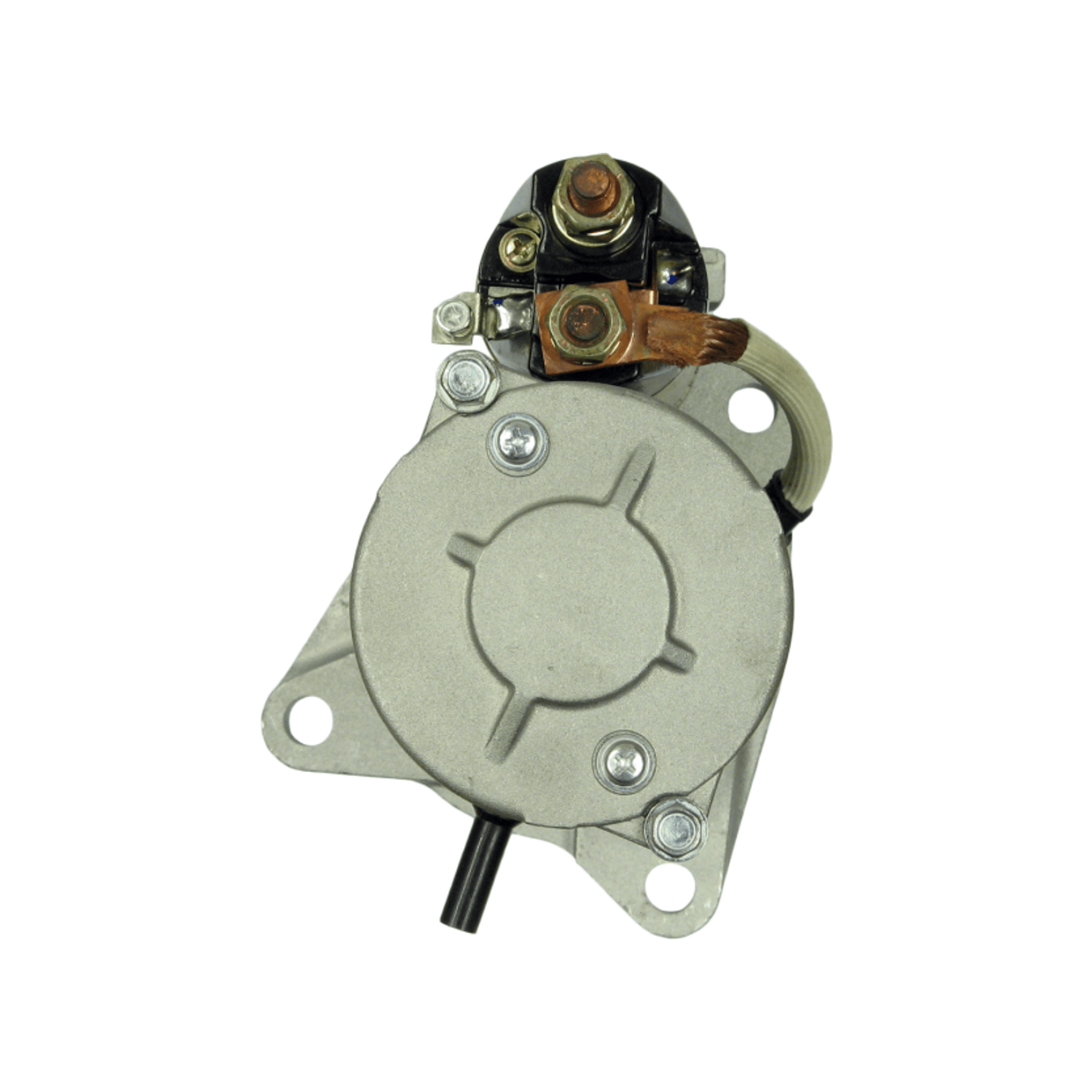

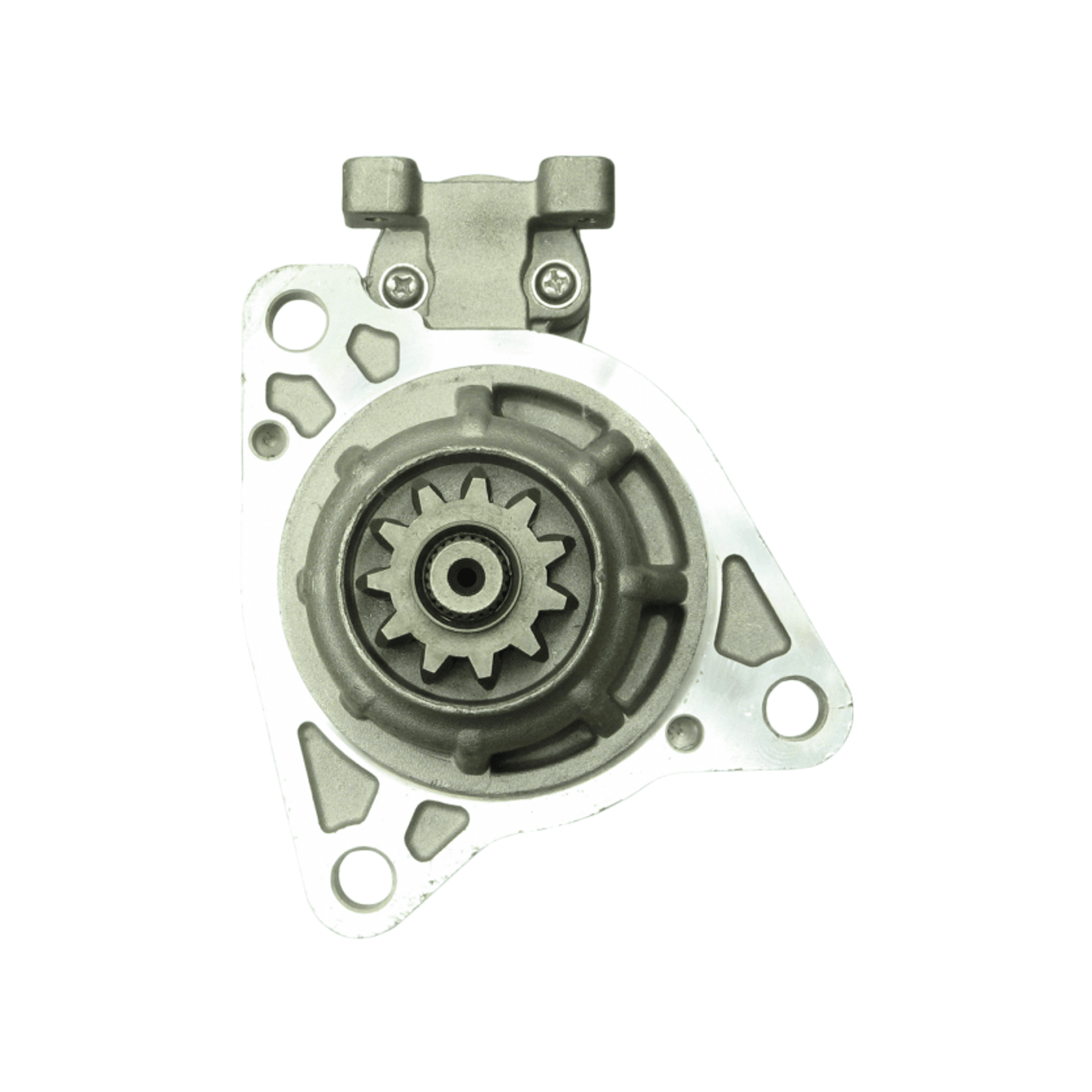

Starter XTLSTR3540
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
149 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
310 mm
Rotation
CW
Size A [ mm ]
100 mm
Size B [ mm ]
70 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
11 qty
Power
5.5 kW
O.3 [ mm ]
133.5 mm
O.2 [ mm ]
109.5 mm
C.1 [ mm ]
14.00 mm
Voltage
24 V
C.3 [ mm ]
14.00 mm
C.2 [ mm ]
14.00 mm
View More
Starter XTLSTR3540
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
149 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
310 mm
Rotation
CW
Size A [ mm ]
100 mm
Size B [ mm ]
70 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
11 qty
Power
5.5 kW
O.3 [ mm ]
133.5 mm
O.2 [ mm ]
109.5 mm
C.1 [ mm ]
14.00 mm
Voltage
24 V
C.3 [ mm ]
14.00 mm
C.2 [ mm ]
14.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR3540
Original Code
1-510-25W
18963
M9T60171
M9T60172
Equivalent Code (Vehicle Manufacturer)
MITM9T60171 (WOODAUTO)
STR71171 (WOODAUTO)
255309 (KUHNER)
255309M (KUHNER)
261.502.113.130 (PSH)
261.502.113.138 (PSH)
261.502.113.265 (PSH)
261.502.113.370 (PSH)
S132.339 (PSH)
S145.426 (PSH)
CST35693GS (CASCO)
45-4026 (ELSTOCK)
LRS02354 (LUCAS)
LRS2354 (LUCAS)
18963N (WAI / TRANSPO)
20437396BN (REAL)
6035693.1 (SANDO)
130-90103 (ROBERT'S)
130-90103N (ROBERT'S)
130-90103NOE (ROBERT'S)
DRS0324 (DELCO)
88213582 (POWERMAX)
STM3746 (KRAUF)
PRSS829 (3EFFE)
STRS829 (3EFFE)
STR5119 (ELECTROLOG)
Applications
Applications
ALL
MITSURISHI
Make
MITSURISHI
