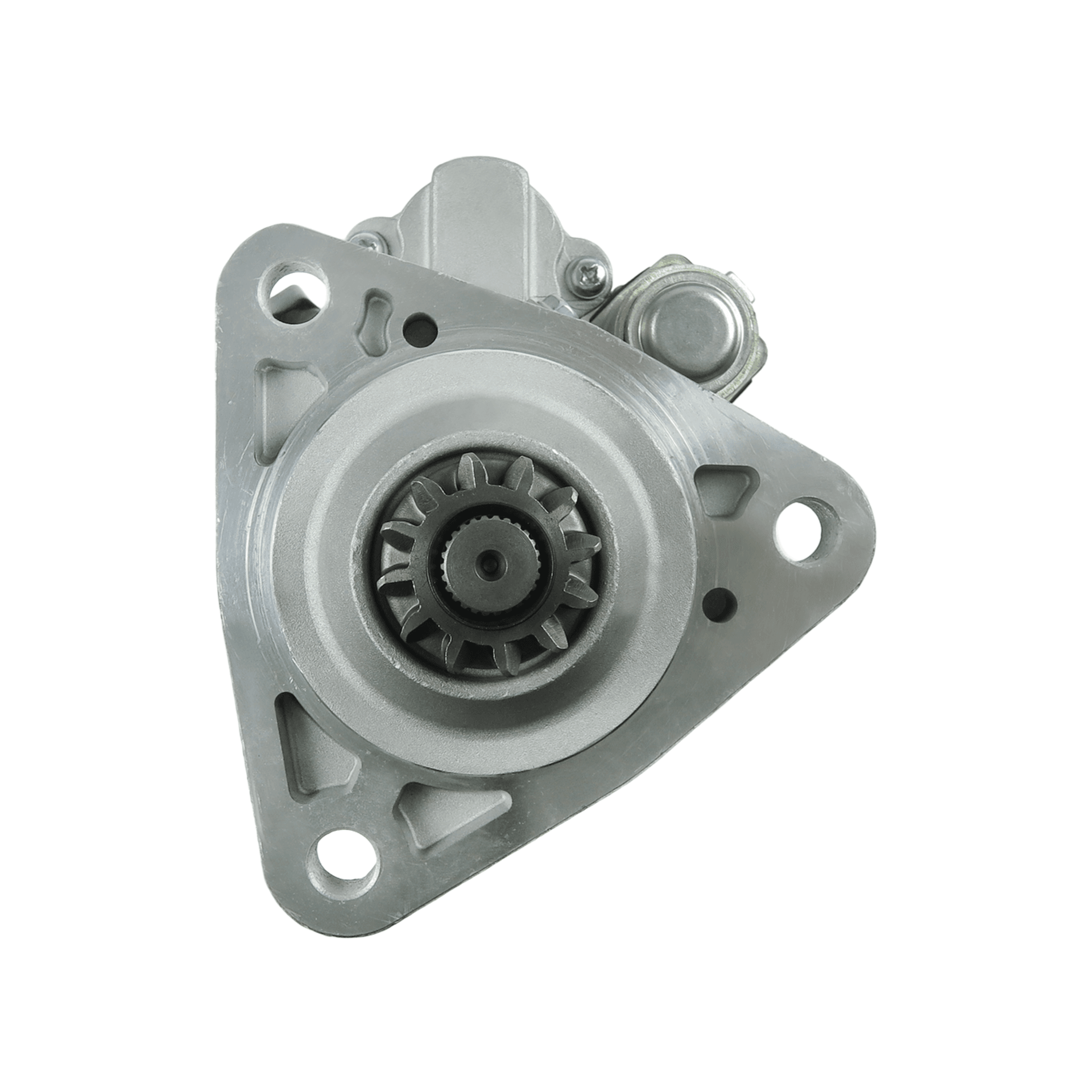

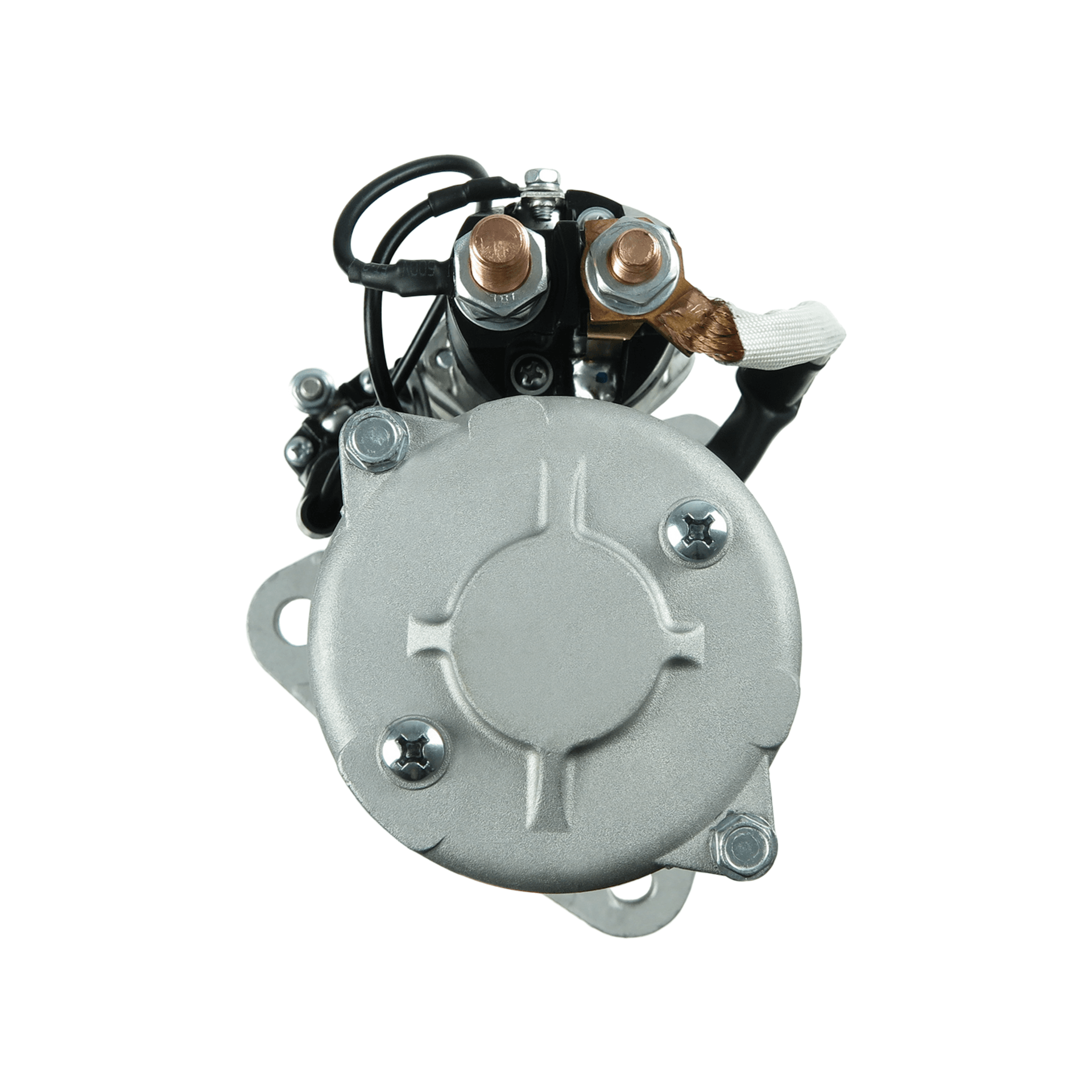

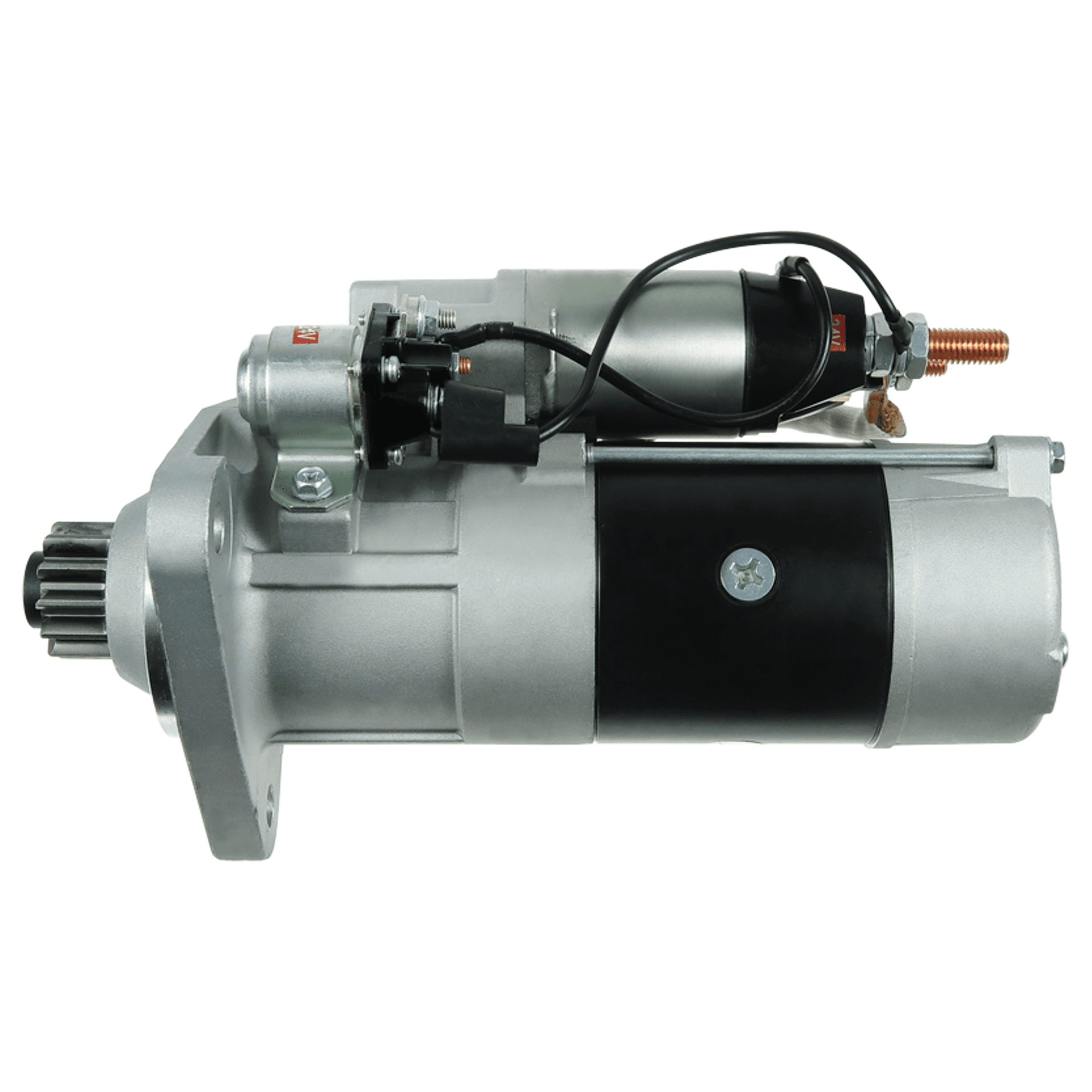

Starter XTLSTR3561
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
126 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
319 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
48 mm
No./teeth
12 qty
Power
6.5 kW
O.3 [ mm ]
126 mm
O.2 [ mm ]
126 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
View More
Starter XTLSTR3561
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
126 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
319 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
48 mm
No./teeth
12 qty
Power
6.5 kW
O.3 [ mm ]
126 mm
O.2 [ mm ]
126 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
Applications
Original Code
0071510201
M009T20171
M9T20171
Equivalent Code (Vehicle Manufacturer)
S5229 (AS-PL)
UD12688S (AS-PL)
CST35705GS (CASCO)
DRS0851 (DELCO)
GST83671-A (GPARTS)
GST83671MI-R (GPARTS)
SST83671-A (GPARTS)
SST83671MI-R (GPARTS)
255179 (KUHNER)
WhatsApp inquiry
Email inquiry
Starter XTLSTR3561
255179M (KUHNER)
255179P (KUHNER)
331842 (LOGISTIK)
0071510201 (MERCEDES)
0071514501 (MERCEDES)
A0071510201 (MERCEDES)
A0071514501 (MERCEDES)
20437507OE (REAL)
6035705.1 (SANDO)
MAV377050 (SIOM)
MITM9T20171 (WOODAUTO)
MITM9T20872 (WOODAUTO)
STR5358 (ELECTROLOG)
Home
Starter
Applications
ALL
MERCEDES-BENZ
Make
Vehicle
MERCEDES-BENZ
ACTROS
