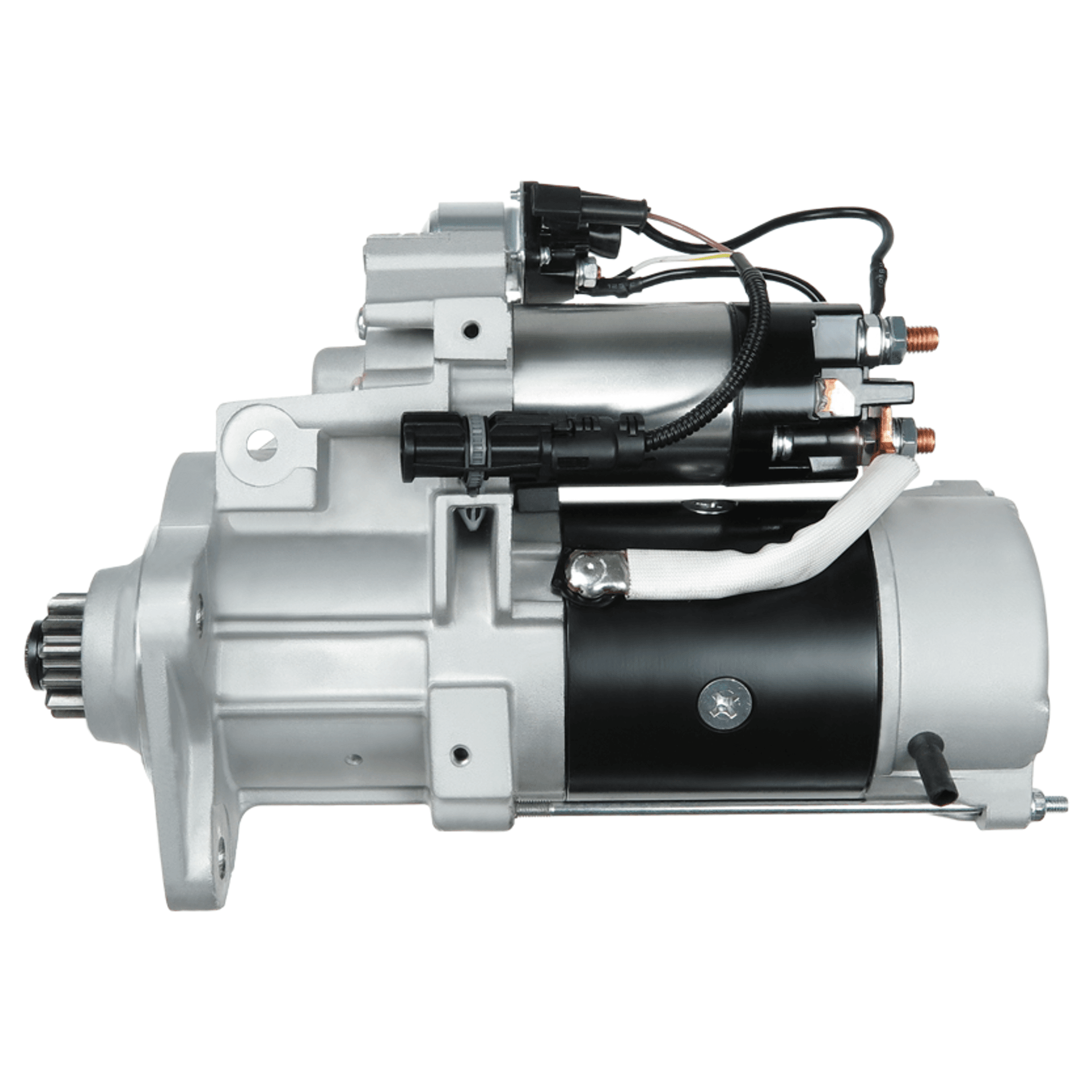

Starter XTLSTR3563
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
87.5 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
348 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
46 mm
No./teeth
12 qty
Power
7 kW
O.3 [ mm ]
143.5 mm
O.2 [ mm ]
129.5 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
View More
Starter XTLSTR3563
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
87.5 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
348 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
46 mm
No./teeth
12 qty
Power
7 kW
O.3 [ mm ]
143.5 mm
O.2 [ mm ]
129.5 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR3563
Original Code
51.26201-7233
M009T84171
M9T84171
Equivalent Code (Vehicle Manufacturer)
130-90180 (ROBERT'S)
20437176OE (REAL)
255554M (KUHNER)
45-5283 (ELSTOCK)
51.26201-7233 (MAN)
51.26201-9233 (MAN)
6035671.1 (SANDO)
8124 (CEVAM)
CST35671GS (CASCO)
LRS04120 (LUCAS)
LRS4120 (LUCAS)
MITM9T84171 (WOODAUTO)
MITM9T87571 (WOODAUTO)
STM1581 (KRAUF)
S5326S (AS-PL)
UD90464S (AS-PL)
MAV376710 (SIOM)
551.545.123.130 (PSH)
551.545.123.370 (PSH)
551.577.123.370 (PSH)
S133.271 (PSH)
S144.909 (PSH)
336538 (LOGISTIK)
116449 (CARGO)
F032116449 (CARGO)
72502246 (MAHLE)
MS941 (MAHLE)
11.139.194 (ISKRA / LETRIKA)
AZG4883 (ISKRA / LETRIKA)
IS9492 (ISKRA / LETRIKA)
HM95R3051SE (PRESTOLITE)
STR5396 (ELECTROLOG)
Applications
Applications
ALL
MAN
Make
Vehicle
MAN
TGA
