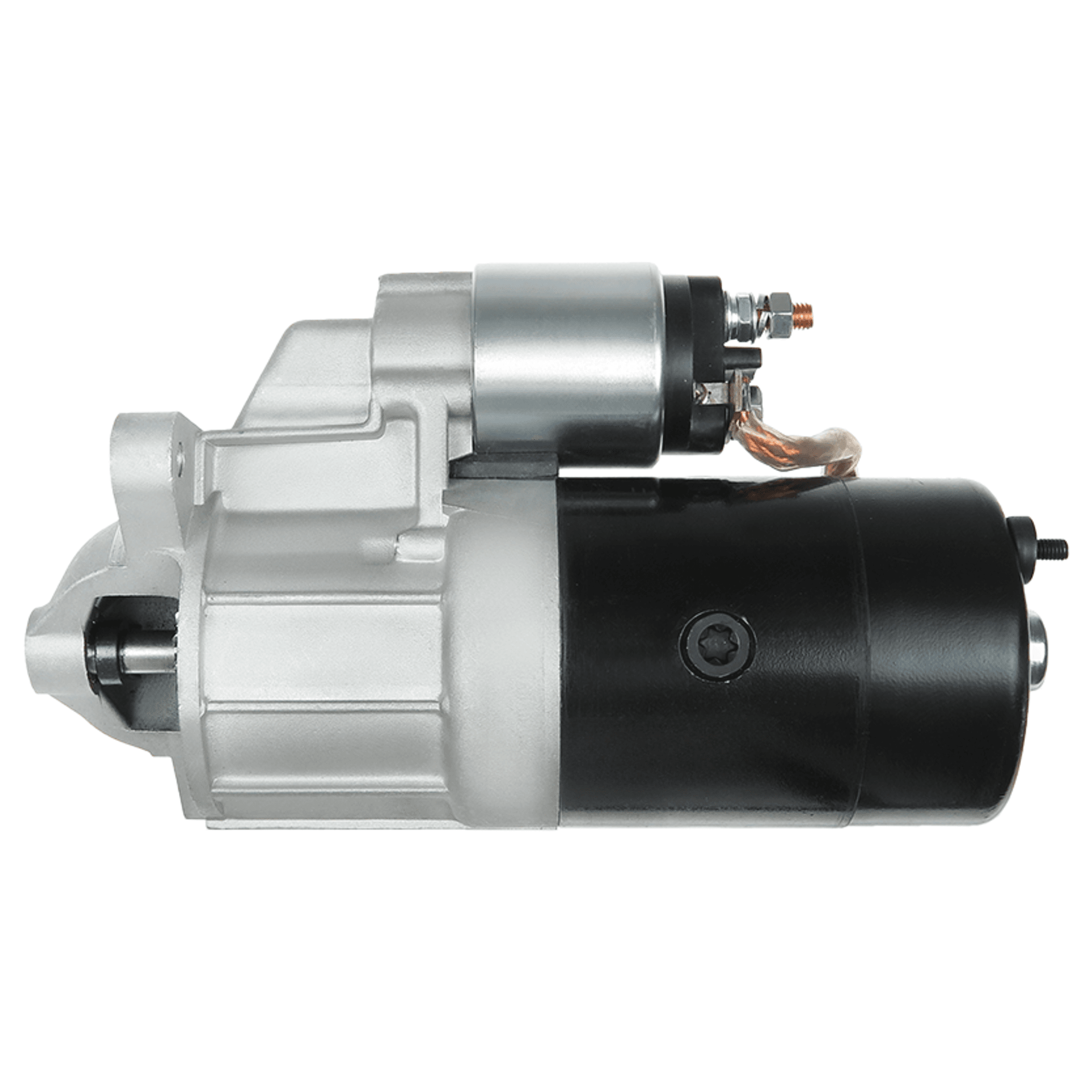

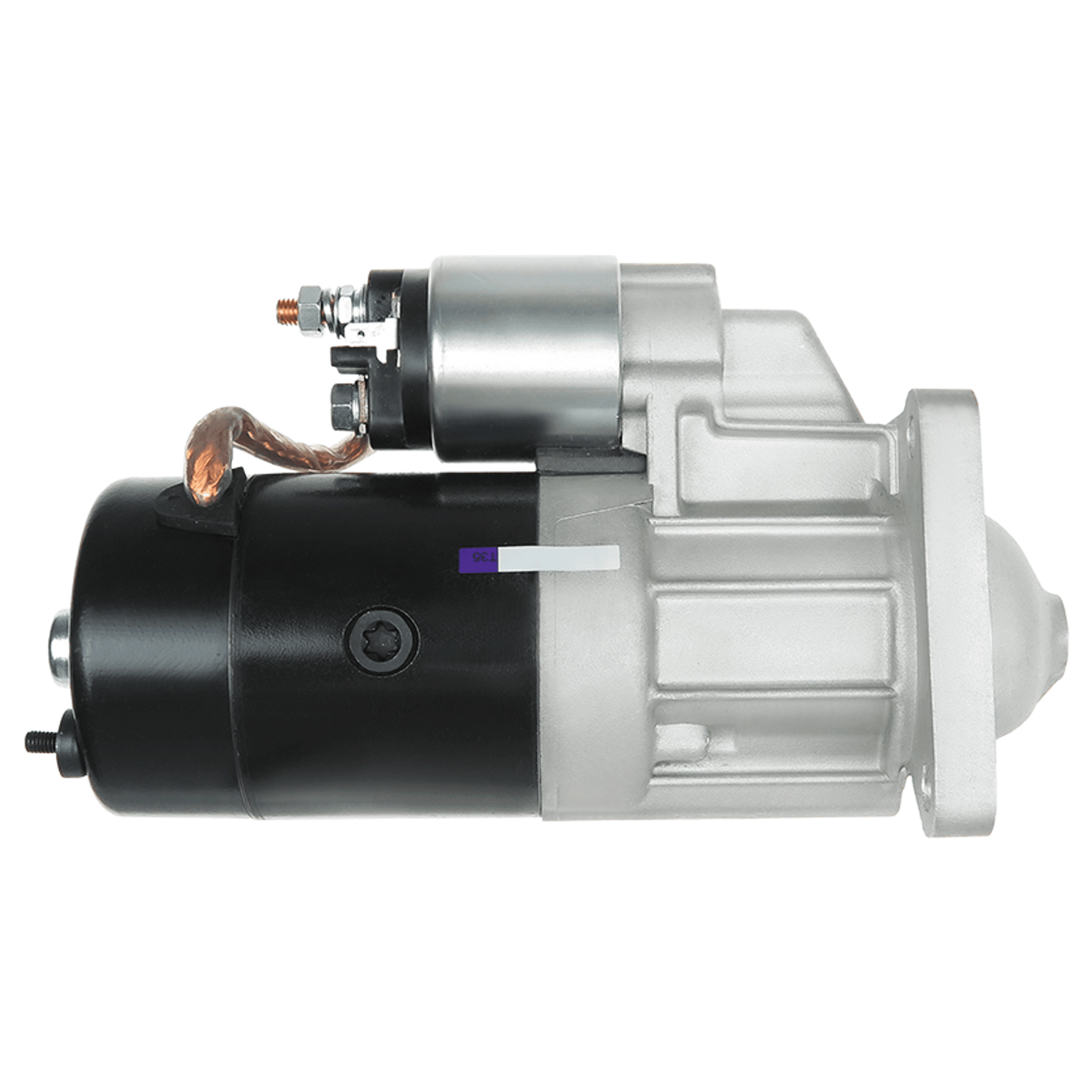

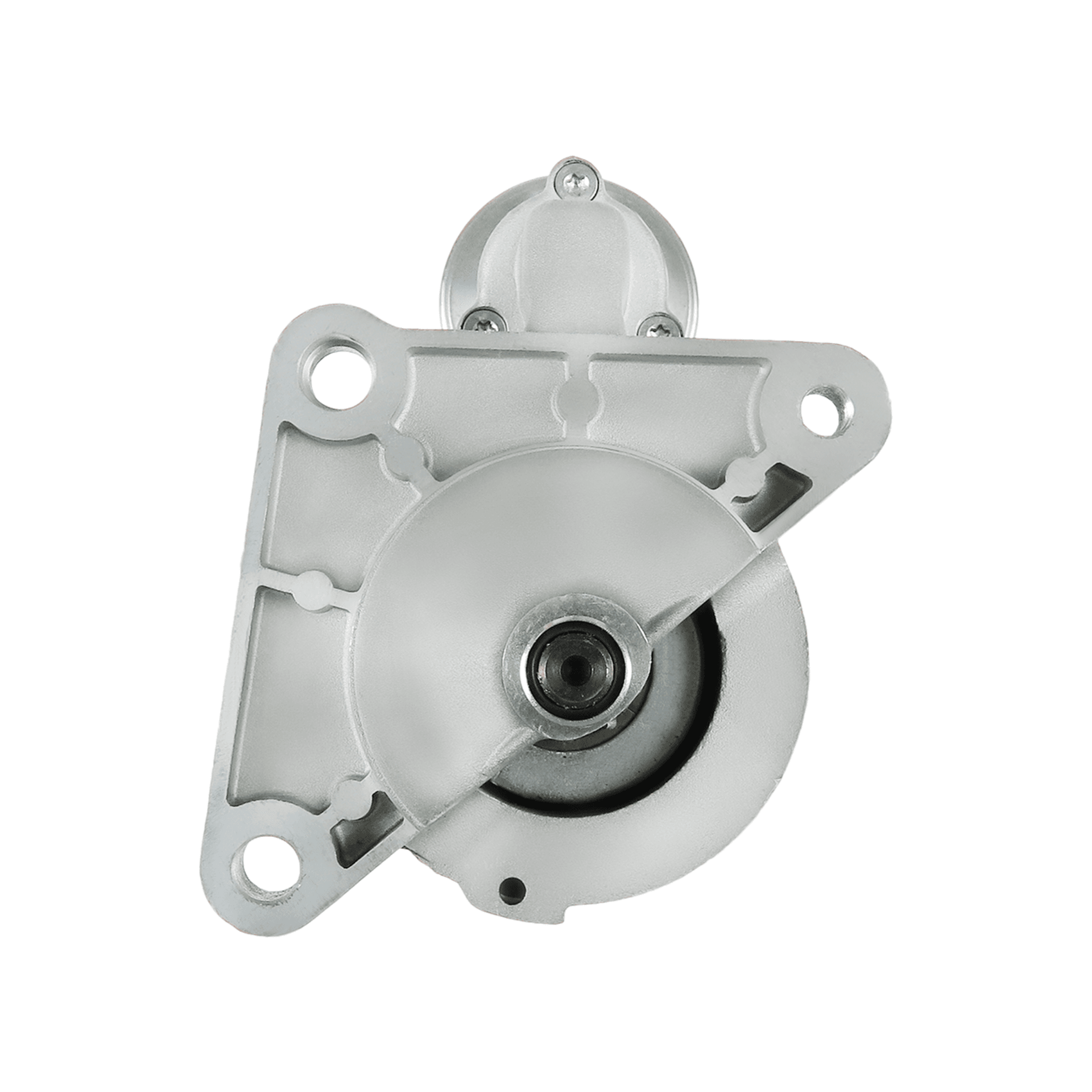

Starter XTLSTR4505
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
79 mm
No./mount. holes with thread [ qty. ]
1 qty
L.1 [ mm ]
227 mm
Rotation
CW
Size A [ mm ]
76 mm
Size B [ mm ]
48 mm
No./teeth
12 qty
Power
3.1 kW
O.3 [ mm ]
132 mm
O.2 [ mm ]
80 mm
C.1 [ mm ]
9.00 mm
Voltage
12 V
C.3 [ mm ]
M12x1.75 mm
C.2 [ mm ]
9.00 mm
View More
Starter XTLSTR4505
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
79 mm
No./mount. holes with thread [ qty. ]
1 qty
L.1 [ mm ]
227 mm
Rotation
CW
Size A [ mm ]
76 mm
Size B [ mm ]
48 mm
No./teeth
12 qty
Power
3.1 kW
O.3 [ mm ]
132 mm
O.2 [ mm ]
80 mm
C.1 [ mm ]
9.00 mm
Voltage
12 V
C.3 [ mm ]
M12x1.75 mm
C.2 [ mm ]
9.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR4505
Original Code
19721
432538
7701352055
D9R73
Equivalent Code (Vehicle Manufacturer)
202-31103 (DIXIE)
S-2156 (DIXIE)
255647 (KUHNER)
6675N (WAI / TRANSPO)
6675R (WAI / TRANSPO)
91-02-5926 (WILSON)
91-02-5926N (WILSON)
UD17057S (AS-PL)
Applications
Applications
ALL
RENAUIT
Make
RENAUIT
