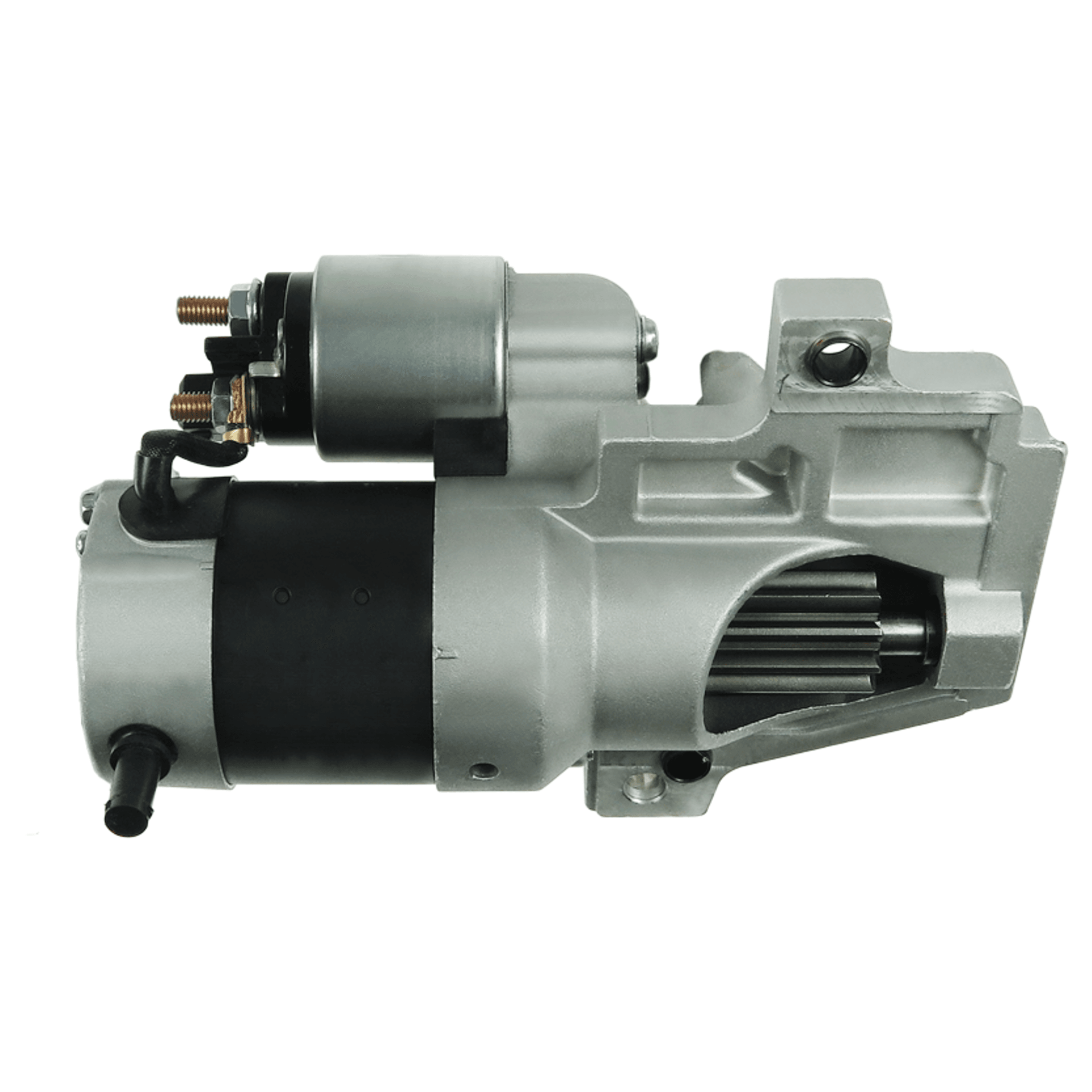

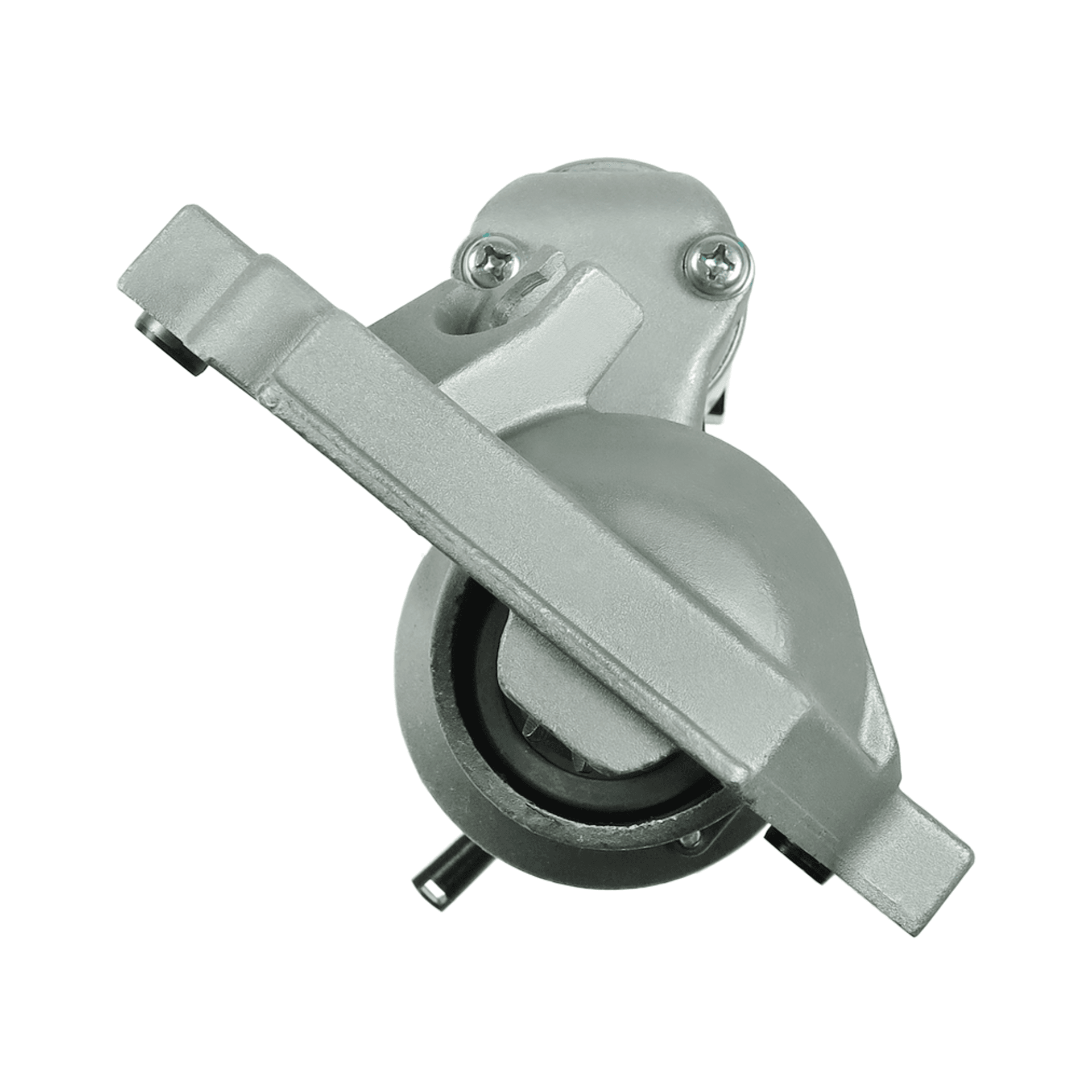

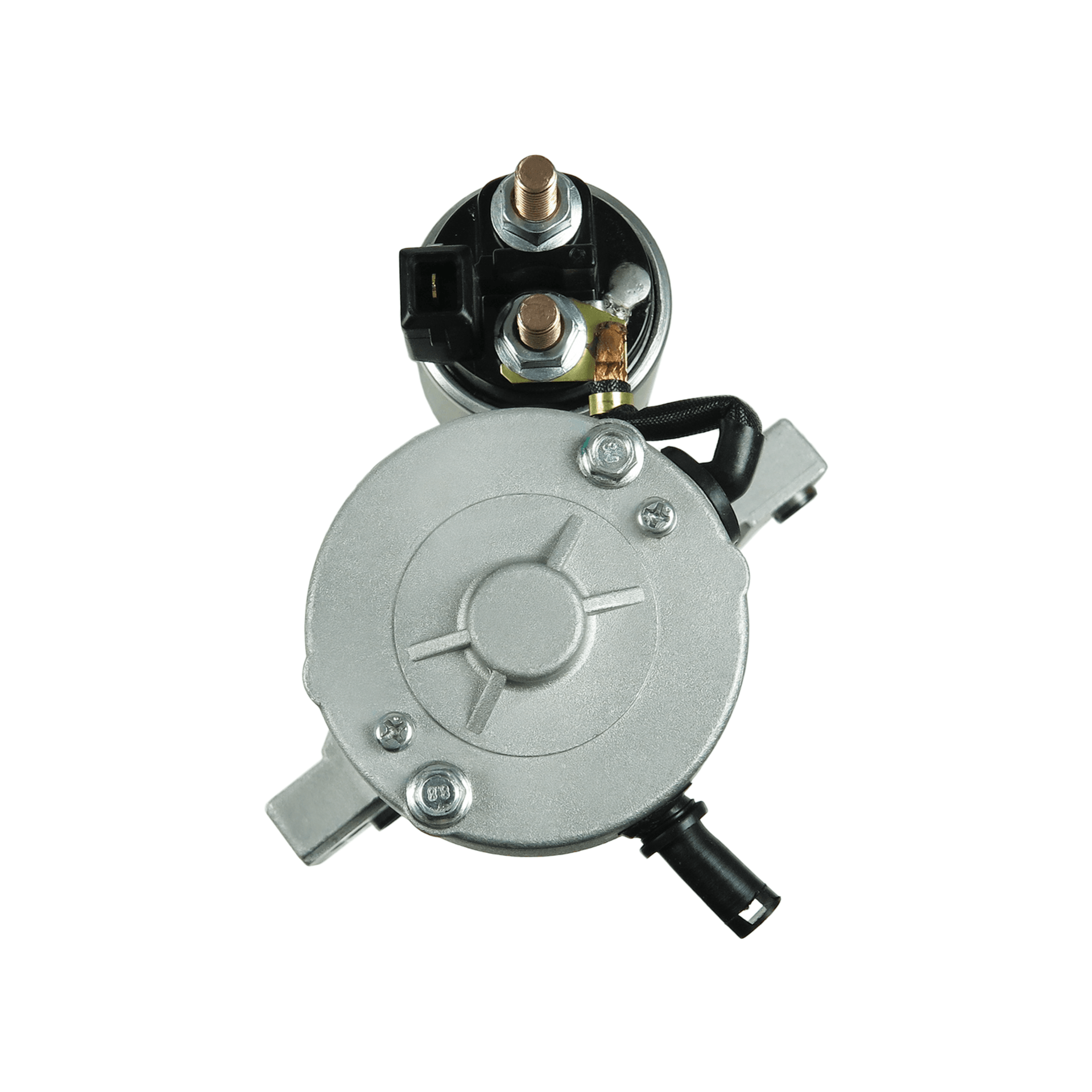

Starter XTLSTR5009
Download PDF
Send Inquiry
Voltage
12 V
Power
1.4 kW
Rotation
ACW
Teeth
10
Mounting Holes
2
Threaded Mounting Holes
0
Overall Length
234 mm
Starter XTLSTR5009
Download PDF
Send Inquiry
Voltage
12 V
Power
1.4 kW
Rotation
ACW
Teeth
10
Mounting Holes
2
Threaded Mounting Holes
0
Overall Length
234 mm
Reference Numbers
OE Numbers
VW
09A911023
Equivalent Code
3EFFE
PRSF561
STRF561
ANDEL
ANM12715X
AS-PL
S2065
UD12912S
AUTOELECTRO
AEY1641
CARGO
114308
F032114308
CASCO
CST20197
CST20197AS
CST20197ES
CST20197GS
CST20197OS
CST20197RS
CEVAM
3383
DELCO
17772
DRS0495
DENSO
DSN957
DIXIE
S-80061
ELECTROLOG
STR3202
ELSTOCK
25-3173
ERA
220344
HC PARTS
CS1477
HITACHI
2506906
S114-875
KUHNER
254542H
LOGISTIK
336063
LUCAS
LRS01641
LRS1641
MAGNETI MARELLI
063280084010
944280800860
REAL
20445791RC
SANDO
6020197
SIDAT
S12HT0627A2
STARDAX
STX201269
VW
09A911023X
WAI
17865N
17865R
300.539.102
S132.270
S145.240
WILSON
91-25-1189
WOODAUTO
DENDSN957
HITS114-875
Applications
Home
Starter
Starter XTLSTR5009
Related Products
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
16.5 mm
Clamp: Motor
M8x1.25 mm
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
14.8 mm
Clamp: Motor
M8x1.25 mm

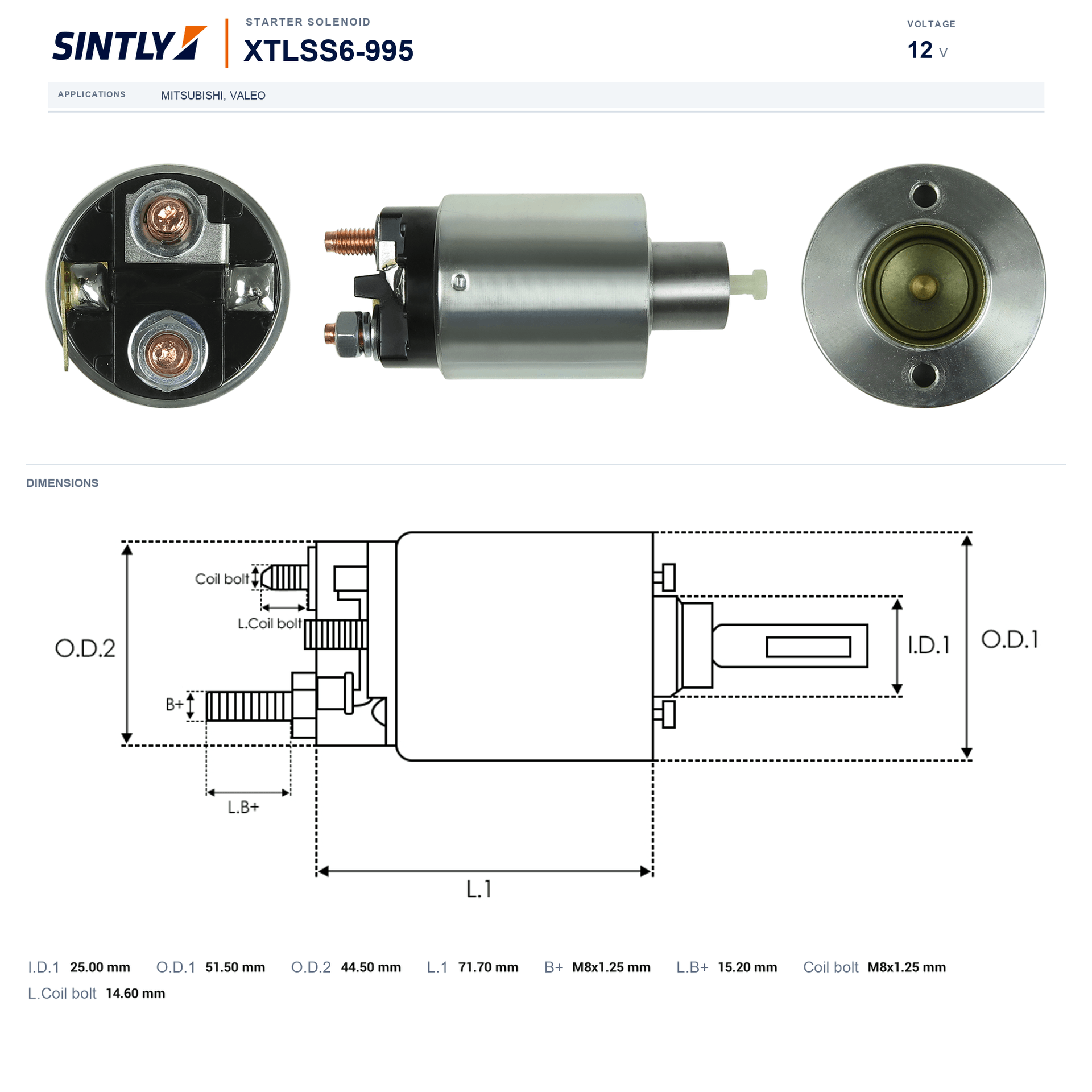

Starter Solenoid XTLSS6-995
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
15.2 mm
Clamp: Motor
M8x1.25 mm
Starter Solenoid XTLSS1-698
Starter Solenoid XTLSS4-698
Applications
VW
SHARAN (7M8, 7M9, 7M6)
1.8 T 20V
09/1997-03/2010
1.8 T 20V
09/1997-03/2010
BORA I (1J2)
1.8 T
05/2000-05/2005
1.8 T
05/2000-05/2005
1.8 T
05/2000-05/2005
1.8 T
05/2000-05/2005
1.8 T
05/2000-05/2005
BORA Variant (1J6)
1.8 T
05/2000-05/2005
1.8 T
05/2000-05/2005
1.8 T
05/2000-05/2005
1.8 T
05/2000-05/2005
1.8 T
05/2000-05/2005
