Starter XTLSTR5253 | SINTLY
Previous slide
Next slide

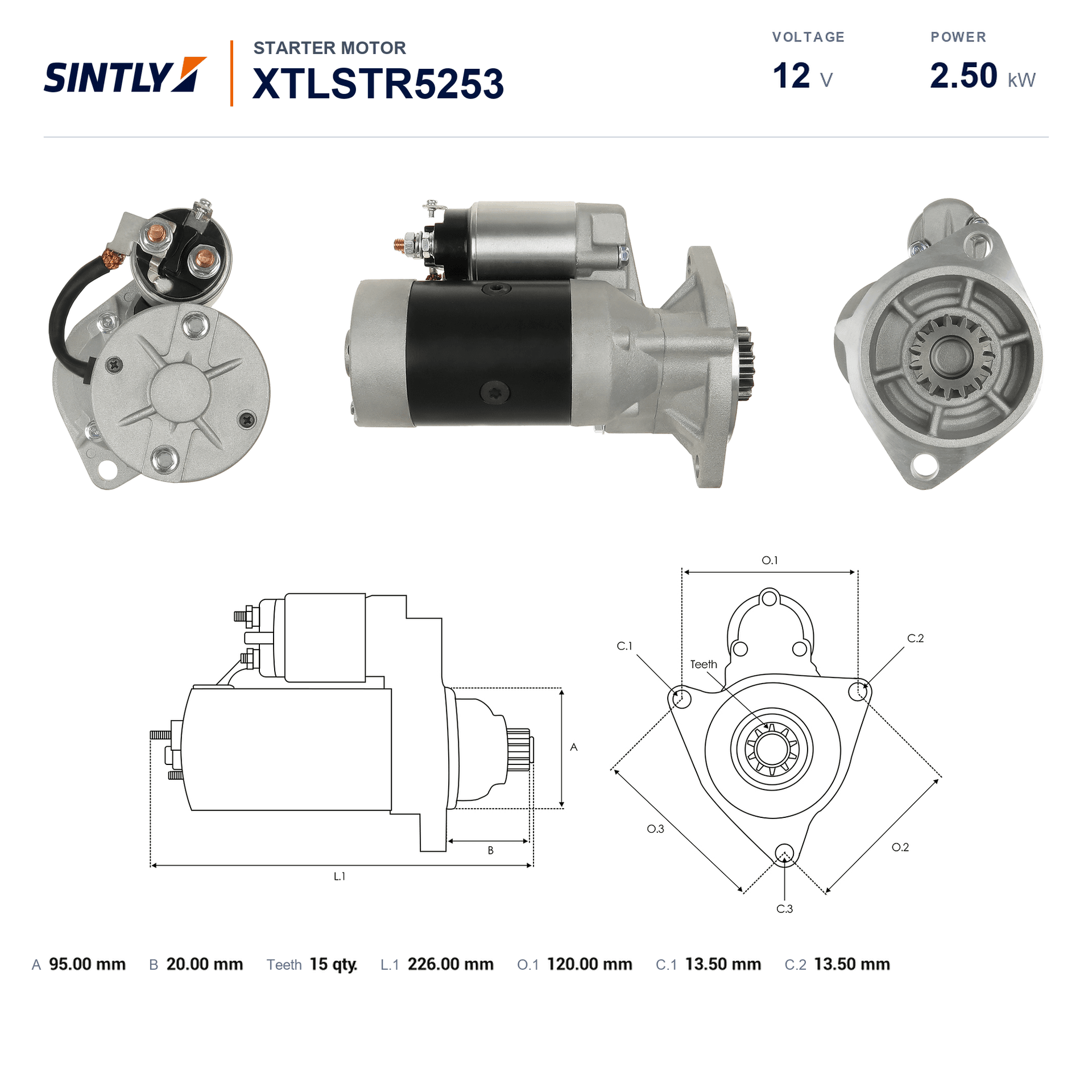

Starter XTLSTR5253
Download PDF
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
120 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
226 mm
Rotation
CW
Size A [ mm ]
95 mm
Size B [ mm ]
20 mm
No./teeth
15 qty
No./teeth (fits into) [ qty. ]
15 qty
Power
2.5 kW
C.1 [ mm ]
13.50 mm
Voltage
12 V
C.2 [ mm ]
13.50 mm
View More
Starter XTLSTR5253
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
120 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
226 mm
Rotation
CW
Size A [ mm ]
95 mm
Size B [ mm ]
20 mm
No./teeth
15 qty
No./teeth (fits into) [ qty. ]
15 qty
Power
2.5 kW
C.1 [ mm ]
13.50 mm
Voltage
12 V
C.2 [ mm ]
13.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR5253
Original Code
121256-77010
18051
S13-132
S13-294
Equivalent Code (Vehicle Manufacturer)
PRSL193 (3EFFE)
STRL193 (3EFFE)
AEY1308 (AUTOELECTRO)
112374 (CARGO)
F032112374 (CARGO)
CST20148AS (CASCO)
CST20148GS (CASCO)
8800 (CEVAM)
DS1162 (DELCO)
240-20104 (DIXIE)
S-8488 (DIXIE)
25-2454 (ELSTOCK)
220798 (ERA)
SG2029 (GHIBAUDI)
254068 (KUHNER)
254068H (KUHNER)
LRS01501 (LUCAS)
LRS1501 (LUCAS)
8213445 (POWERMAX)
88213445 (POWERMAX)
20513065 (PRESTOLITE)
980.508.152.080 (PSH)
980.508.152.088 (PSH)
980.508.152.089 (PSH)
980.508.152.270 (PSH)
980.508.152.515 (PSH)
S136.261 (PSH)
S145.642 (PSH)
20445841BN (REAL)
20445841OE (REAL)
104-10130 (ROBERT'S)
104-10130N (ROBERT'S)
S2044 (AS-PL)
6020148.0 (SANDO)
6020148.1 (SANDO)
18051N (WAI / TRANSPO)
19709N (WAI / TRANSPO)
91-25-1072 (WILSON)
91-25-1072N (WILSON)
HITS13-294 (WOODAUTO)
STR23008 (WOODAUTO)
121256-77010 (YANMAR)
121400-77010 (YANMAR)
129130-77010 (YANMAR)
129136-77010 (YANMAR)
129136-77011 (YANMAR)
129137-77012 (YANMAR)
129400-77010 (YANMAR)
129400-77011 (YANMAR)
129400-77012 (YANMAR)
12977012 (YANMAR)
171058-77010 (YANMAR)
CGB-23247HI (AINDE)
AM875415 (JOHN DEERE)
AM878189 (JOHN DEERE)
S12HT0815A2 (SIDAT)
ANM12272X (ANDEL)
336326 (LOGISTIK)
STR3251 (ELECTROLOG)
STR3266 (ELECTROLOG)
STR3273 (ELECTROLOG)
ASM1643 (APEC)
NPANSM1643 (NAPA)
Applications
Applications
ALL
YANMAR
Make
YANMAR
