Starter XTLSTR5265 | SINTLY
Previous slide
Next slide

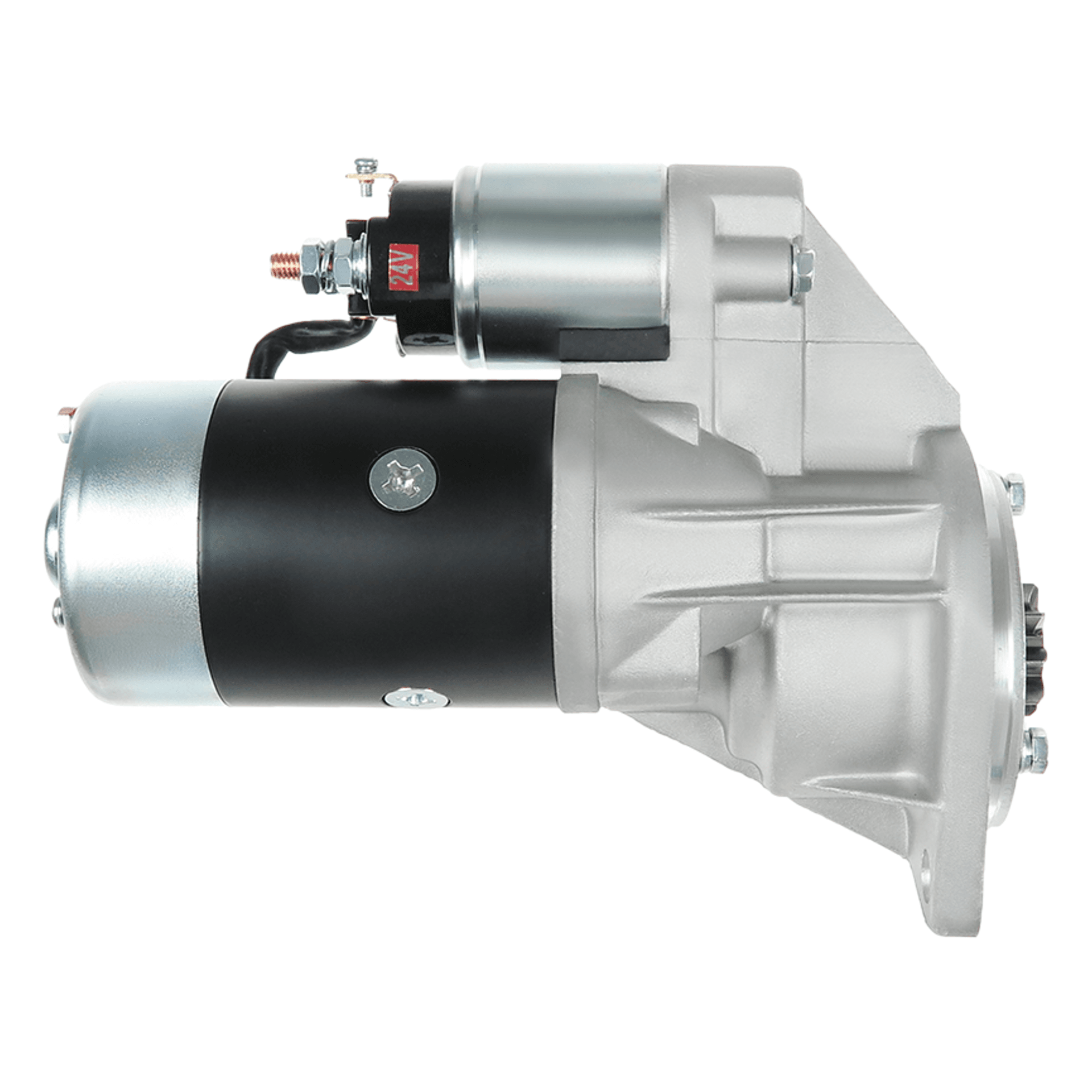

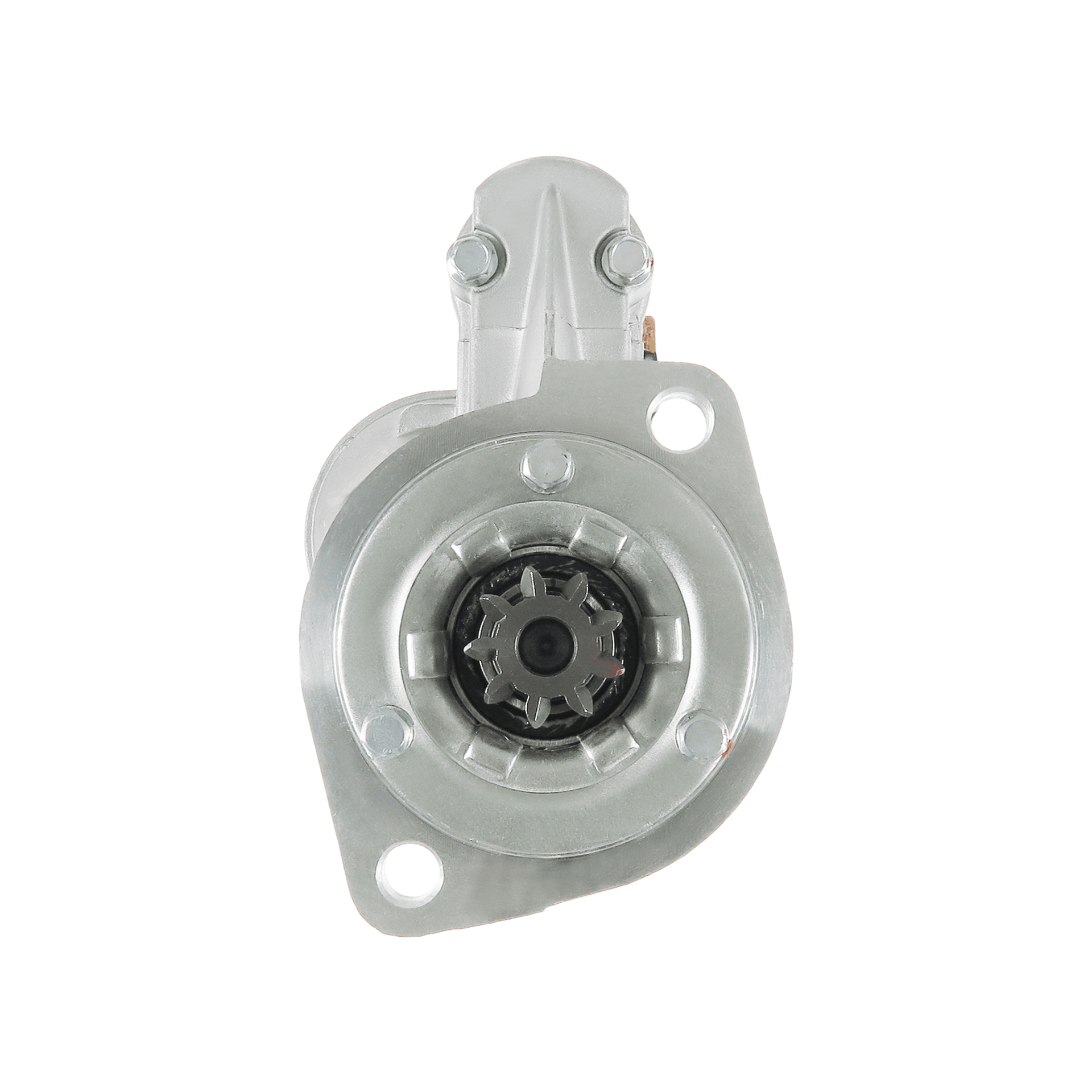

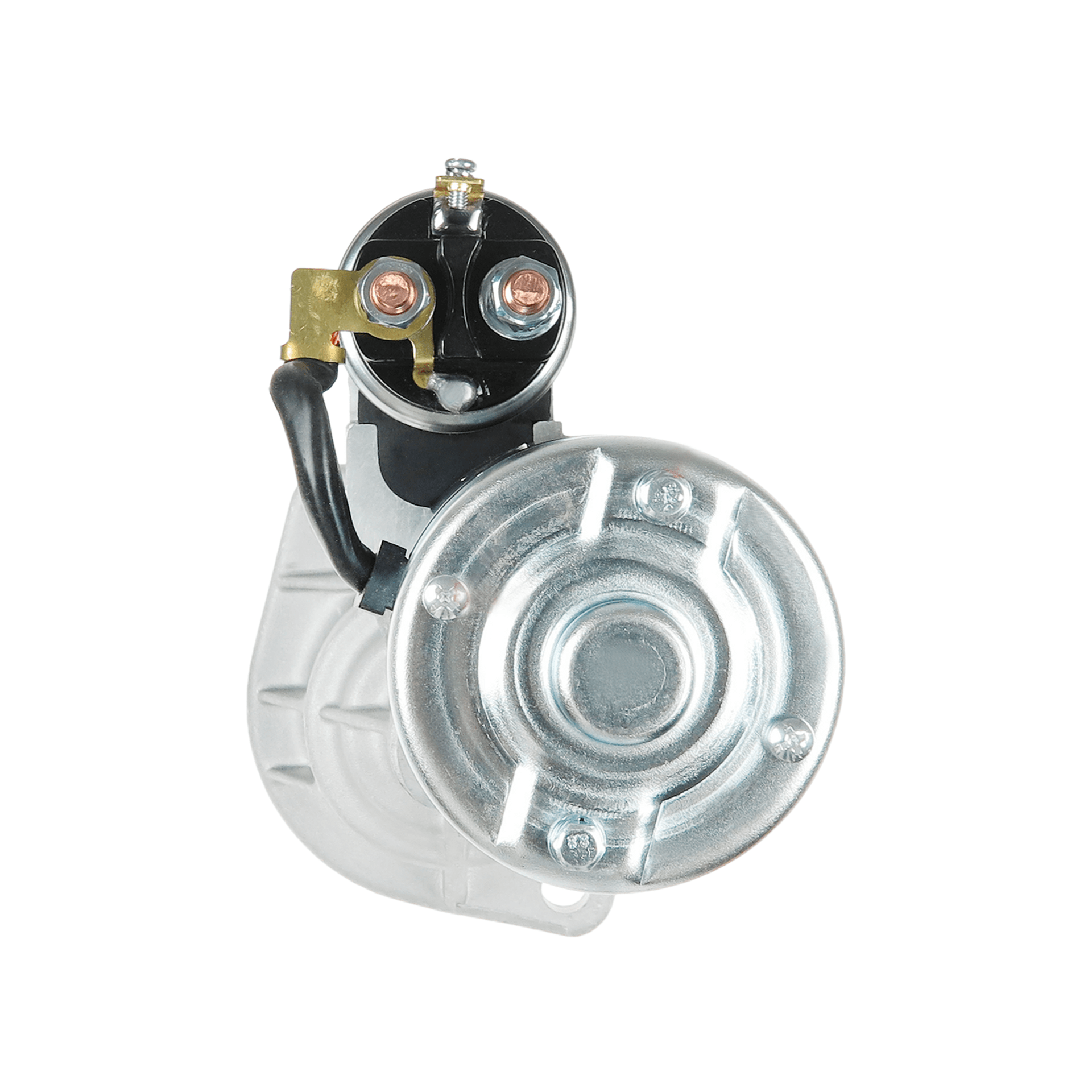

Starter XTLSTR5265
Download PDF
Send Inquiry
Voltage
24 V
Power
3.5 kW
Rotation
CW
Teeth
9
Mating Teeth
9
Mounting Holes
2
Threaded Mounting Holes
0
Overall Length
246 mm
Starter XTLSTR5265
Download PDF
Send Inquiry
Voltage
24 V
Power
3.5 kW
Rotation
CW
Teeth
9
Mating Teeth
9
Mounting Holes
2
Threaded Mounting Holes
0
Overall Length
246 mm
Reference Numbers
OE Numbers
ISUZU
5811001282
Equivalent Code
3EFFE
STRW309
AINDE
CGB-23219
ANDEL
ANM15439X
AS-PL
S2003
AUTO MAGNETO
AM-2210
BOSCH
F042004050
CARGO
110723
F032110723
CASCO
CST20604
CST20604AS
CST20604ES
CST20604GS
CST20604OS
CST20604RS
DELCO
DRS3219
ELECTROLOG
STR3031
ELSTOCK
45-0476
ERA
220608
220621
HC PARTS
JS748
HELLA
8EA730288-001
HITACHI
S24-03
S24-03A
S24-03B
S24-03C
S24-13
S24-13A
S2413S
S243
S243C
S25-120
S25-120A
S25-212
ISUZU
5811001280
5811001281
5811001292
5811001950
8942549221
8943205310
8943334380
KUHNER
20748
LAUBER
28.3011
LOGISTIK
336525
LUCAS
LRS01834
LRS1834
POWERMAX
8213190
REAL
20445406BN
SANDO
6020604
SIDAT
S24HT0128
S24HT0128A2
SIOM
MAV226040
MAV526090
UNIPOINT
STR6103
WAI
18284N
WOODAUTO
STR72045
YANMAR
119131-77010
119131-77011
Applications
Home
Starter
Starter XTLSTR5265
Related Products
Voltage
24 V
Clamp: B+
M8x1.25 mm
Length: B+
23.3 mm
Clamp: Motor
M8x1.25 mm

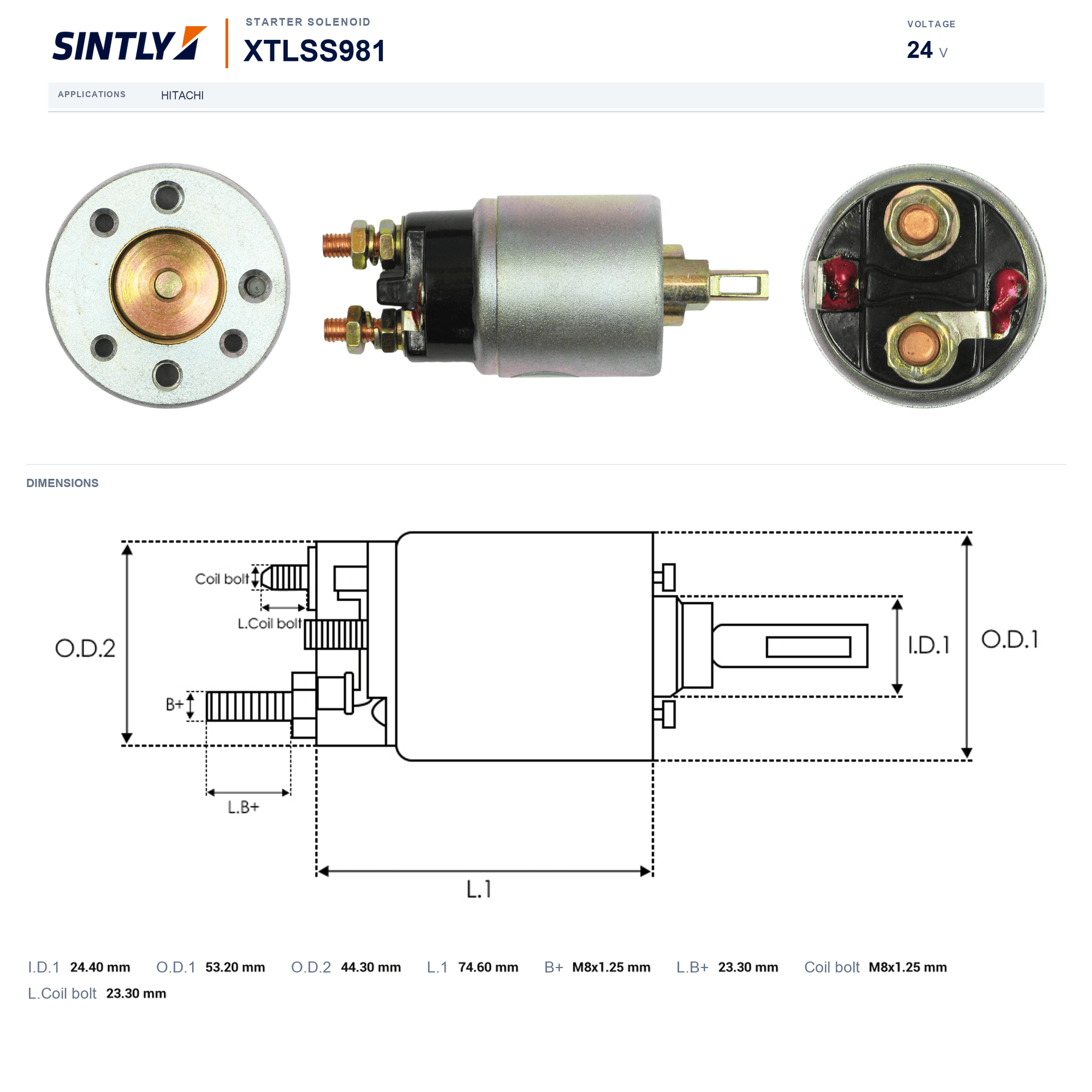

Starter Solenoid XTLSS981
Applications
ISUZU
N (5th Generation)
NKR 69S, NPR 69M, NPR 69L
01/1998-12/2001
N (6th Generation)
NMR 85L, NPR 85L
10/2006
NMR 85L, NPR 85L
10/2006
NMR 85L, NPR 85L
10/2006
