Starter XTLSTR5763 | SINTLY
Previous slide
Next slide

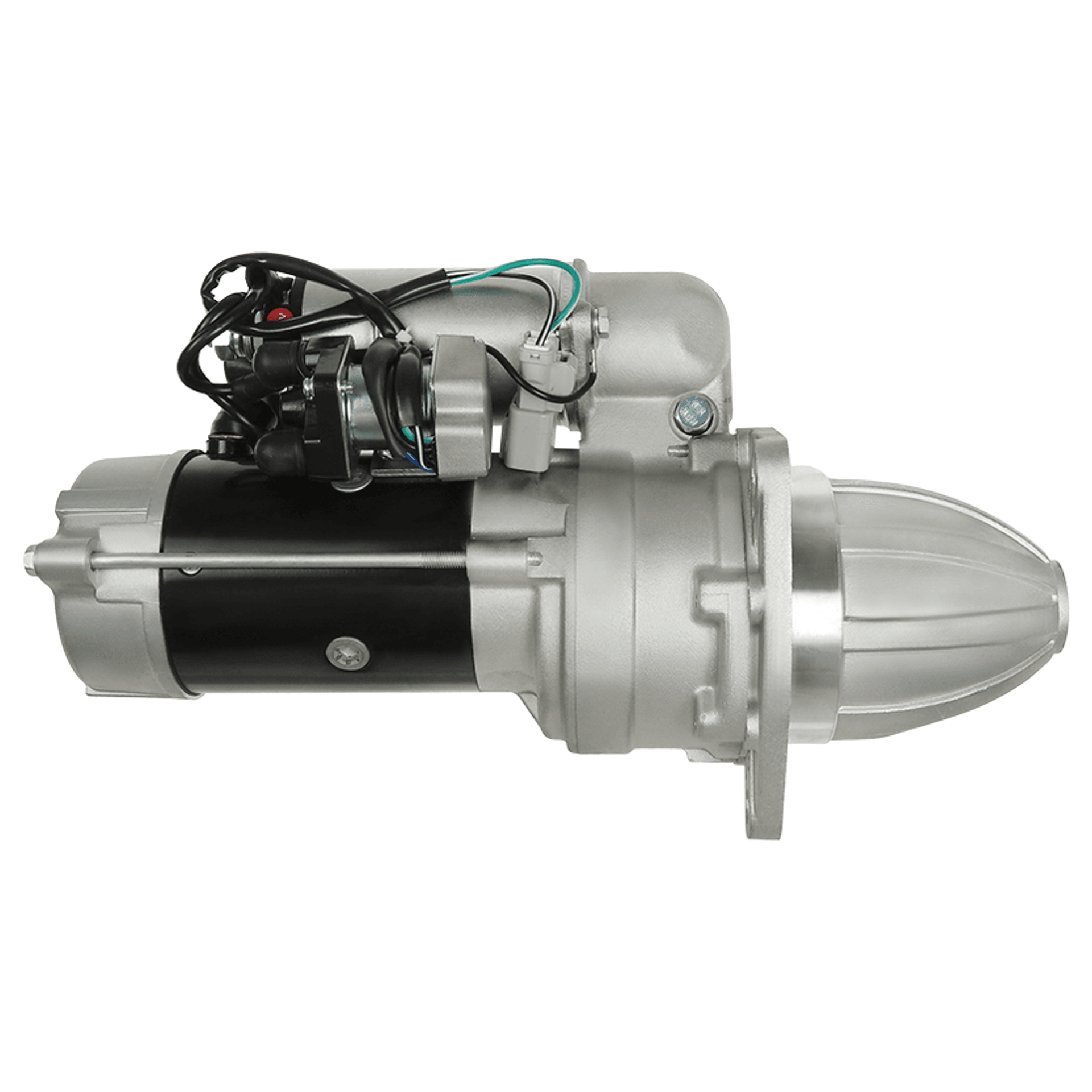

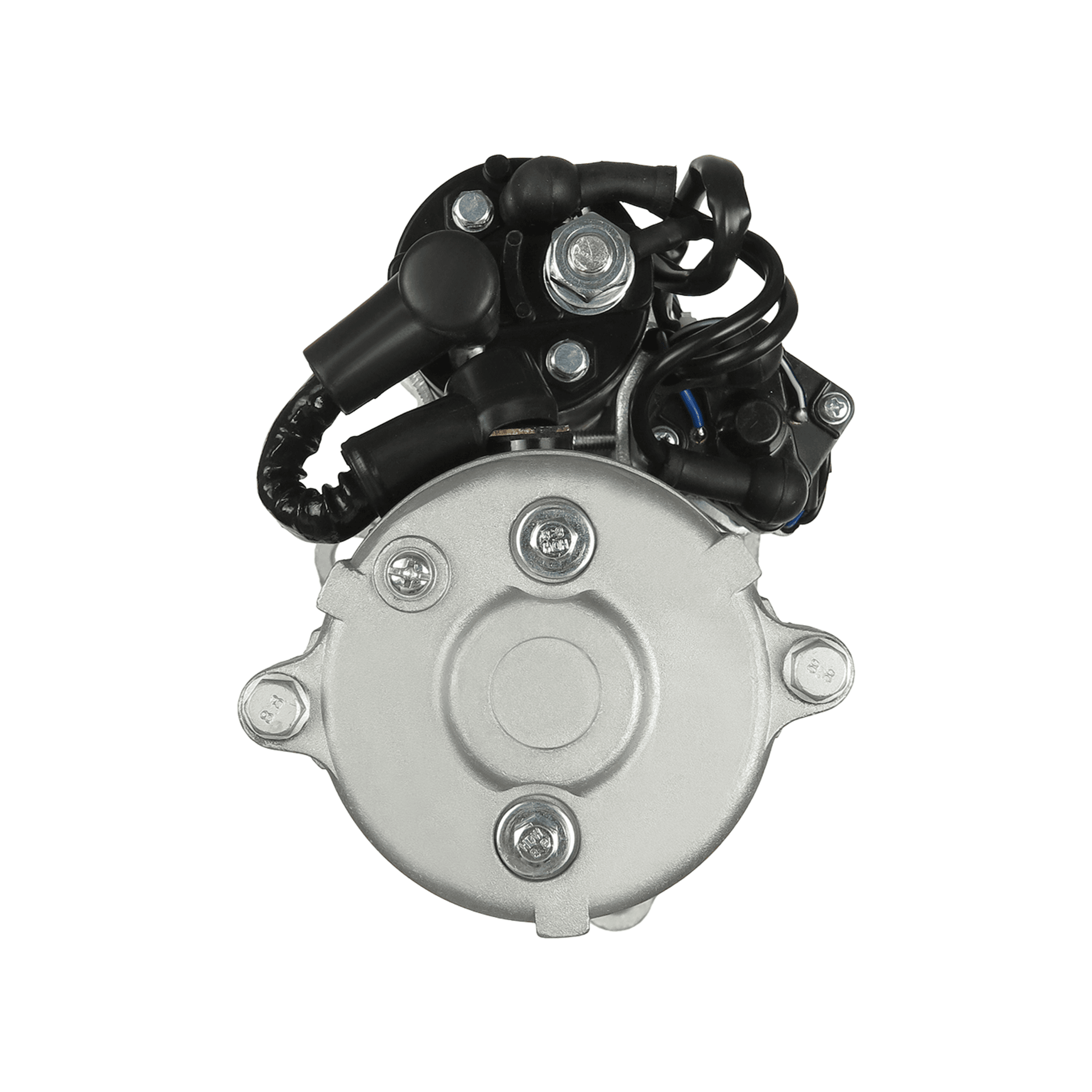

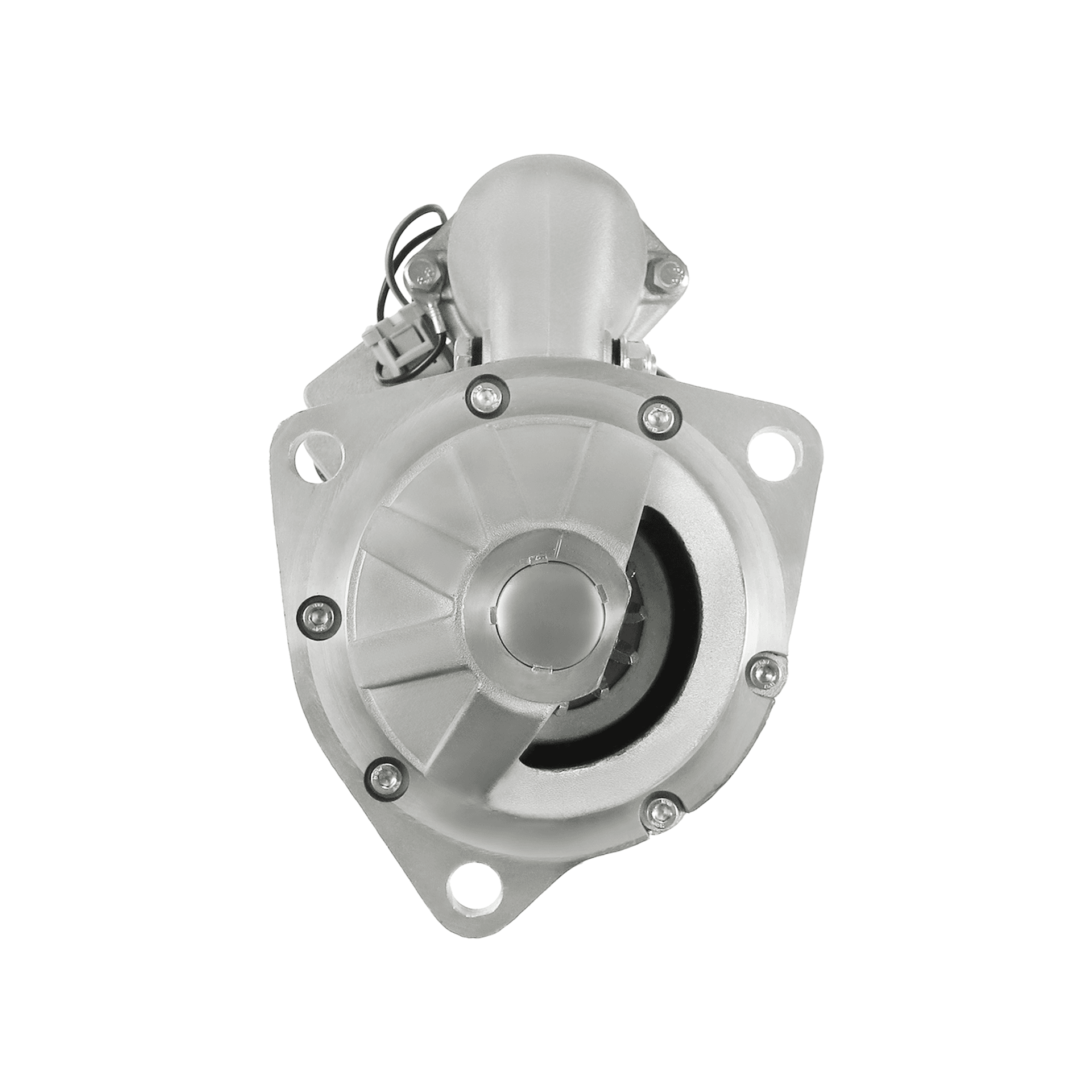

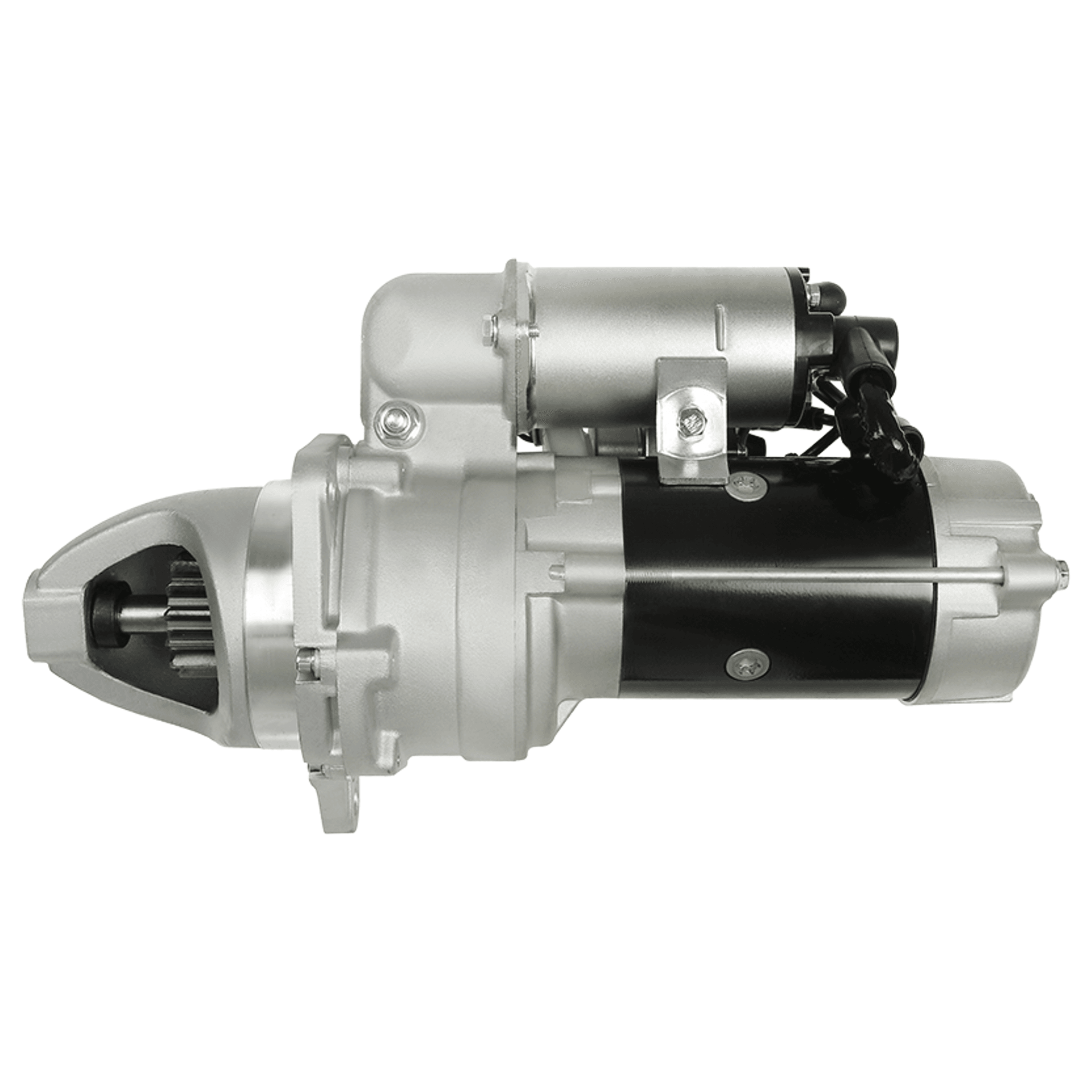

Starter XTLSTR5763
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
136 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
370 mm
Rotation
CW
Size A [ mm ]
100 mm
Size B [ mm ]
52.5 mm
No./teeth
13 qty
Power
5.5 kW
O.3 [ mm ]
119 mm
O.2 [ mm ]
119 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
View More
Starter XTLSTR5763
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
136 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
370 mm
Rotation
CW
Size A [ mm ]
100 mm
Size B [ mm ]
52.5 mm
No./teeth
13 qty
Power
5.5 kW
O.3 [ mm ]
119 mm
O.2 [ mm ]
119 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR5763
Original Code
0-23000-1230
0-23000-1231
18106
600-813-3380
Equivalent Code (Vehicle Manufacturer)
111050 (CARGO)
F032111050 (CARGO)
20446206BN (REAL)
20446206OE (REAL)
244-55201B (DIXIE)
244-55201D (DIXIE)
246-30213D (DIXIE)
600-813-3380 (KOMATSU)
600-813-3390 (KOMATSU)
600-813-3391 (KOMATSU)
600-813-3392 (KOMATSU)
600-813-4110 (KOMATSU)
600-813-4111 (KOMATSU)
600-813-4120 (KOMATSU)
600-813-4121 (KOMATSU)
600-813-4122 (KOMATSU)
6008134652 (KOMATSU)
6050602 (SANDO)
91-28-4049 (WILSON)
941.502.133 (PSH)
CGB-91231 (AINDE)
CGB-93160 (AINDE)
CST50602AS (CASCO)
CST50602GS (CASCO)
DRS0253 (DELCO)
MAV526020 (SIOM)
S9161 (AS-PL)
UD11090S (AS-PL)
STR29010 (WOODAUTO)
18106N (WAI / TRANSPO)
UNIT BOM 185-197 (WAI / TRANSPO)
ANM12473X (ANDEL)
335784 (LOGISTIK)
STR8820 (ELECTROLOG)
CQ1151173 (LAUBER)
Applications
Applications
ALL
KOMATSU
Make
KOMATSU
