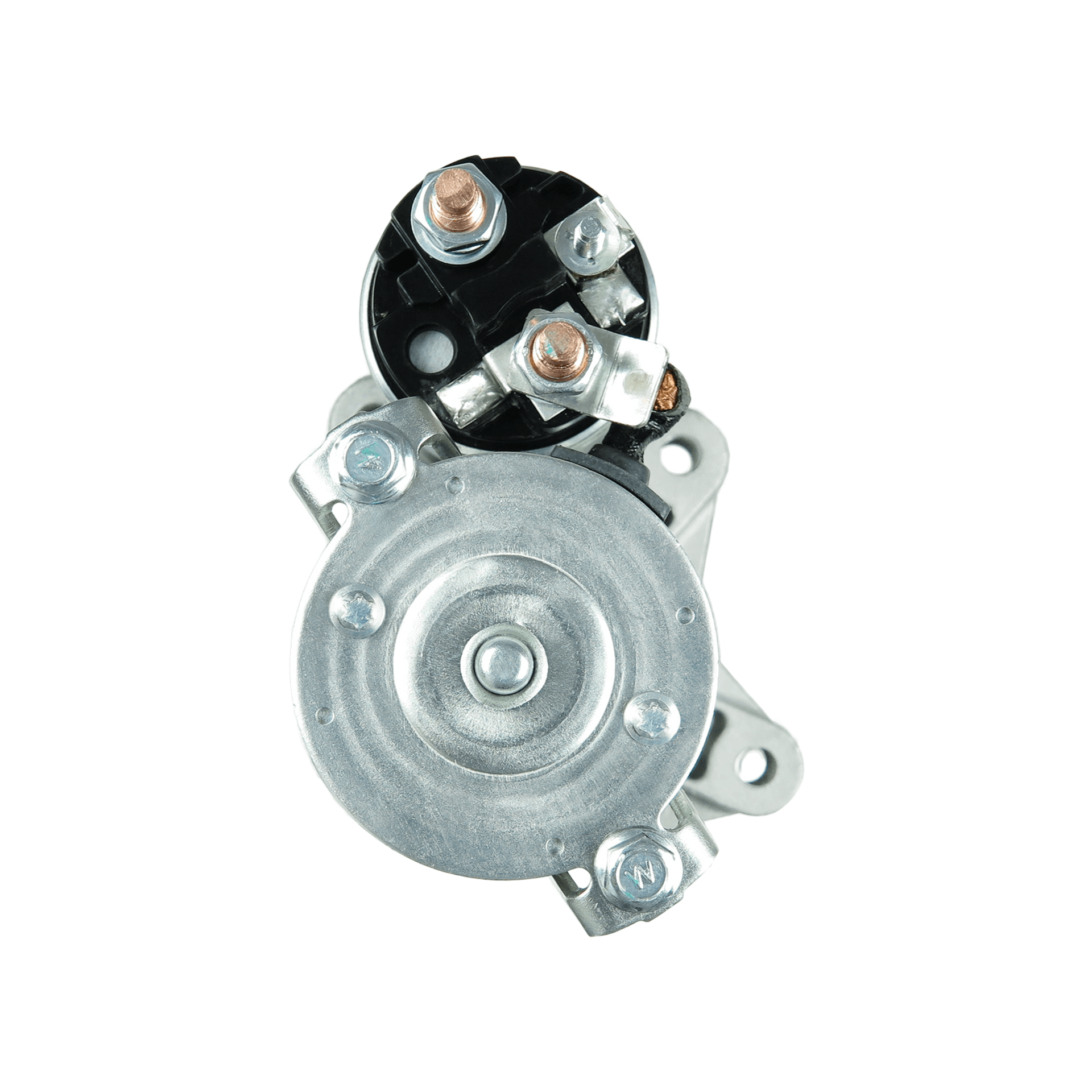

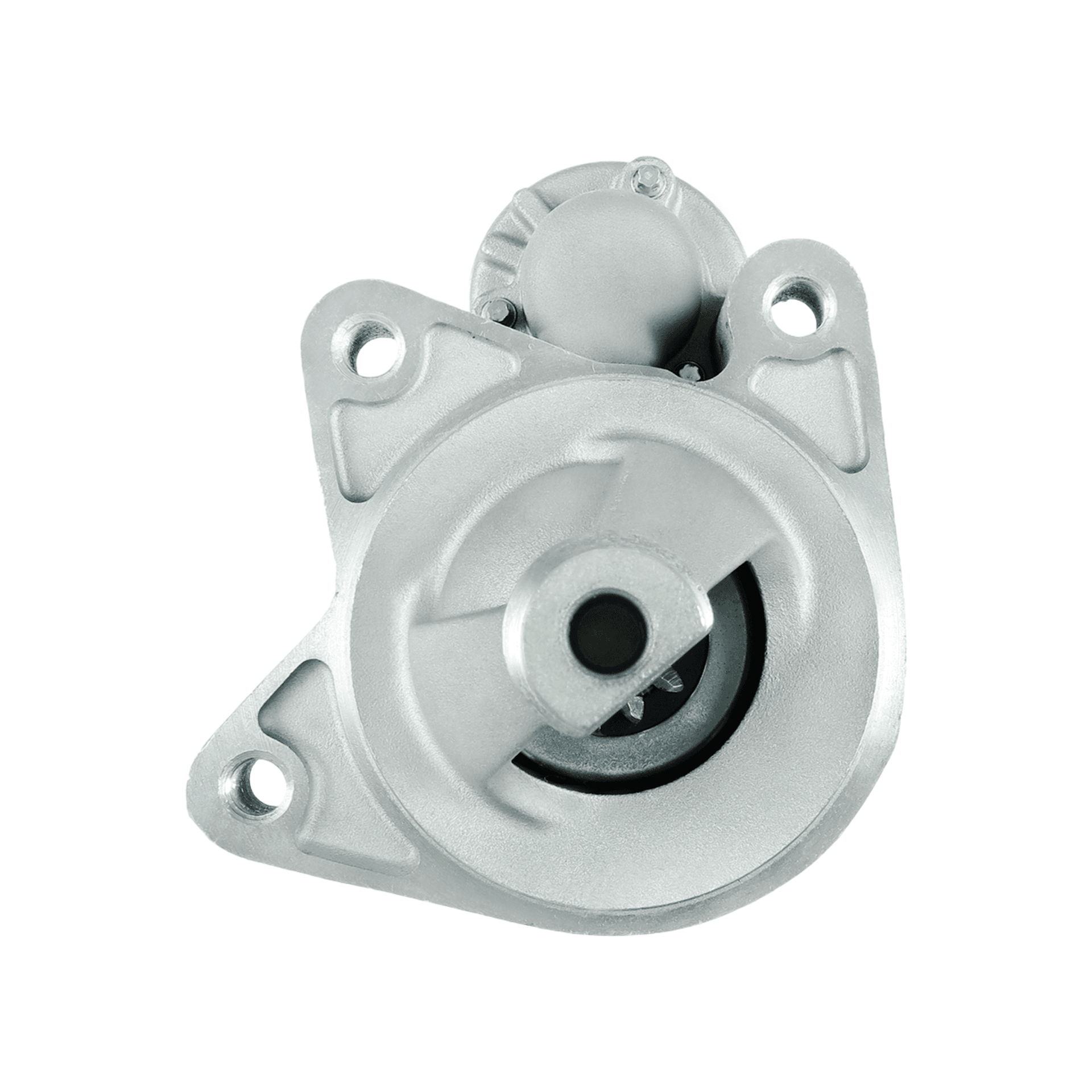

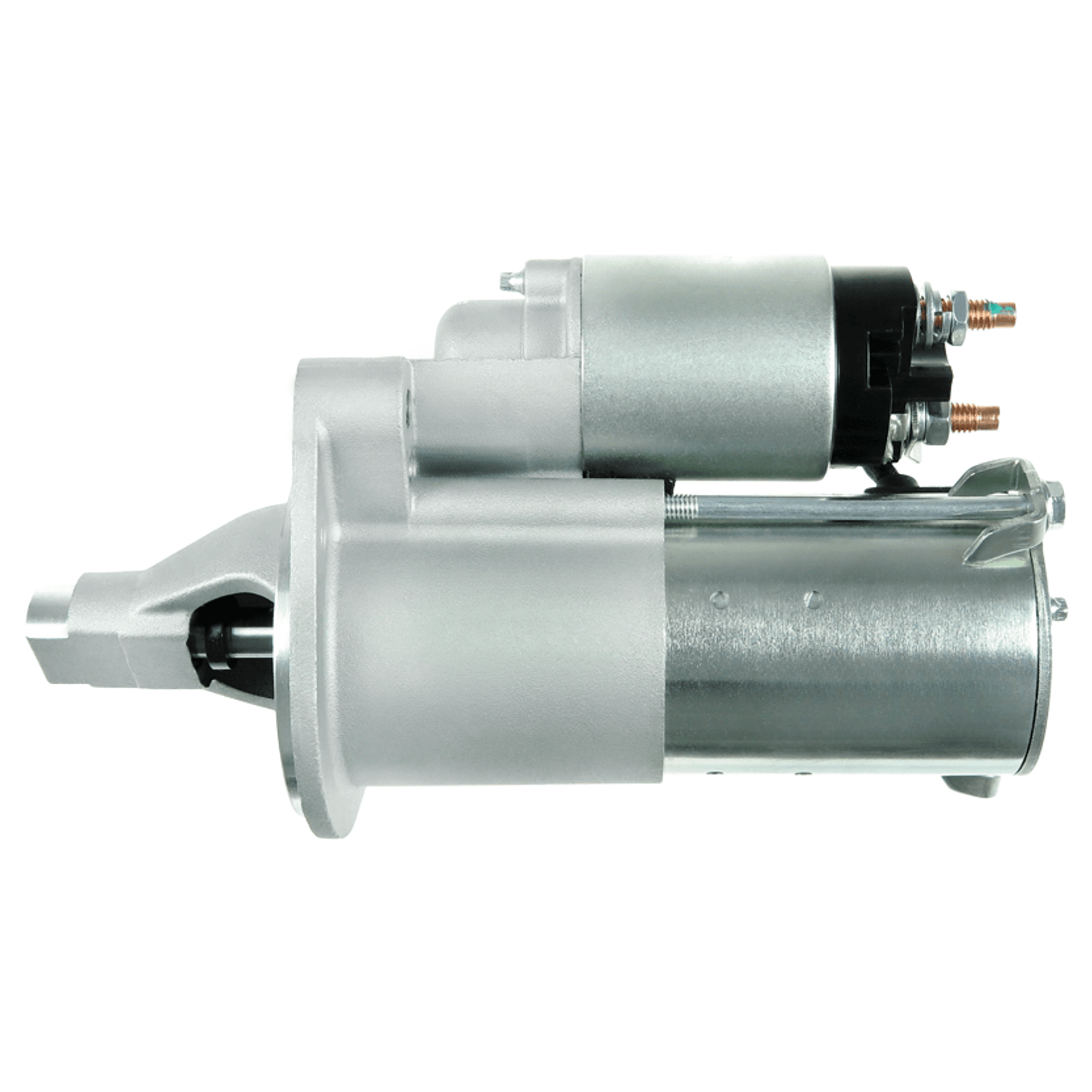

Starter XTLSTR6009
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
113 mm
No./mount. holes with thread [ qty. ]
3 qty
L.1 [ mm ]
232 mm
Rotation
CW
Size A [ mm ]
82 mm
Size B [ mm ]
7 mm
No./teeth
10 qty
Power
1.2 kW
O.3 [ mm ]
68 mm
O.2 [ mm ]
71 mm
C.1 [ mm ]
M10x1.25 mm
Voltage
12 V
C.3 [ mm ]
M10x1.25 mm
C.2 [ mm ]
M10x1.25 mm
View More
Starter XTLSTR6009
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
113 mm
No./mount. holes with thread [ qty. ]
3 qty
L.1 [ mm ]
232 mm
Rotation
CW
Size A [ mm ]
82 mm
Size B [ mm ]
7 mm
No./teeth
10 qty
Power
1.2 kW
O.3 [ mm ]
68 mm
O.2 [ mm ]
71 mm
C.1 [ mm ]
M10x1.25 mm
Voltage
12 V
C.3 [ mm ]
M10x1.25 mm
C.2 [ mm ]
M10x1.25 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6009
Original Code
04801269AB
6763
8000160
8000243
Equivalent Code (Vehicle Manufacturer)
04801269AB (CHRYSLER)
04801269AD (CHRYSLER)
4801269AB (CHRYSLER)
4801269AD (CHRYSLER)
6763N (WAI / TRANSPO)
6763R (WAI / TRANSPO)
91-01-4731 (WILSON)
91-01-4731N (WILSON)
S-1519 (DIXIE)
STD2691 (KRAUF)
STRJ573 (3EFFE)
UD14197S (AS-PL)
CST60176AS (CASCO)
20409671BN (REAL)
6060176.0 (SANDO)
STR2037 (ELECTROLOG)
Applications
Applications
ALL
JEEP
Make
Vehicle
JEEP
WRANGLER
