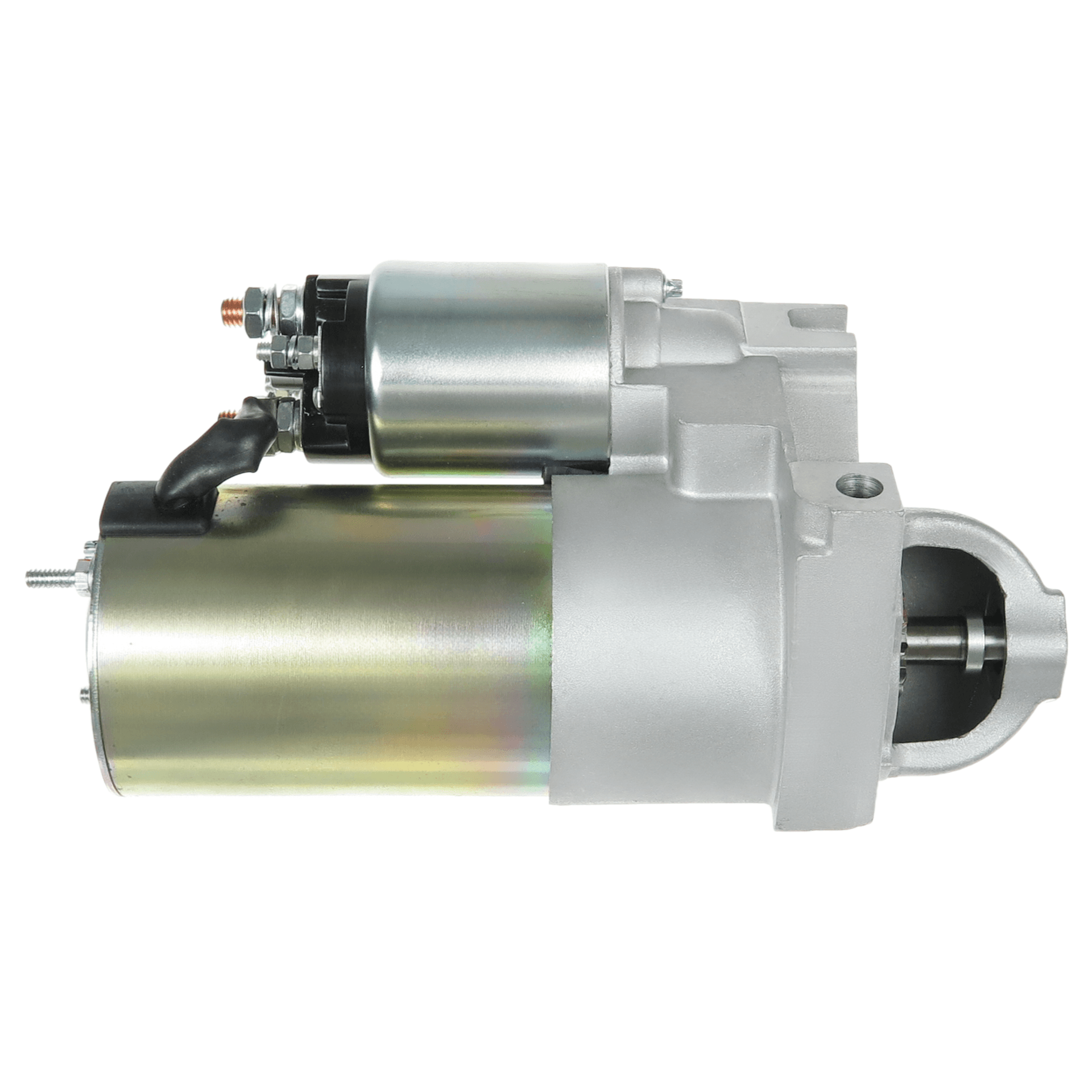

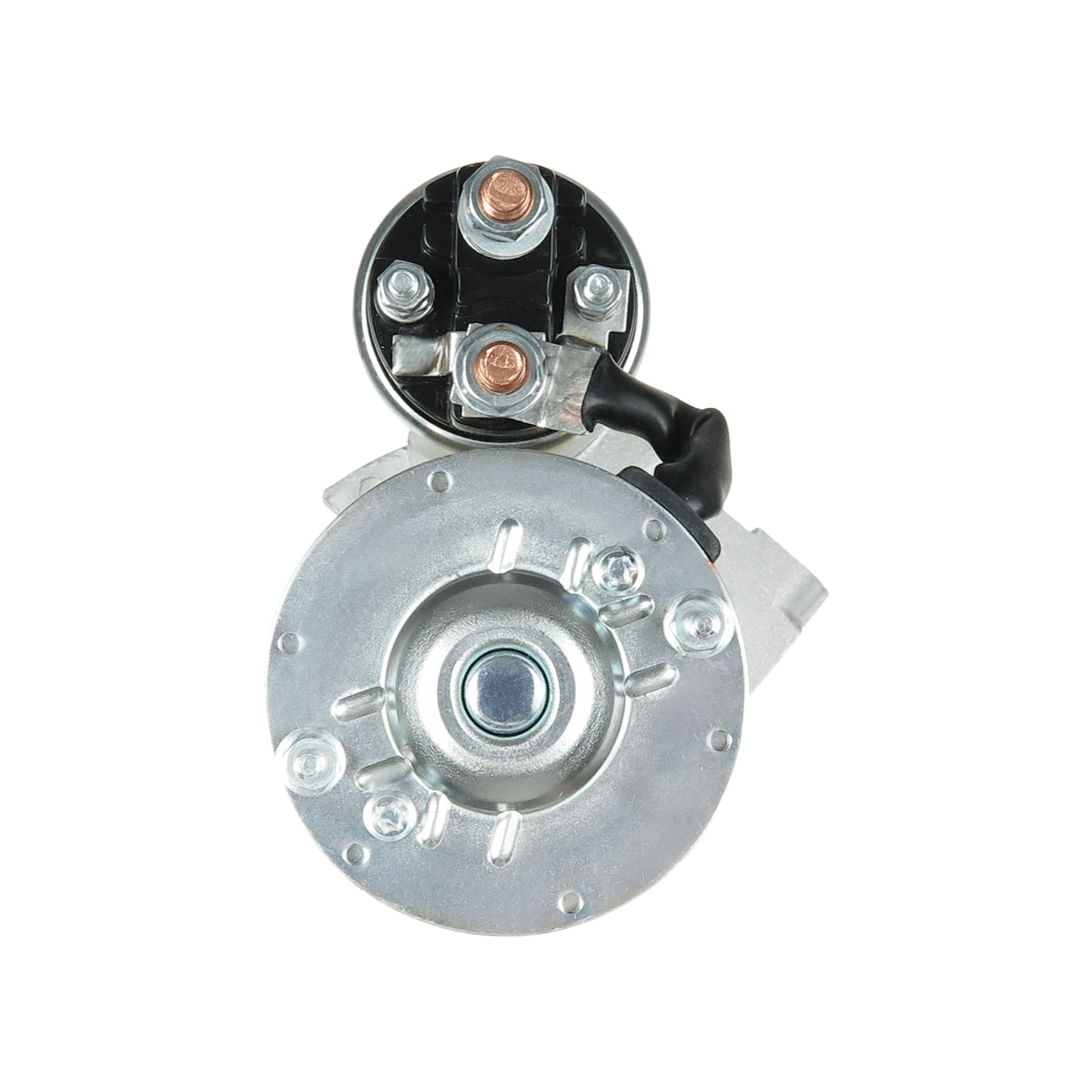

Starter XTLSTR6050
Download PDF
No./teeth
11 qty
Power
1.7 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
84 mm
No./mount. holes with thread [ qty. ]
0 qty
C.1 [ mm ]
10.00 mm
L.1 [ mm ]
240 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
10.00 mm
Size A [ mm ]
68.5 mm
Size B [ mm ]
17 mm
View More
Starter XTLSTR6050
Download PDF
Send Inquiry
No./teeth
11 qty
Power
1.7 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
84 mm
No./mount. holes with thread [ qty. ]
0 qty
C.1 [ mm ]
10.00 mm
L.1 [ mm ]
240 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
10.00 mm
Size A [ mm ]
68.5 mm
Size B [ mm ]
17 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6050
Original Code
2-1760-DR-2
3862307
6788
9000895
Equivalent Code (Vehicle Manufacturer)
201-16101 (DIXIE)
S-1438 (DIXIE)
26-2391 (ELSTOCK)
6788BN (WAI / TRANSPO)
6788N (WAI / TRANSPO)
71-01-6788 (WILSON)
91-01-4553 (WILSON)
91-01-4553N (WILSON)
810.521.112.030 (PSH)
810.521.112.031 (PSH)
810.521.112.440 (PSH)
810.521.112.441 (PSH)
810.521.112.442 (PSH)
810.521.112.461 (PSH)
810.521.112.462 (PSH)
810.521.112.463 (PSH)
810.521.112.510 (PSH)
810.521.112.511 (PSH)
S135.368 (PSH)
LRS01789 (LUCAS)
LRS1789 (LUCAS)
STD1258 (KRAUF)
S1247S (AS-PL)
UD19282S (AS-PL)
S12DR0306A2 (SIDAT)
CST60103AS (CASCO)
CST60103GS (CASCO)
20409301BN (REAL)
20409301OE (REAL)
6060103.0 (SANDO)
6060103.1 (SANDO)
STR2031 (ELECTROLOG)
1469603 (HYSTER)
1650426 (HYSTER)
3862307 (VOLVO)
3862308 (VOLVO)
50-806963A2 (MERCURY)
Applications
Applications
ALL
VOLVO PENTA
Make
Vehicle
From
To
VOLVO PENTA
3.0GS
01/1993
12/2000
VOLVO PENTA
4.3GL
01/1993
12/2001
VOLVO PENTA
4.3Gi
01/1994
12/2001
