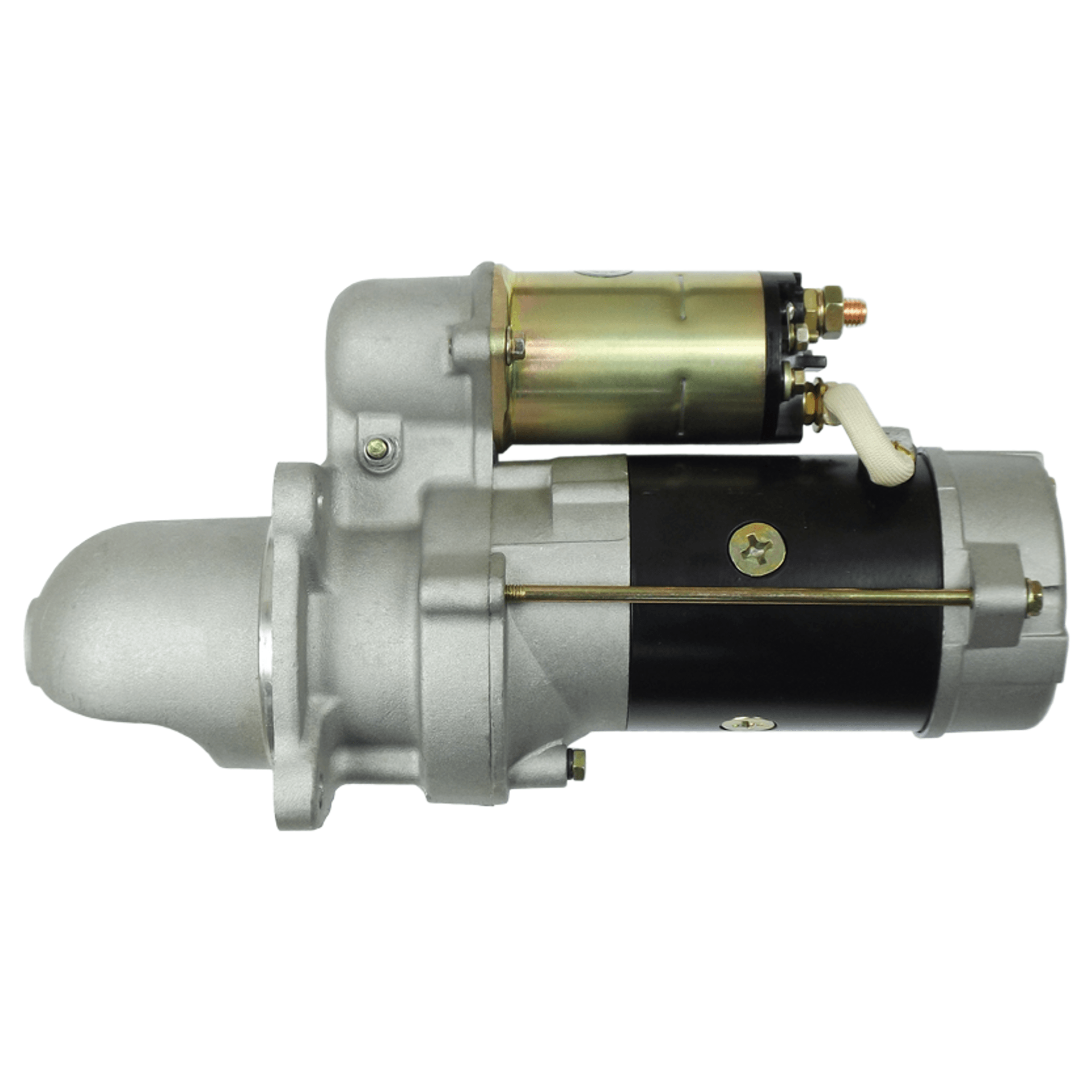

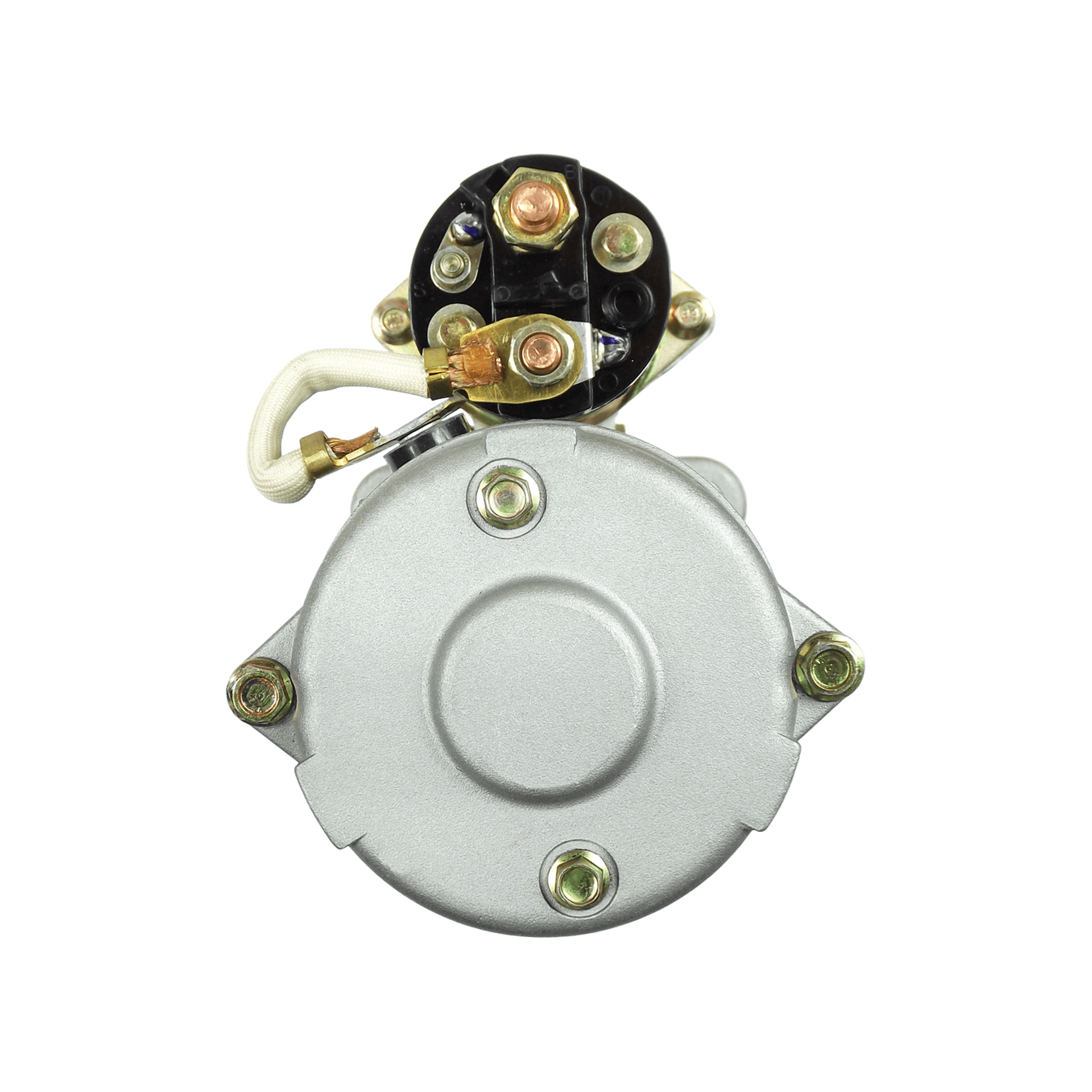

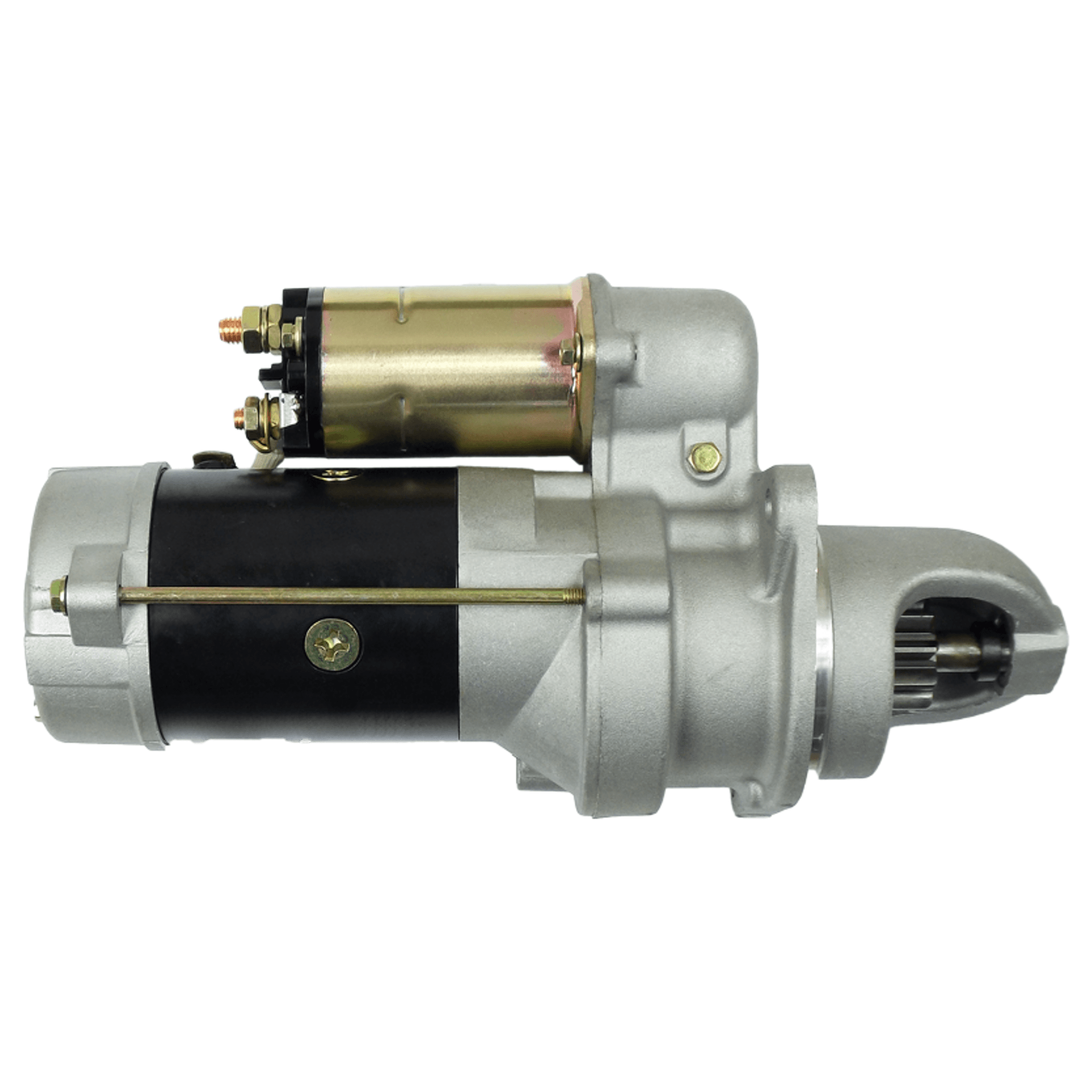

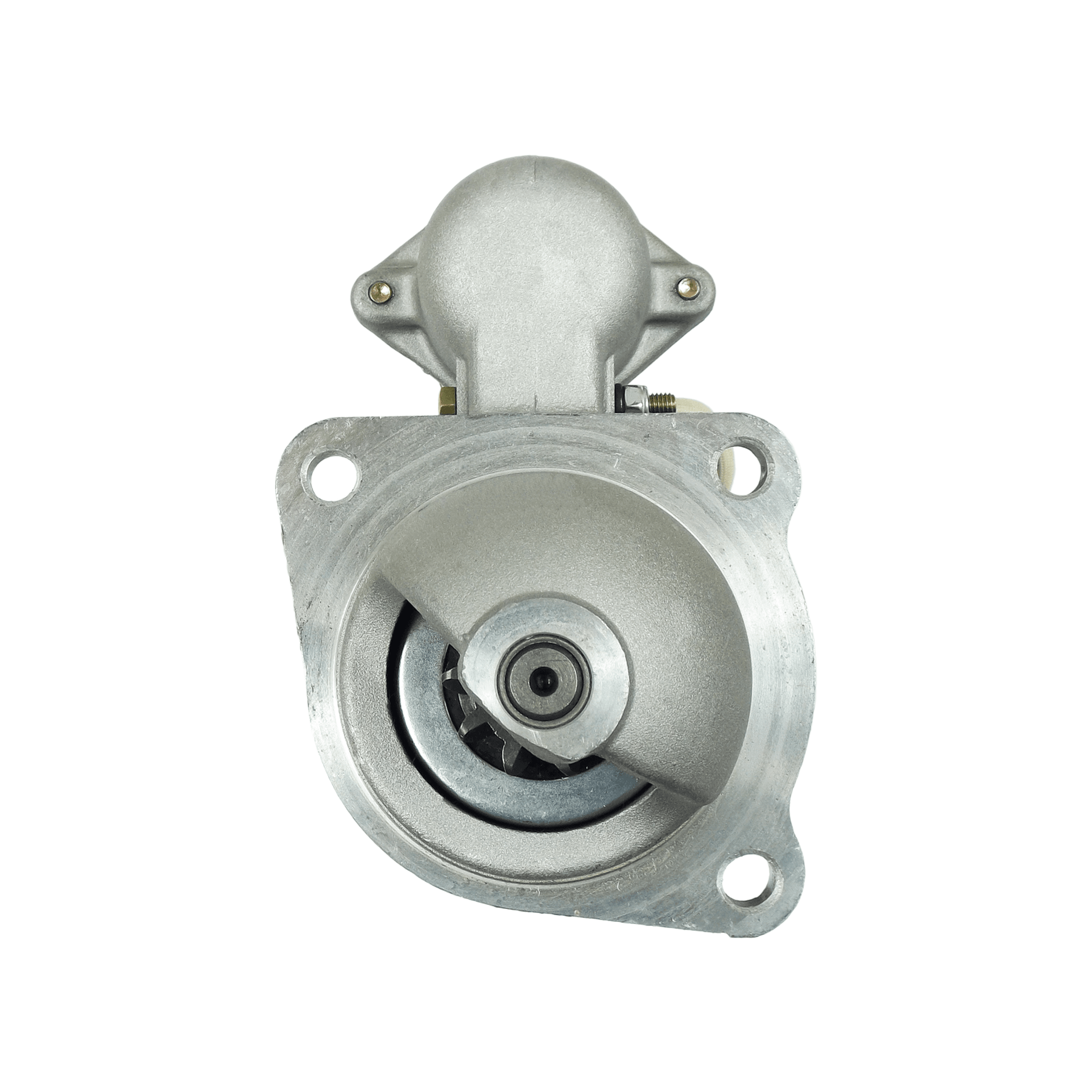

Starter XTLSTR6252
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
338 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
46 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
2.8 kW
O.3 [ mm ]
90 mm
Oil sealed
No
O.2 [ mm ]
127 mm
C.1 [ mm ]
10.50 mm
Voltage
12 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
View More
Starter XTLSTR6252
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
338 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
46 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
2.8 kW
O.3 [ mm ]
90 mm
Oil sealed
No
O.2 [ mm ]
127 mm
C.1 [ mm ]
10.50 mm
Voltage
12 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6252
Original Code
10461446
10461447
RE503093
Equivalent Code (Vehicle Manufacturer)
0-23000-1830 (NIKKO)
0-23000-1870 (NIKKO)
0001359029 (BOSCH)
0001359058 (BOSCH)
0001359114 (BOSCH)
0001362302 (BOSCH)
111041 (CARGO)
F032111041 (CARGO)
140-28105 (ROBERT'S)
201-28107 (DIXIE)
254219 (KUHNER)
254219N (KUHNER)
254439 (KUHNER)
254439M (KUHNER)
254439N (KUHNER)
60968 (KUHNER)
60968N (KUHNER)
35258940 (PRESTOLITE)
35259600 (PRESTOLITE)
35259690 (PRESTOLITE)
35261175 (PRESTOLITE)
50-8406 (WAI / TRANSPO)
6318R (WAI / TRANSPO)
6584N (WAI / TRANSPO)
6586N (WAI / TRANSPO)
6854 (LESTER)
8681 (CEVAM)
MAV123500 (SIOM)
MAV621050 (SIOM)
STRW292 (3EFFE)
S1054 (AS-PL)
UD02186S (AS-PL)
UD02188S (AS-PL)
332071 (LOGISTIK)
STR2025 (ELECTROLOG)
STRX734 (ELECTROLOG)
12500790 (PERKINS)
1313394 (HYSTER)
RE503093 (JOHN DEERE)
RE503120 (JOHN DEERE)
RE507236 (JOHN DEERE)
RE509025 (JOHN DEERE)
RE59010 (JOHN DEERE)
STX210090 (STARDAX)
Applications
Applications
ALL
PERKINS
Make
PERKINS
