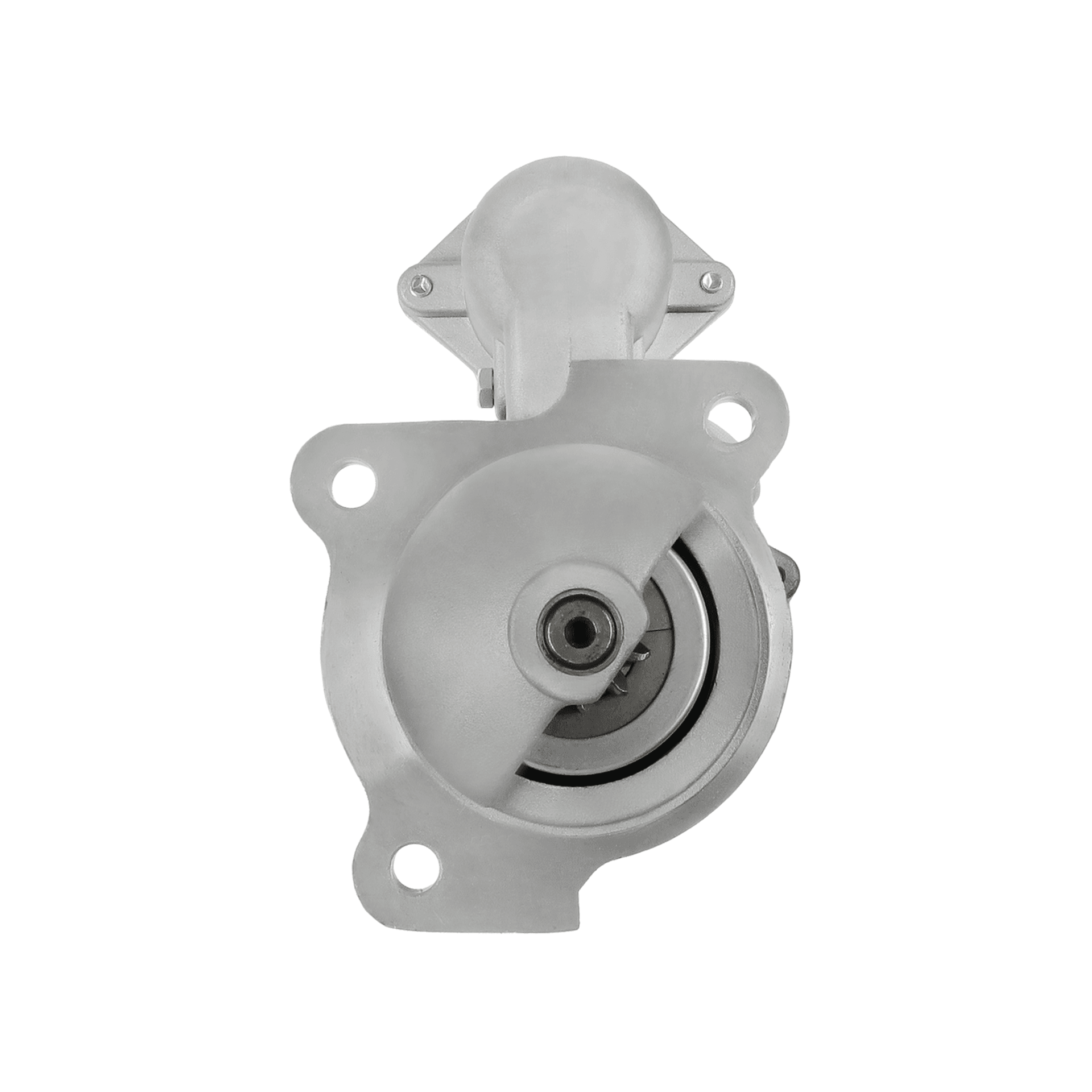

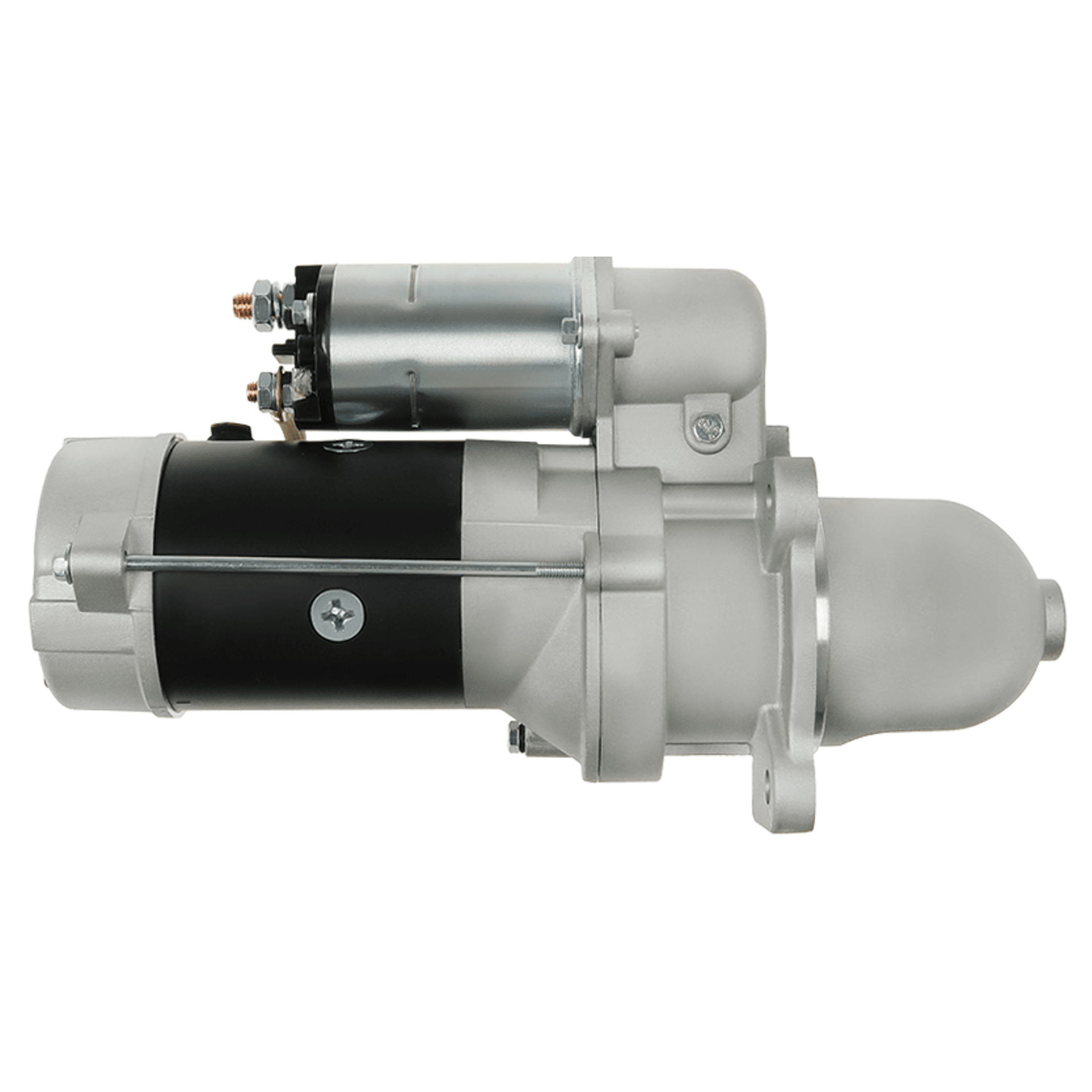

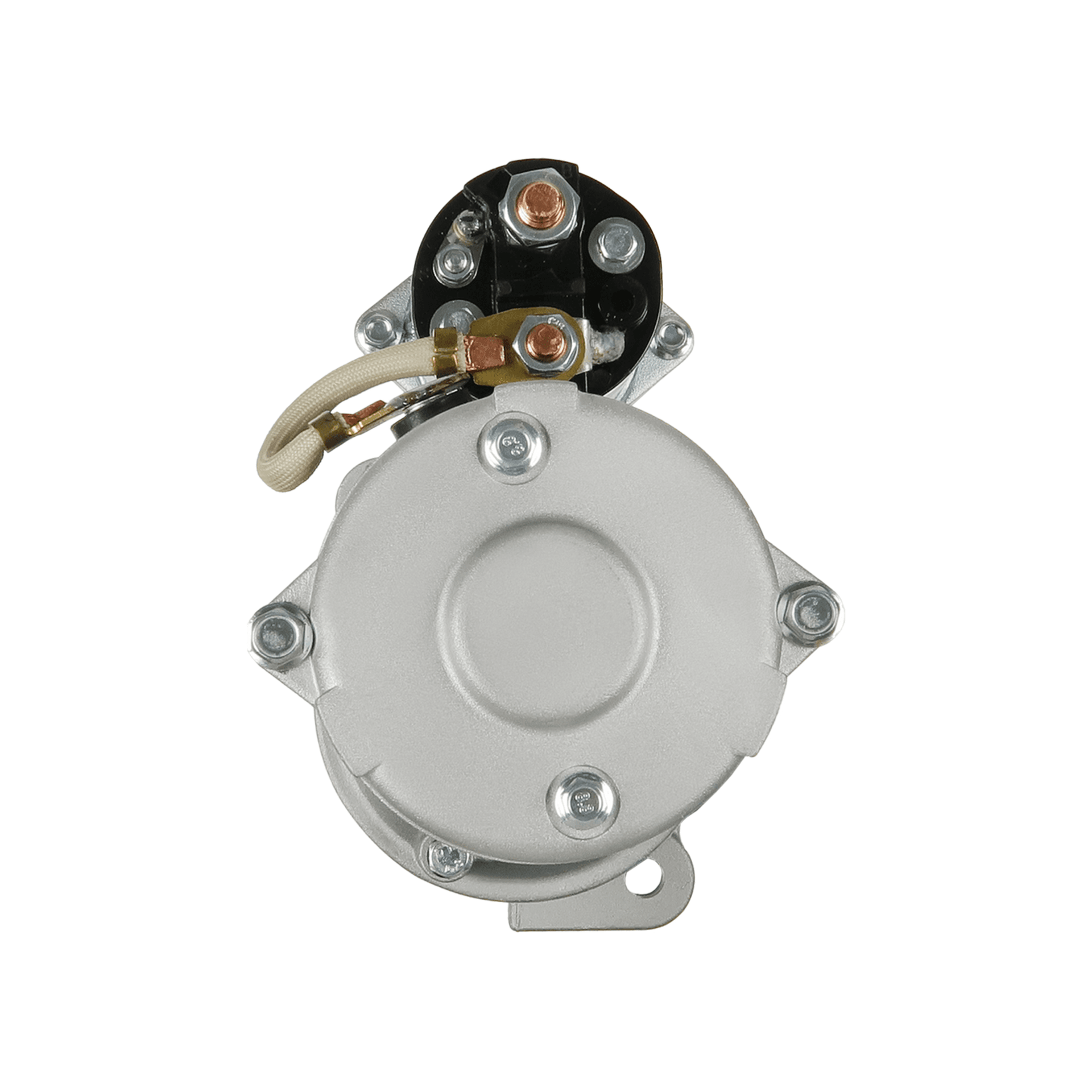

Starter XTLSTR6256
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
89 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
339 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
45 mm
No./teeth
10 qty
Power
2.8 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
89 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR6256
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
89 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
339 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
45 mm
No./teeth
10 qty
Power
2.8 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
89 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6256
Original Code
10465151
10465314
6585
F3HZ11001B
Equivalent Code (Vehicle Manufacturer)
0-23000-2230 (NIKKO)
0-23000-2234 (NIKKO)
0-23000-2380 (NIKKO)
0-23000-2440 (NIKKO)
0-23000-2444 (NIKKO)
0-23000-2480 (NIKKO)
0-24000-3200 (NIKKO)
112253 (CARGO)
F032112253 (CARGO)
140-28102 (ROBERT'S)
254216 (KUHNER)
35259630 (PRESTOLITE)
3675172RX (CUMMINS)
3924410 (CUMMINS)
3935071 (CUMMINS)
50-8425 (WAI / TRANSPO)
6585N (WAI / TRANSPO)
6585R (WAI / TRANSPO)
6060115 (SANDO)
6585 (LESTER)
CST60115 (CASCO)
CST60115AS (CASCO)
CST60115ES (CASCO)
CST60115GS (CASCO)
CST60115OS (CASCO)
CST60115RS (CASCO)
F3HT11001DB (FORD)
F3HT11001DC (FORD)
F3HZ11001B (FORD)
F3HZ11002B (FORD)
F4HT11001BA (FORD)
F7HT11001FA (FORD)
F7HT11002FH (FORD)
MAV621150 (SIOM)
STR80109 (WOODAUTO)
STRS626 (3EFFE)
TS-1625 (DIXIE)
S1059 (AS-PL)
UD02203S (AS-PL)
339807 (LOGISTIK)
STR2651 (ELECTROLOG)
3134772 (VOLVO)
Applications
Applications
ALL
FORD
Make
FORD
