Starter XTLSTR6296 | SINTLY
Previous slide
Next slide

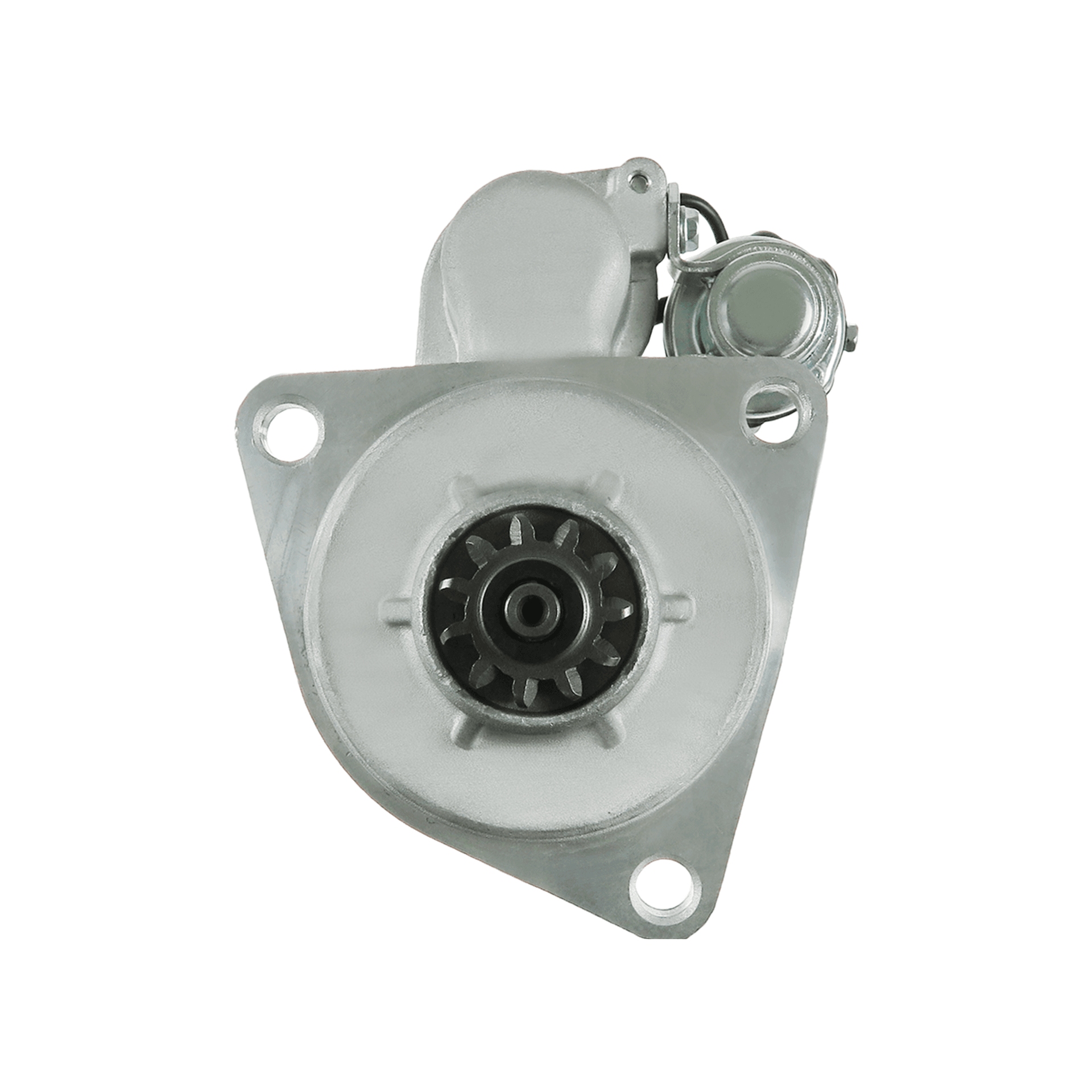

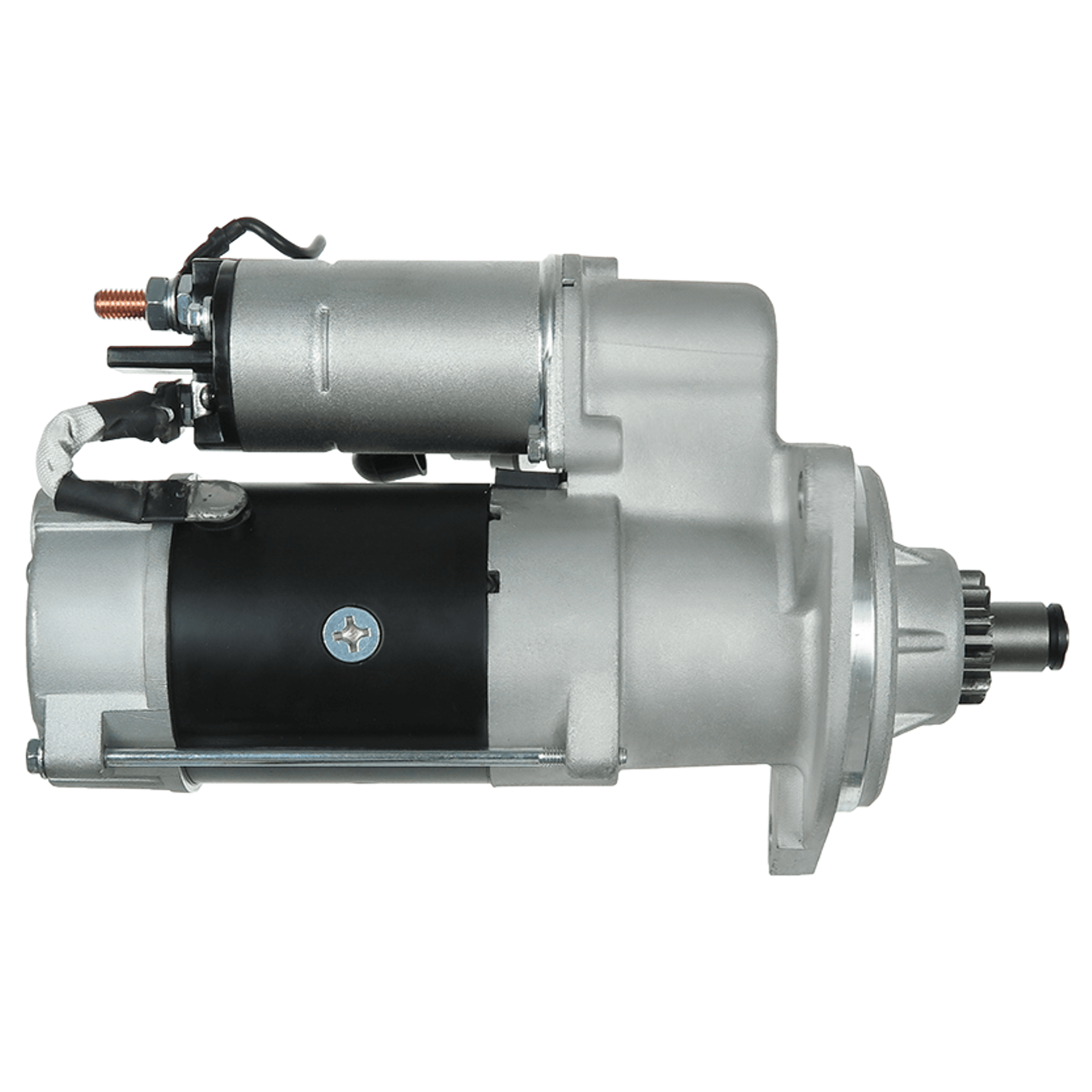

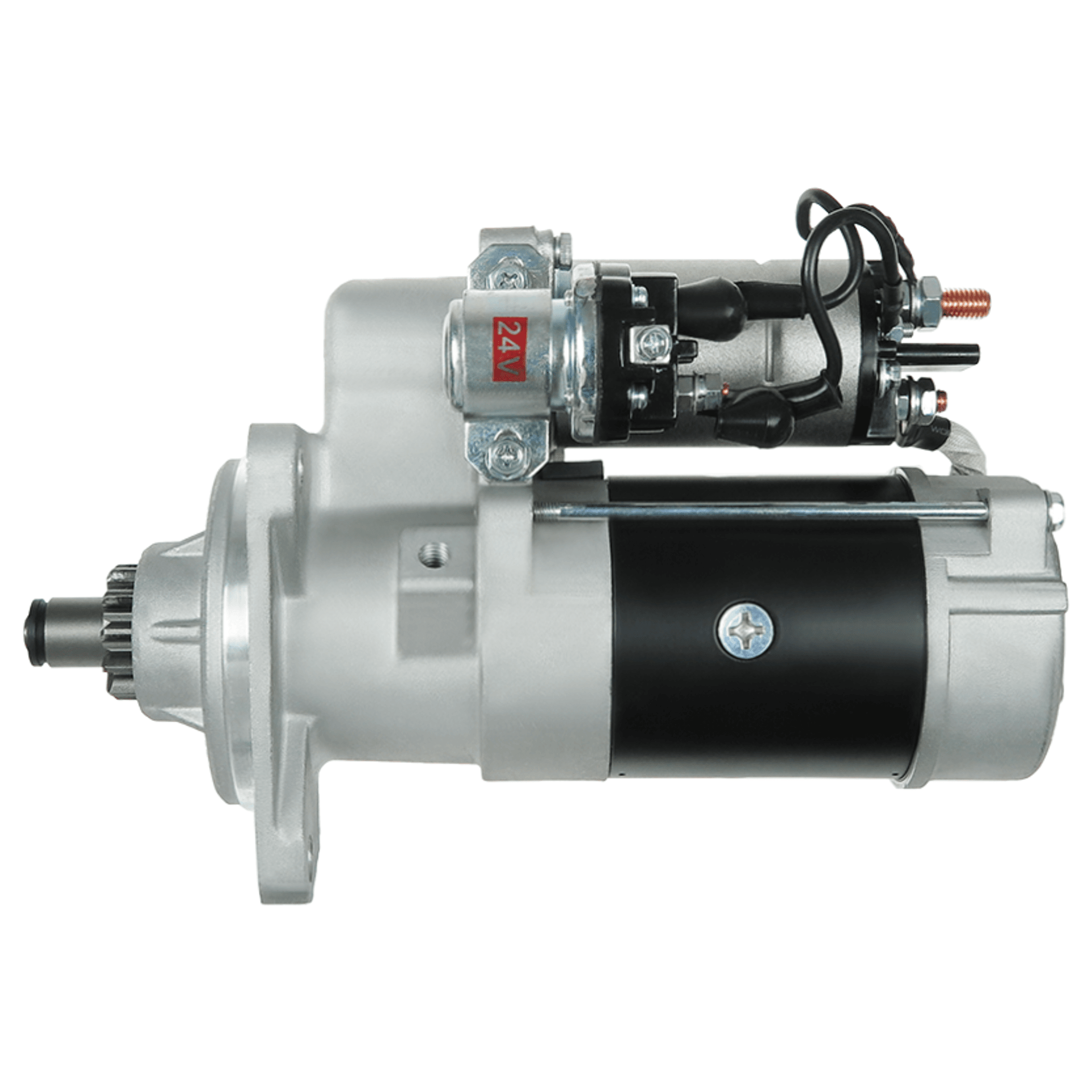

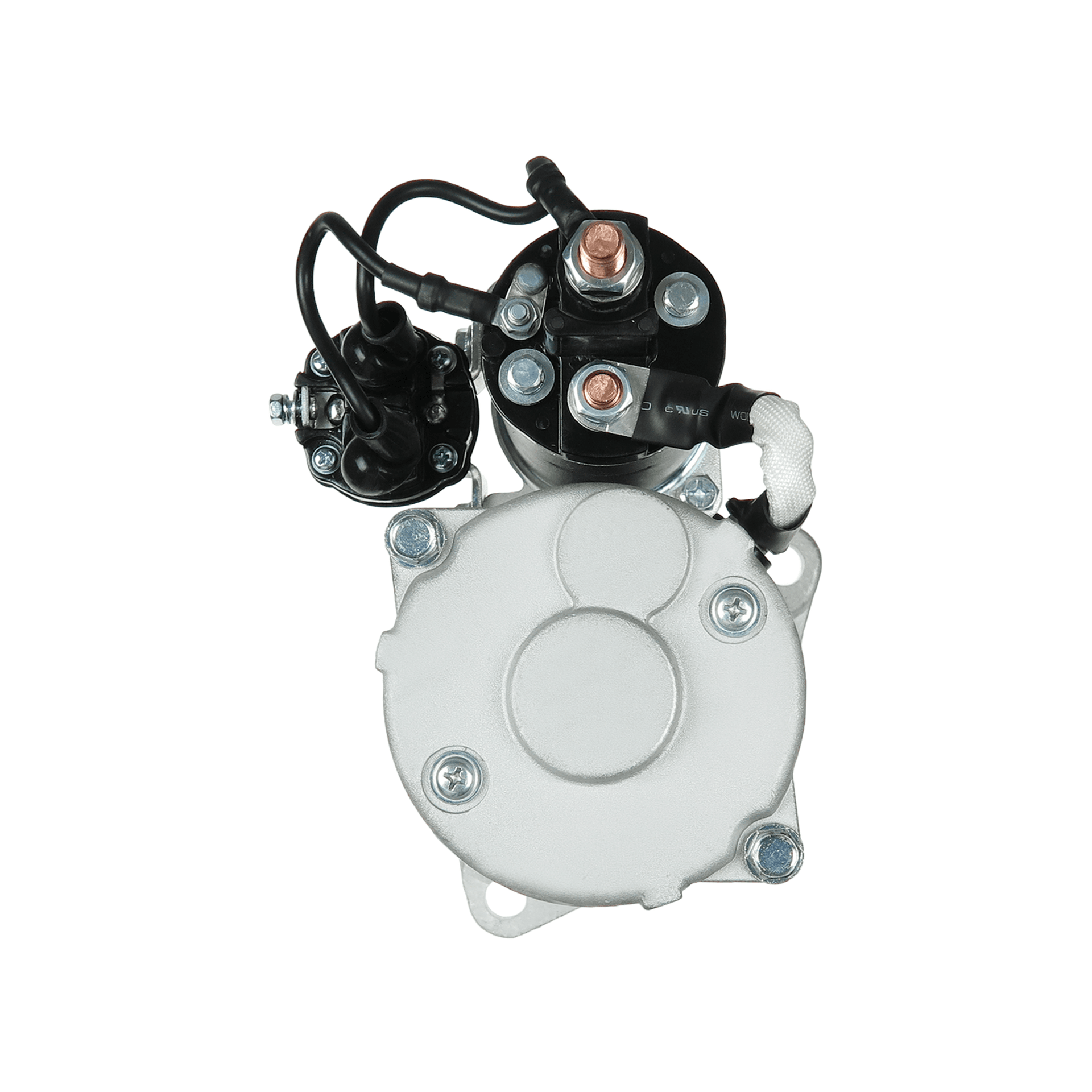

Starter XTLSTR6296
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
111 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
306 mm
Rotation
CW
Size A [ mm ]
105 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
Power
4.5 kW
O.3 [ mm ]
135 mm
O.2 [ mm ]
111 mm
C.1 [ mm ]
13.00 mm
Voltage
24 V
C.3 [ mm ]
13.00 mm
C.2 [ mm ]
13.00 mm
View More
Starter XTLSTR6296
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
111 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
306 mm
Rotation
CW
Size A [ mm ]
105 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
Power
4.5 kW
O.3 [ mm ]
135 mm
O.2 [ mm ]
111 mm
C.1 [ mm ]
13.00 mm
Voltage
24 V
C.3 [ mm ]
13.00 mm
C.2 [ mm ]
13.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6296
Original Code
153005KA
8200222
8200401
Equivalent Code (Vehicle Manufacturer)
140-29125 (ROBERT'S)
153005KA (DOOSAN)
300516-00042 (DOOSAN)
300516-00042A (DOOSAN)
300516-00042C (DOOSAN)
20460406BN (REAL)
20460406OE (REAL)
231.003.113 (PSH)
S131.760 (PSH)
S144.362 (PSH)
254762 (KUHNER)
254762D (KUHNER)
6046604.0 (SANDO)
6046604.1 (SANDO)
65.26201-7075 (DAEWOO)
65.26201-7075A (DAEWOO)
65.26201-7093 (DAEWOO)
968436577 (DAEWOO)
CST46604AS (CASCO)
CST46604GS (CASCO)
STD7093 (KRAUF)
STR80125 (WOODAUTO)
TS-1820 (DIXIE)
S1088S (AS-PL)
UD18486S (AS-PL)
STR2121 (ELECTROLOG)
Applications
Applications
ALL
24
nonsaN
Make
Vehicle
24
(V 4.0
nonsaN
--
