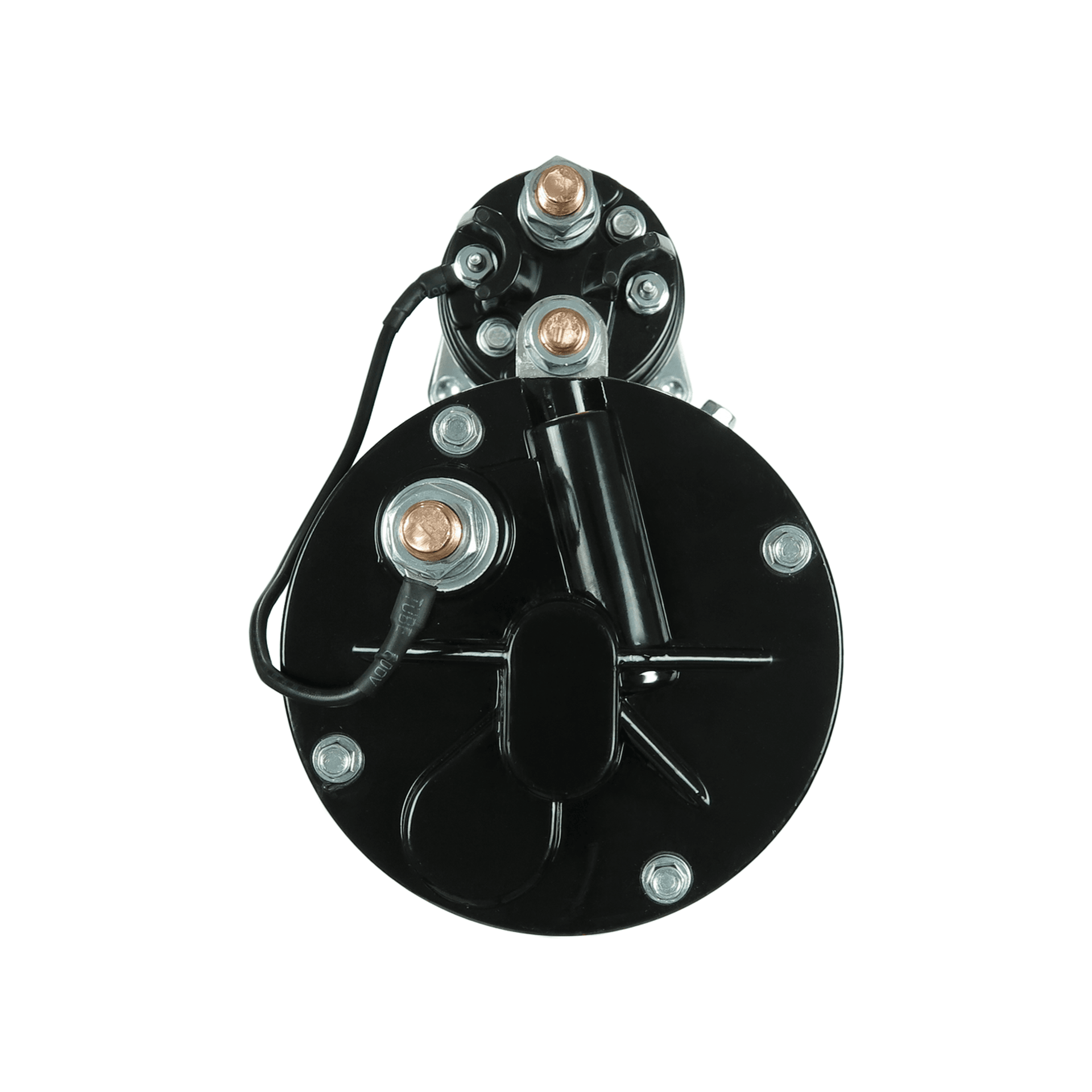

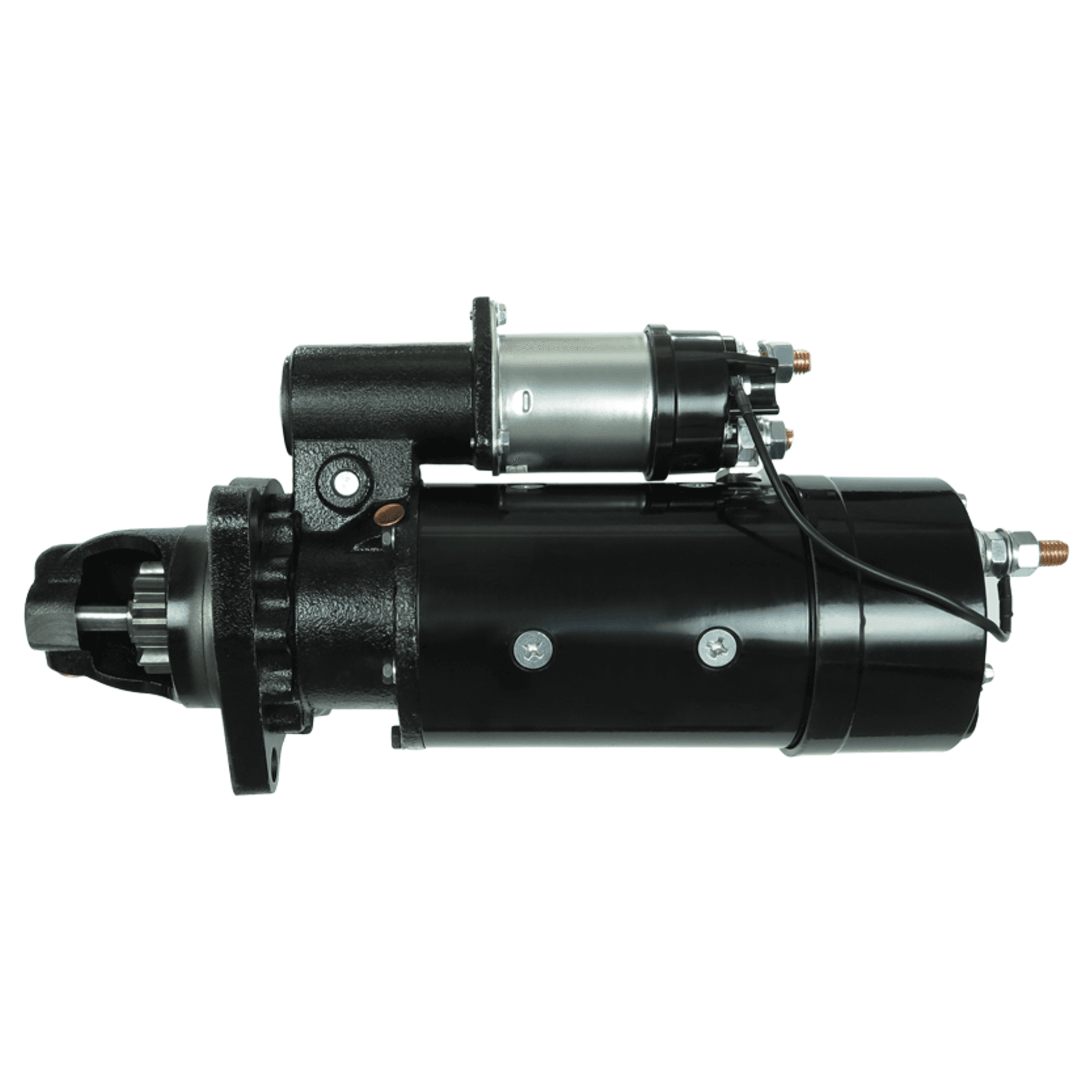

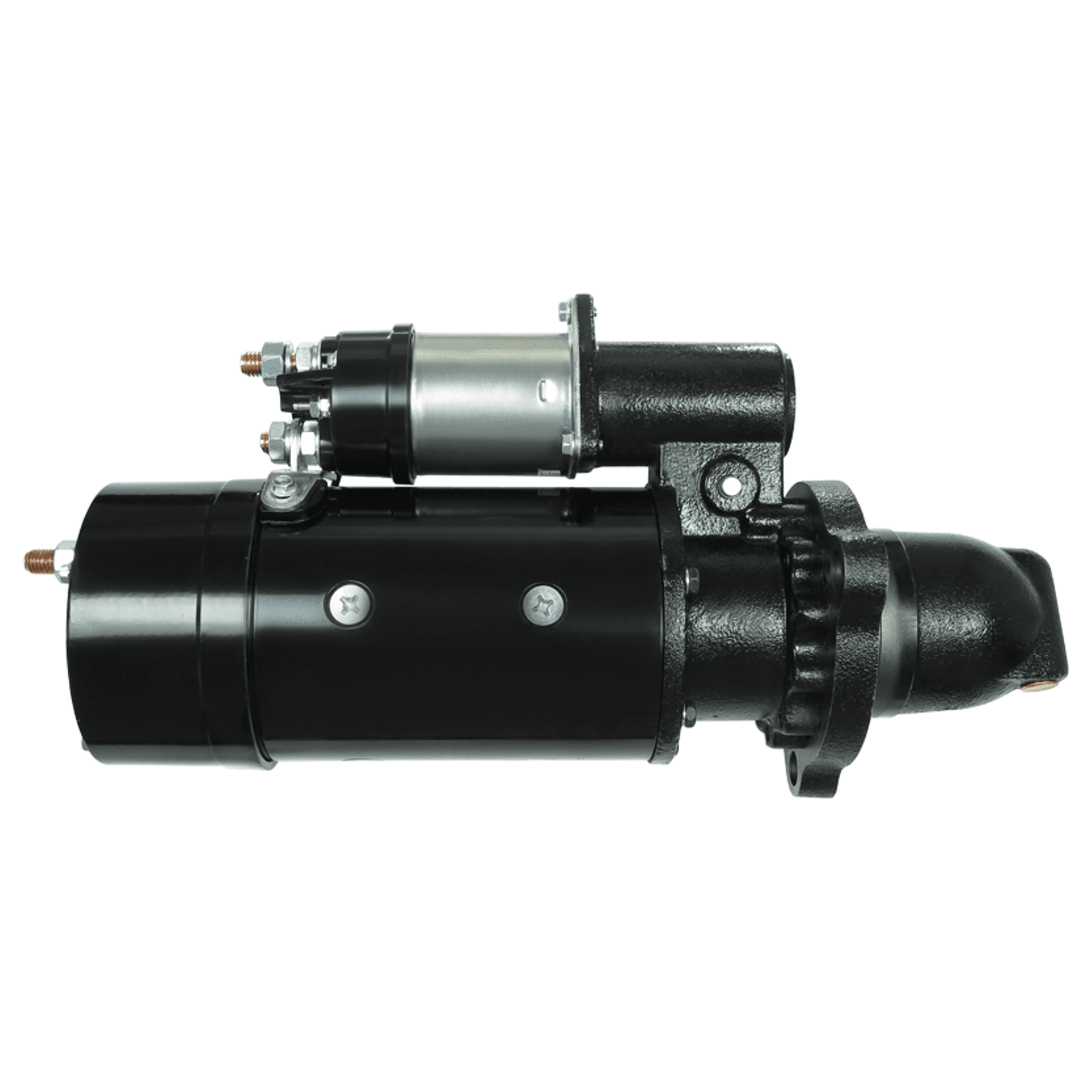

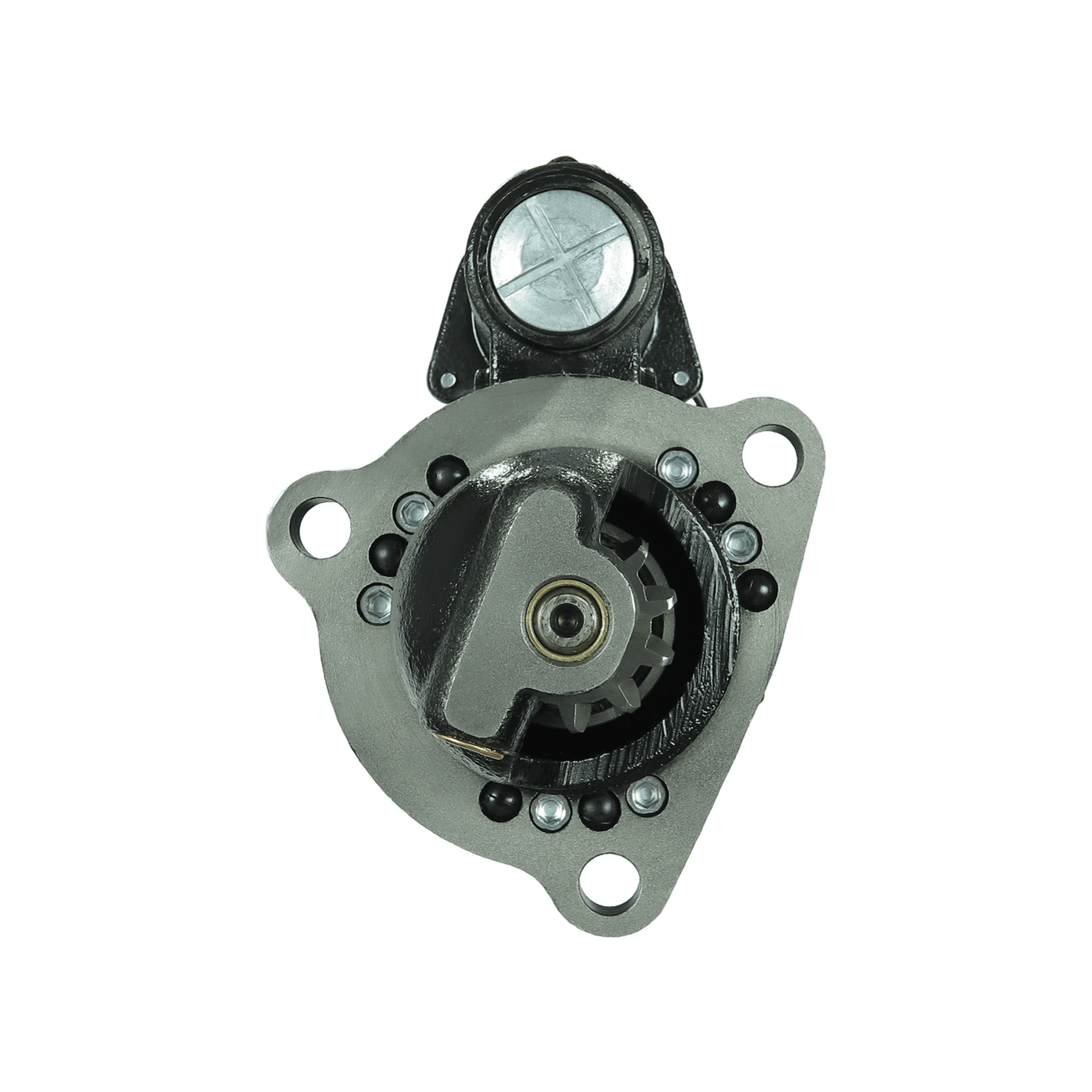

Starter XTLSTR6306
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
501 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
11 qty
Power
7.5 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
16.00 mm
Voltage
24 V
C.3 [ mm ]
16.00 mm
C.2 [ mm ]
16.00 mm
View More
Starter XTLSTR6306
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
501 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
11 qty
Power
7.5 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
16.00 mm
Voltage
24 V
C.3 [ mm ]
16.00 mm
C.2 [ mm ]
16.00 mm
Applications
ALL
CATERPILLAR
Make
CATERPILLAR
Original Code
104-7041
10461024
10461068
Equivalent Code (Vehicle Manufacturer)
111000 (CARGO)
F032111000 (CARGO)
22.3401 (LAUBER)
254887D (KUHNER)
254887P (KUHNER)
60864 (KUHNER)
60864D (KUHNER)
60864K (KUHNER)
60864M (KUHNER)
WhatsApp inquiry
Email inquiry
Starter XTLSTR6306
60864P (KUHNER)
60864W (KUHNER)
33386 (EAI)
45-2345 (ELSTOCK)
858442 (BUTEC)
858450 (BUTEC)
858506 (BUTEC)
MS1/411AZ (BUTEC)
8EA732856-001 (HELLA)
AEX1151 (AUTOELECTRO)
CGB-1083 (AINDE)
LRS01915 (LUCAS)
LRS1915 (LUCAS)
M0017268ME (PRESTOLITE)
M0017407ME (PRESTOLITE)
M105R3503SE (PRESTOLITE)
M105R3508SE (PRESTOLITE)
M125R3001SEP (PRESTOLITE)
MS1-311A (PRESTOLITE)
MS1-327A (PRESTOLITE)
MS1-401A (PRESTOLITE)
MS1-403A (PRESTOLITE)
MS1-410A (PRESTOLITE)
MS1-411A (PRESTOLITE)
MS1-445 (PRESTOLITE)
MS1-447 (PRESTOLITE)
MS1-453 (PRESTOLITE)
MS1-456 (PRESTOLITE)
MAV626010 (SIOM)
MAV626040 (SIOM)
S1001 (AS-PL)
UD12390S (AS-PL)
STR80023 (WOODAUTO)
STRL634 (3EFFE)
STRS028 (3EFFE)
US864 (HC PARTS)
339014 (LOGISTIK)
STR2601 (ELECTROLOG)
0R2187 (CATERPILLAR)
0R2190 (CATERPILLAR)
0R4259 (CATERPILLAR)
0R5209 (CATERPILLAR)
104-7041 (CATERPILLAR)
106-8554 (CATERPILLAR)
10R0400 (CATERPILLAR)
1L8174 (CATERPILLAR)
207-1548 (CATERPILLAR)
207-1556 (CATERPILLAR)
207-1564 (CATERPILLAR)
2071549 (CATERPILLAR)
3T2646 (CATERPILLAR)
3T2649 (CATERPILLAR)
3T2650 (CATERPILLAR)
3T2654 (CATERPILLAR)
3T3152 (CATERPILLAR)
3T3153 (CATERPILLAR)
4N0957 (CATERPILLAR)
4N1062 (CATERPILLAR)
4N8118 (CATERPILLAR)
4N957 (CATERPILLAR)
5L2537 (CATERPILLAR)
5L2637 (CATERPILLAR)
5L537 (CATERPILLAR)
5L637 (CATERPILLAR)
6N1889 (CATERPILLAR)
6N3122 (CATERPILLAR)
6N3160 (CATERPILLAR)
6V5539 (CATERPILLAR)
7L8797 (CATERPILLAR)
7T0794 (CATERPILLAR)
7T0800 (CATERPILLAR)
7T0801 (CATERPILLAR)
7T0806 (CATERPILLAR)
8C3644 (CATERPILLAR)
8C3645 (CATERPILLAR)
8C3649 (CATERPILLAR)
8H1813 (CATERPILLAR)
9G5584 (CATERPILLAR)
9G5585 (CATERPILLAR)
9L6691 (CATERPILLAR)
9N0435 (CATERPILLAR)
9N0453 (CATERPILLAR)
121555C91 (CASE)
135161 (CUMMINS)
2871253 (CUMMINS)
3021036 (CUMMINS)
3103952 (CUMMINS)
3603862RX (CUMMINS)
3604321RX (CUMMINS)
3910646 (CUMMINS)
1443674 (DAF)
CH12807 (PERKINS)
M004T95481 (MITSUBISHI)
M4T95481 (MITSUBISHI)
STX201301 (STARDAX)
