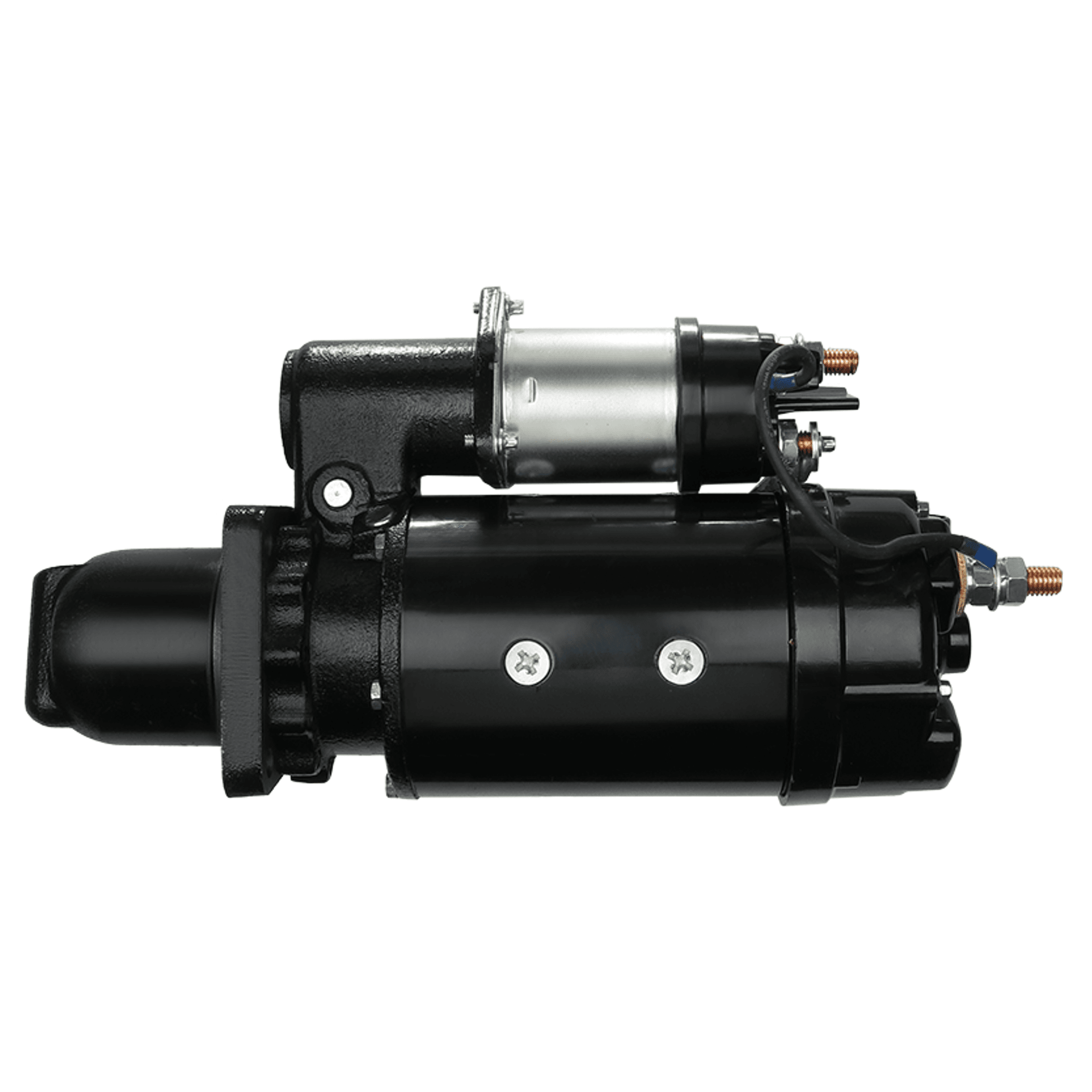

Starter XTLSTR6308
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
435 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
46.5 mm
No./teeth
12 qty
Power
7.5 kW
O.3 [ mm ]
90 mm
Oil sealed
Yes
Insulated return
No
O.2 [ mm ]
127 mm
C.1 [ mm ]
10.50 mm
Voltage
24 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
View More
Starter XTLSTR6308
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
435 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
46.5 mm
No./teeth
12 qty
Power
7.5 kW
O.3 [ mm ]
90 mm
Oil sealed
Yes
Insulated return
No
O.2 [ mm ]
127 mm
C.1 [ mm ]
10.50 mm
Voltage
24 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6308
Original Code
03L28M
10461085
10461417
6633
Equivalent Code (Vehicle Manufacturer)
03L28M (CATERPILLAR)
07A04M (CATERPILLAR)
0R2735 (CATERPILLAR)
0R4263 (CATERPILLAR)
104-7040 (CATERPILLAR)
106-8557 (CATERPILLAR)
106-8558 (CATERPILLAR)
106-8559 (CATERPILLAR)
10R-0395 (CATERPILLAR)
1438434 (CATERPILLAR)
1683499 (CATERPILLAR)
207-1511 (CATERPILLAR)
207-1517 (CATERPILLAR)
2071519 (CATERPILLAR)
3E2298 (CATERPILLAR)
3T5209 (CATERPILLAR)
6V5720 (CATERPILLAR)
8C4773 (CATERPILLAR)
9X9995 (CATERPILLAR)
9Y1945 (CATERPILLAR)
255387 (KUHNER)
255387P (KUHNER)
23534A (WAI / TRANSPO)
6633N (WAI / TRANSPO)
M105R3503SE (PRESTOLITE)
M105R3504SE (PRESTOLITE)
MAV626110 (SIOM)
MAV626140 (SIOM)
S1162S (AS-PL)
UD14328S (AS-PL)
STRL209 (3EFFE)
S24DR0090A2 (SIDAT)
5173112 (MEAT & DORIA)
CST60614AS (CASCO)
CST60614GS (CASCO)
20409416BN (REAL)
20409416OE (REAL)
6060614.0 (SANDO)
6060614.1 (SANDO)
STR2676 (ELECTROLOG)
STX201301 (STARDAX)
Applications
Applications
ALL
CATERPILLAR
Make
CATERPILLAR
