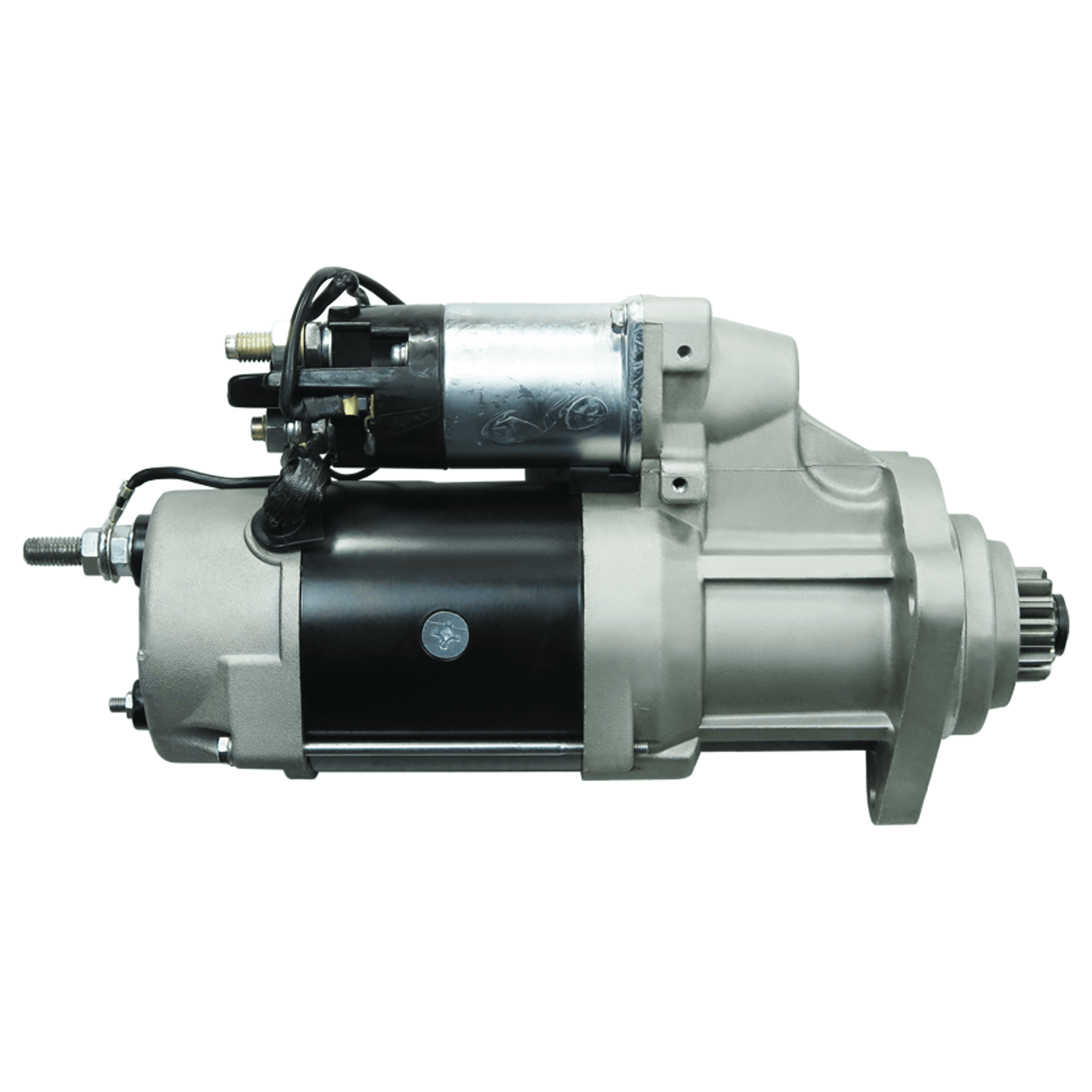

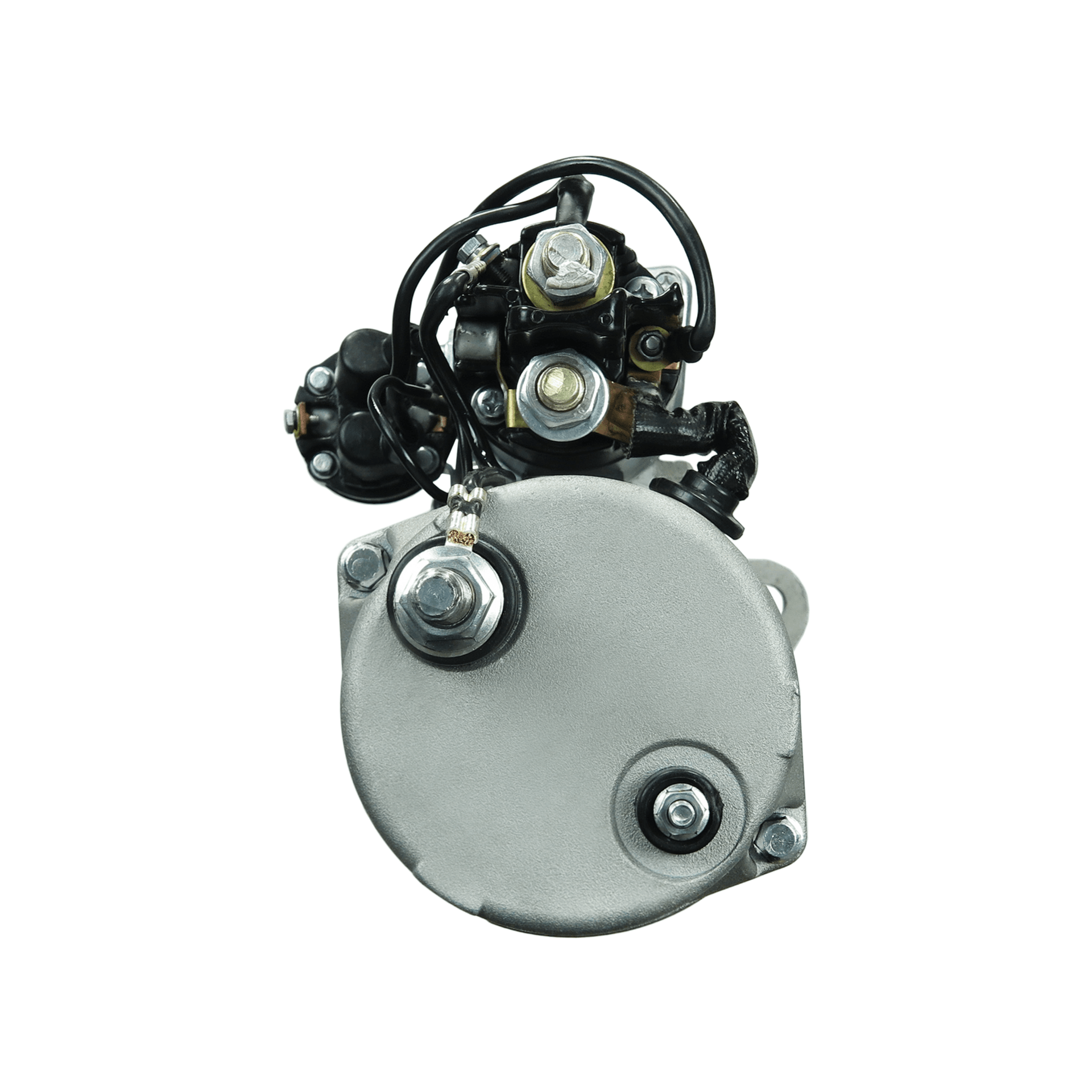

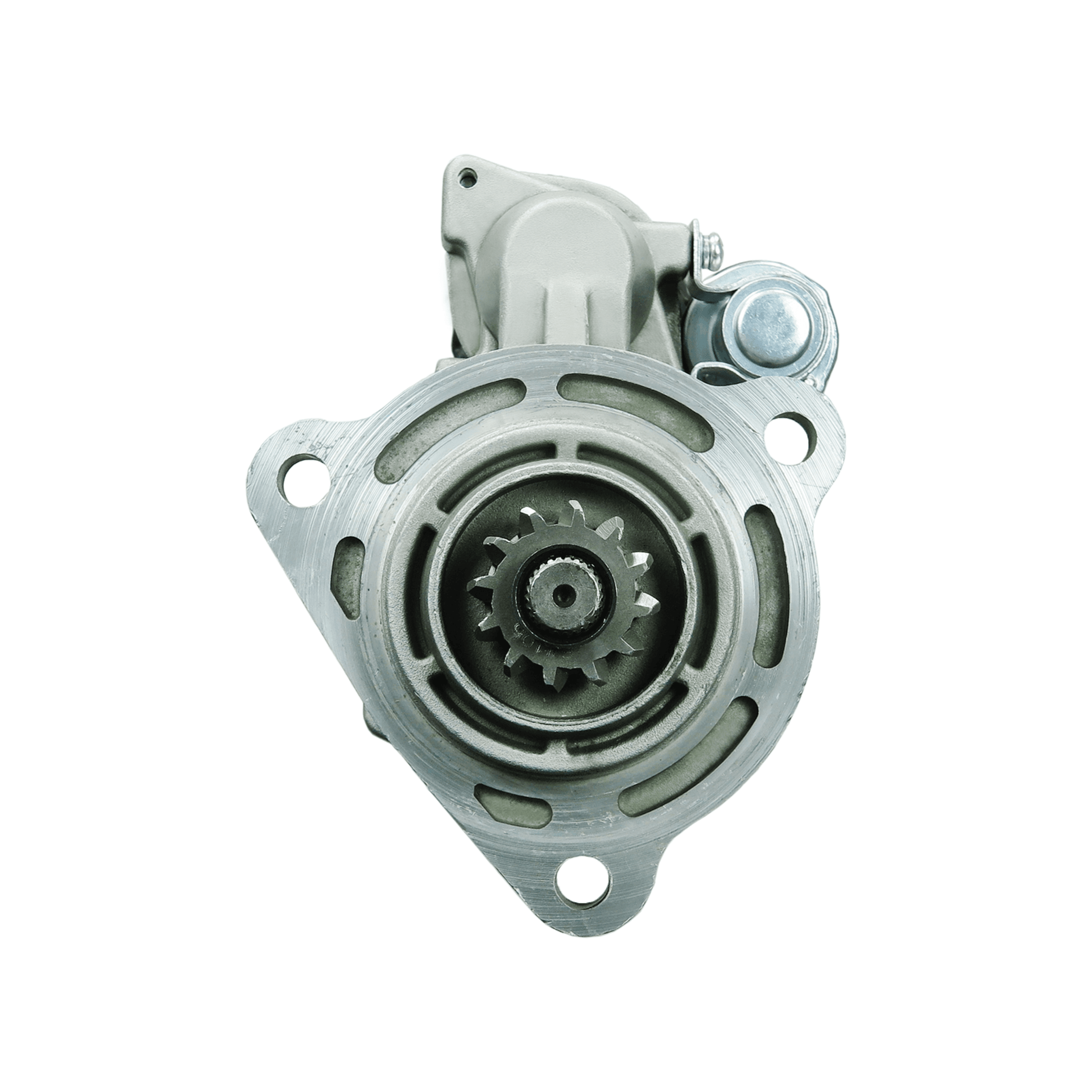

Starter XTLSTR6314
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
126 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
413 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
48 mm
No./teeth
12 qty
Power
8.3 kW
O.3 [ mm ]
126 mm
Insulated return
Yes
O.2 [ mm ]
126 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
View More
Starter XTLSTR6314
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
126 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
413 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
48 mm
No./teeth
12 qty
Power
8.3 kW
O.3 [ mm ]
126 mm
Insulated return
Yes
O.2 [ mm ]
126 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6314
Original Code
10461758
10479276
6803
7T0800
Equivalent Code (Vehicle Manufacturer)
114013 (CARGO)
F032114013 (CARGO)
140-39118 (ROBERT'S)
2-2349-DR-1 (WAI / TRANSPO)
6803N (WAI / TRANSPO)
6803R (WAI / TRANSPO)
201-39202 (DIXIE)
TS-1748 (DIXIE)
20409906BN (REAL)
20409906OE (REAL)
3102767 (CUMMINS)
6060609.0 (SANDO)
6060609.1 (SANDO)
91-01-4572 (WILSON)
91-01-4572N (WILSON)
CGB-1748 (AINDE)
CST60609AS (CASCO)
CST60609GS (CASCO)
MAV626090 (SIOM)
STD4013 (KRAUF)
STD6913 (KRAUF)
STD8913 (KRAUF)
STP4013 (KRAUF)
STR0274 (3EFFE)
STR80007 (WOODAUTO)
UD12365S (AS-PL)
STR2689 (ELECTROLOG)
7T0800 (CATERPILLAR)
STX201301 (STARDAX)
Applications
Applications
ALL
CATERPILLAR
Make
CATERPILLAR
