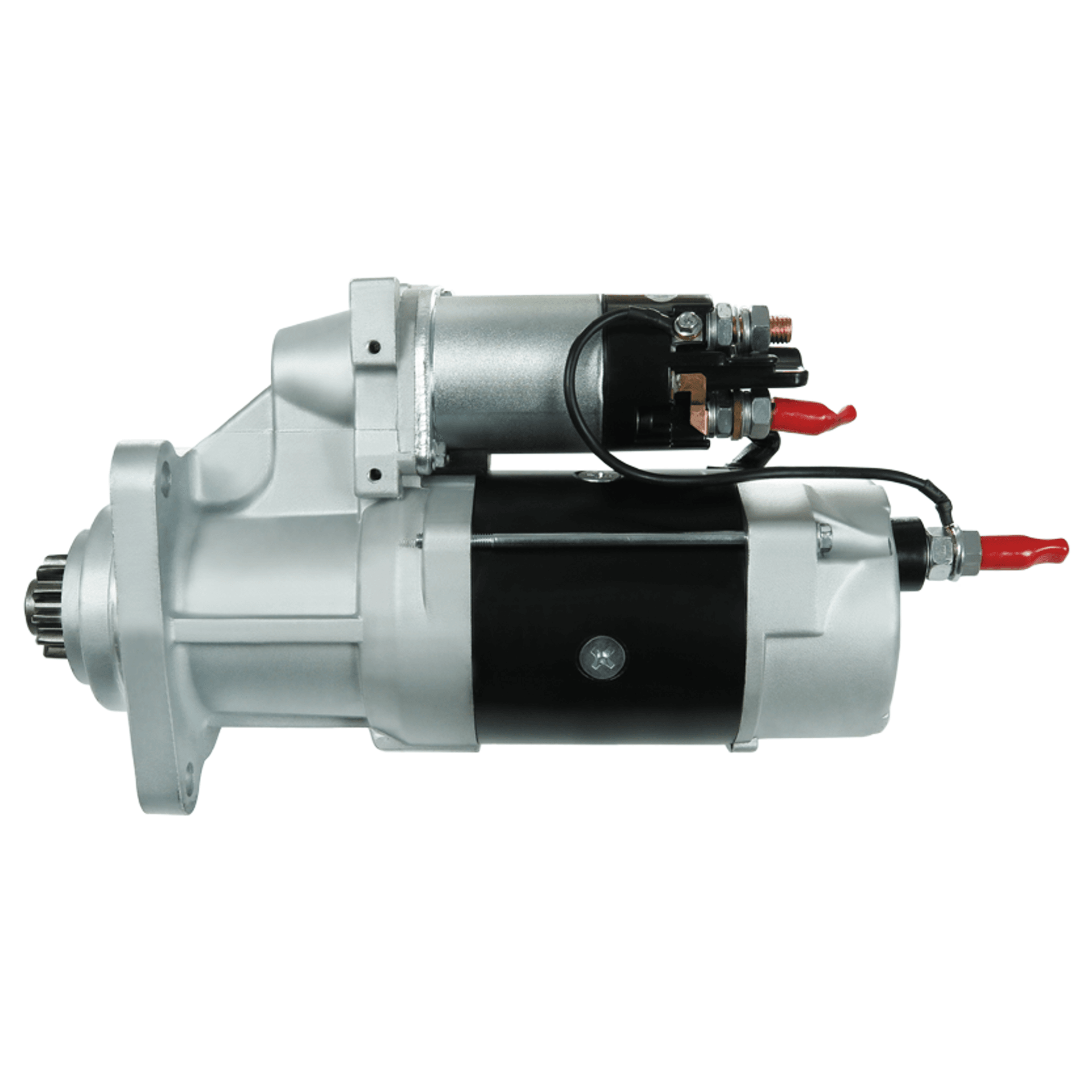

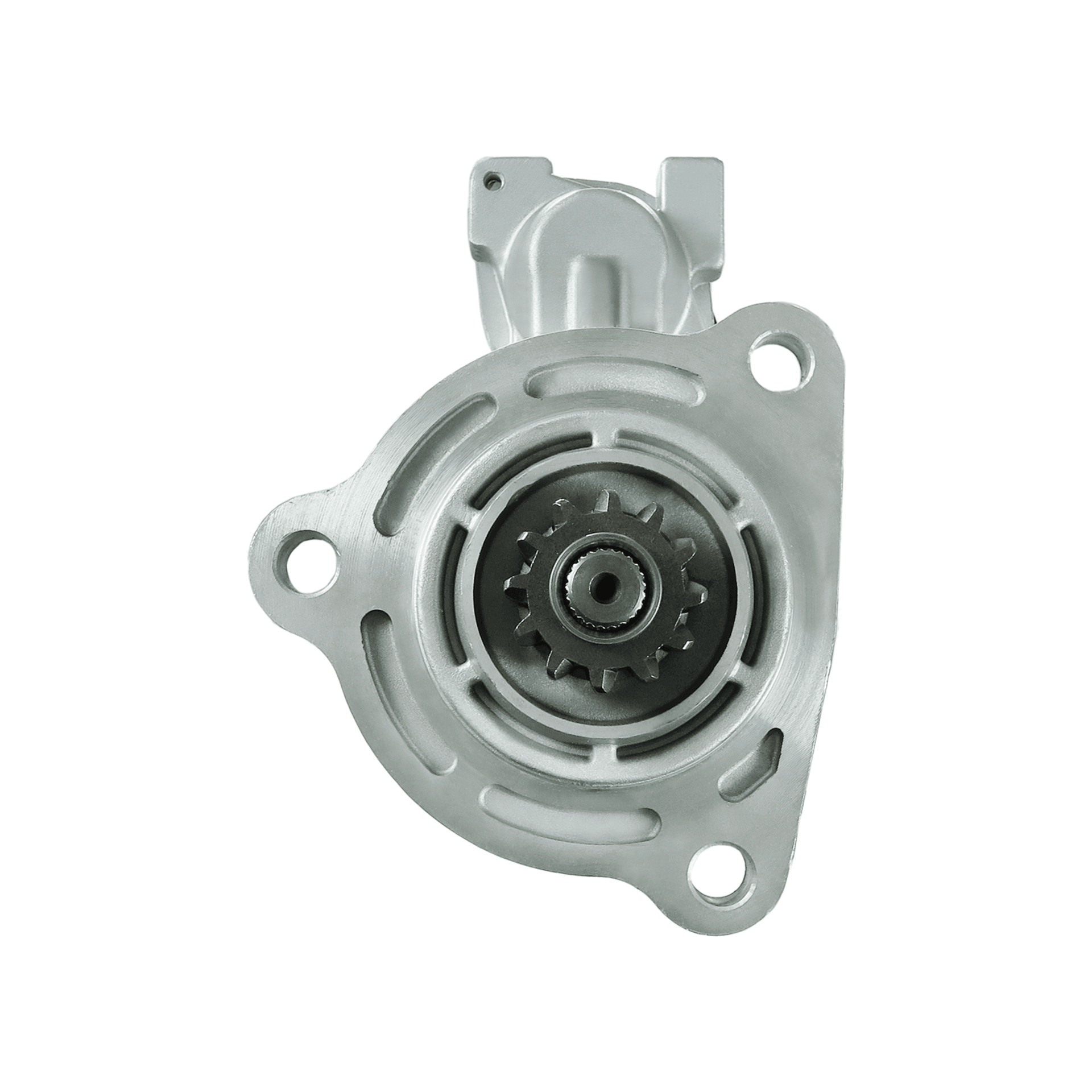

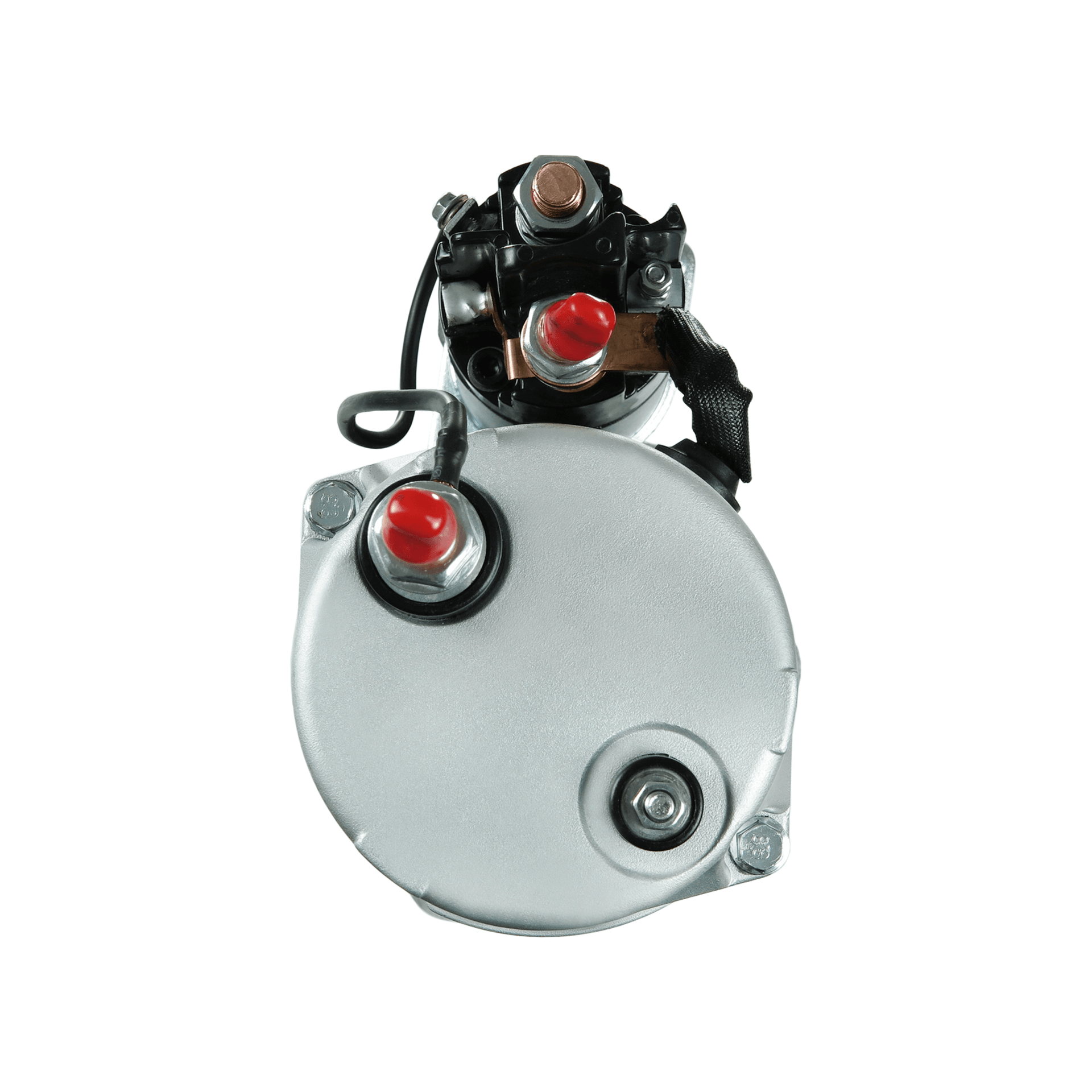

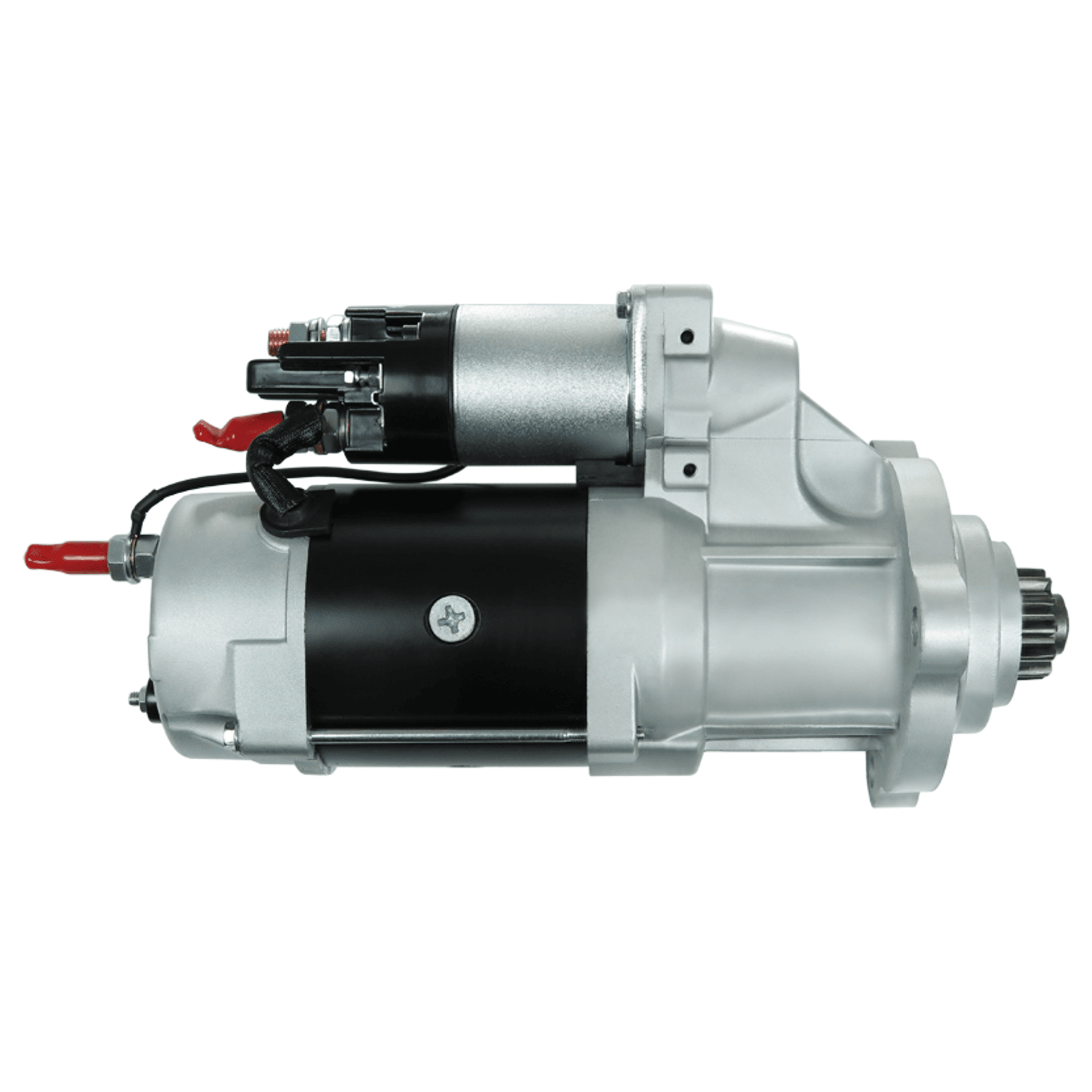

Starter XTLSTR6317
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
418 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
46 mm
No./teeth
12 qty
Power
8.3 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
14.50 mm
Voltage
24 V
C.3 [ mm ]
14.50 mm
C.2 [ mm ]
14.50 mm
View More
Starter XTLSTR6317
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
418 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
46 mm
No./teeth
12 qty
Power
8.3 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
14.50 mm
Voltage
24 V
C.3 [ mm ]
14.50 mm
C.2 [ mm ]
14.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6317
Original Code
3102763
6826
8200027
8200450
Equivalent Code (Vehicle Manufacturer)
2-2364-DR (WAI / TRANSPO)
6826N (WAI / TRANSPO)
6826R (WAI / TRANSPO)
254297D (KUHNER)
254297P (KUHNER)
3102763 (CUMMINS)
STR80008 (WOODAUTO)
UD12369S (AS-PL)
CST60617GS (CASCO)
20409716OE (REAL)
6060617.1 (SANDO)
STR2097 (ELECTROLOG)
5L2637 (CATERPILLAR)
75204899 (FIAT)
STX201301 (STARDAX)
Applications
Applications
ALL
CUMMINS
Make
CUMMINS
