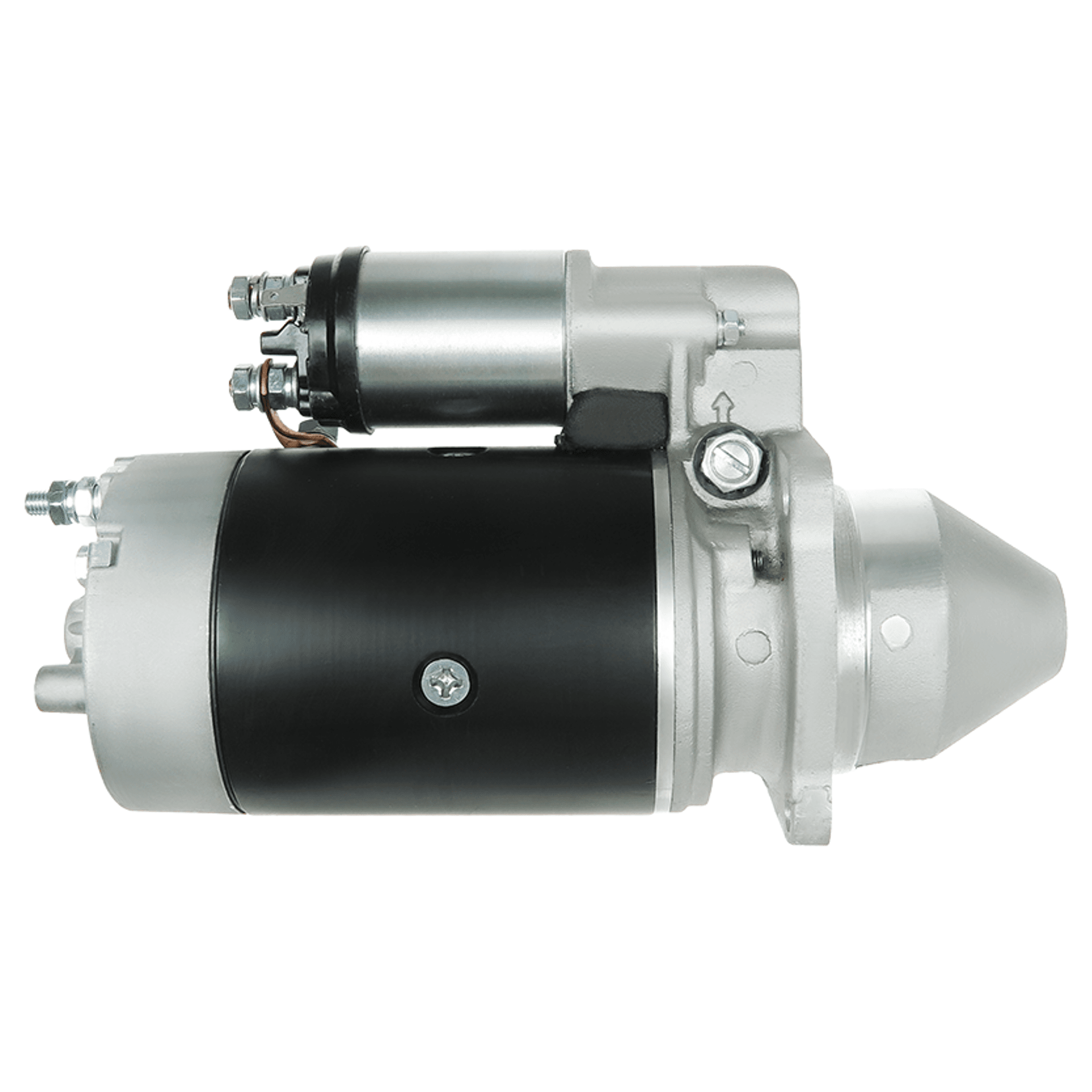

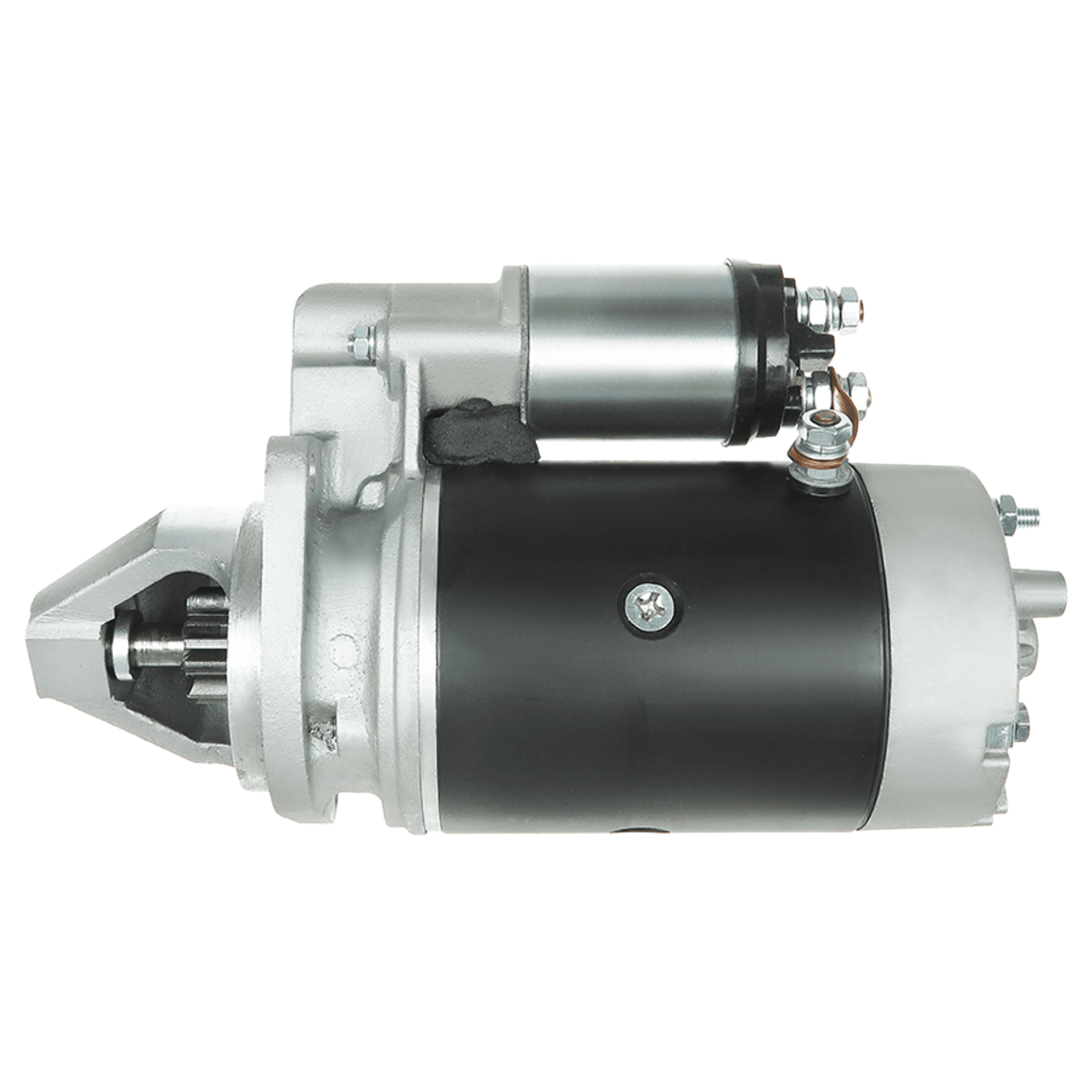

Starter XTLSTR6513
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
316 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
30 mm
No./teeth
9 qty
Power
2.1 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
10.00 mm
Voltage
12 V
C.3 [ mm ]
10.00 mm
C.2 [ mm ]
10.00 mm
View More
Starter XTLSTR6513
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
316 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
30 mm
No./teeth
9 qty
Power
2.1 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
10.00 mm
Voltage
12 V
C.3 [ mm ]
10.00 mm
C.2 [ mm ]
10.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6513
Original Code (Vehicle Manufacturer)
16173
25266
25266 (LUCAS)
25266A
25266A (LUCAS)
25359
25359 (LUCAS)
25371
25371 (LUCAS)
25389
25389 (LUCAS)
25620
25620 (LUCAS)
25674
25674 (LUCAS)
25719
25719 (LUCAS)
25720
25720 (LUCAS)
25734
25734 (LUCAS)
LRS00149
LRS00149 (LUCAS)
LRS00169
LRS00169 (LUCAS)
LRS00425
LRS00425 (LUCAS)
LRS149
LRS149 (LUCAS)
S4080S
UD19535S
0986050050
25-0139
16173N
Equivalent Code (Vehicle Manufacturer)
16173 (LESTER)
S4080S (AS-PL)
UD19535S (AS-PL)
0986050050 (BOSCH)
25-0139 (ELSTOCK)
16173N (WAI / TRANSPO)
Applications
Applications
ALL
AUSTIN
Make
Vehicle
Model Types
From
To
AUSTIN
AMBASSADOR I Fastback 2.0
20H
03/1982
10/1984
AUSTIN
PRINCESS 2 2000
20H
10/1978
10/1982
