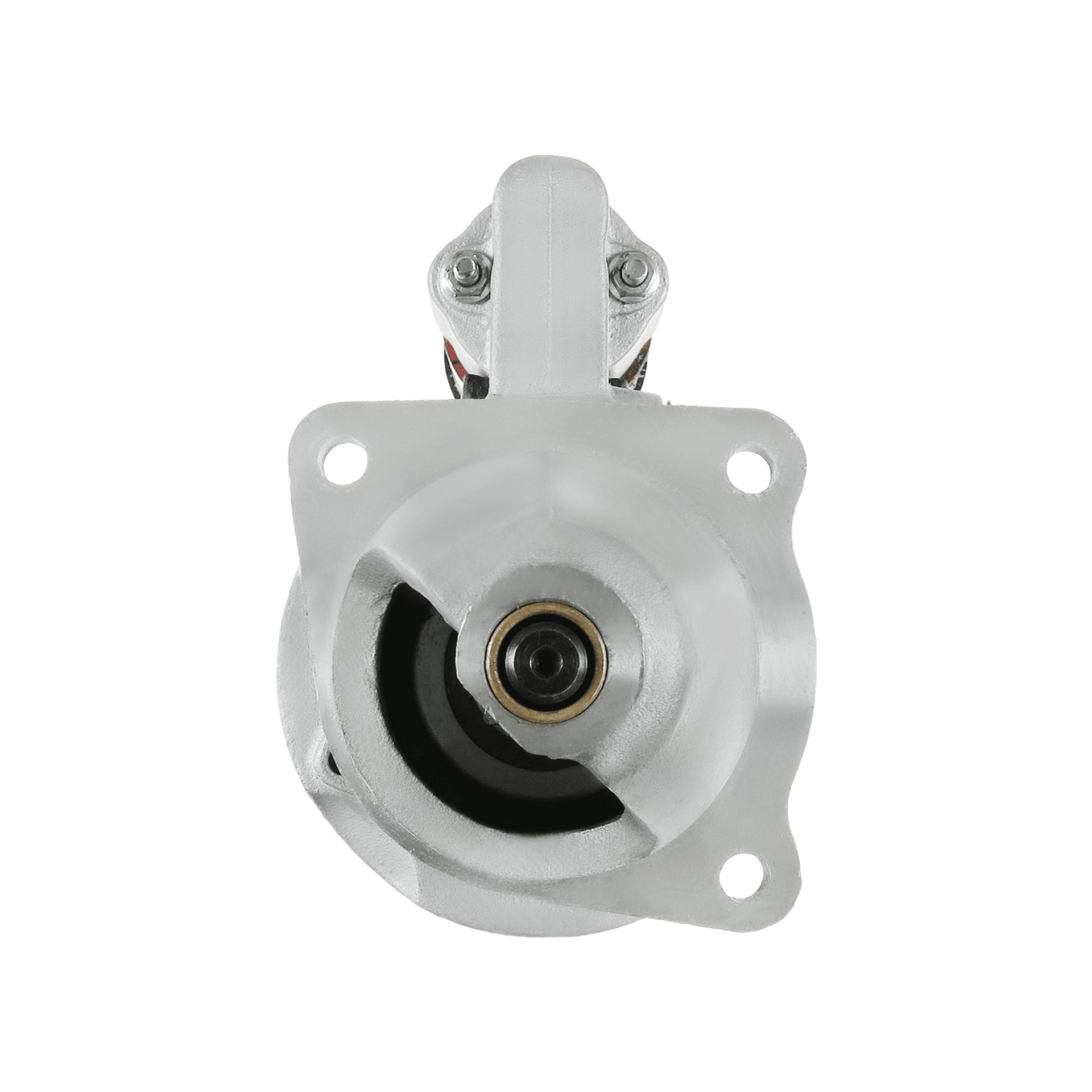

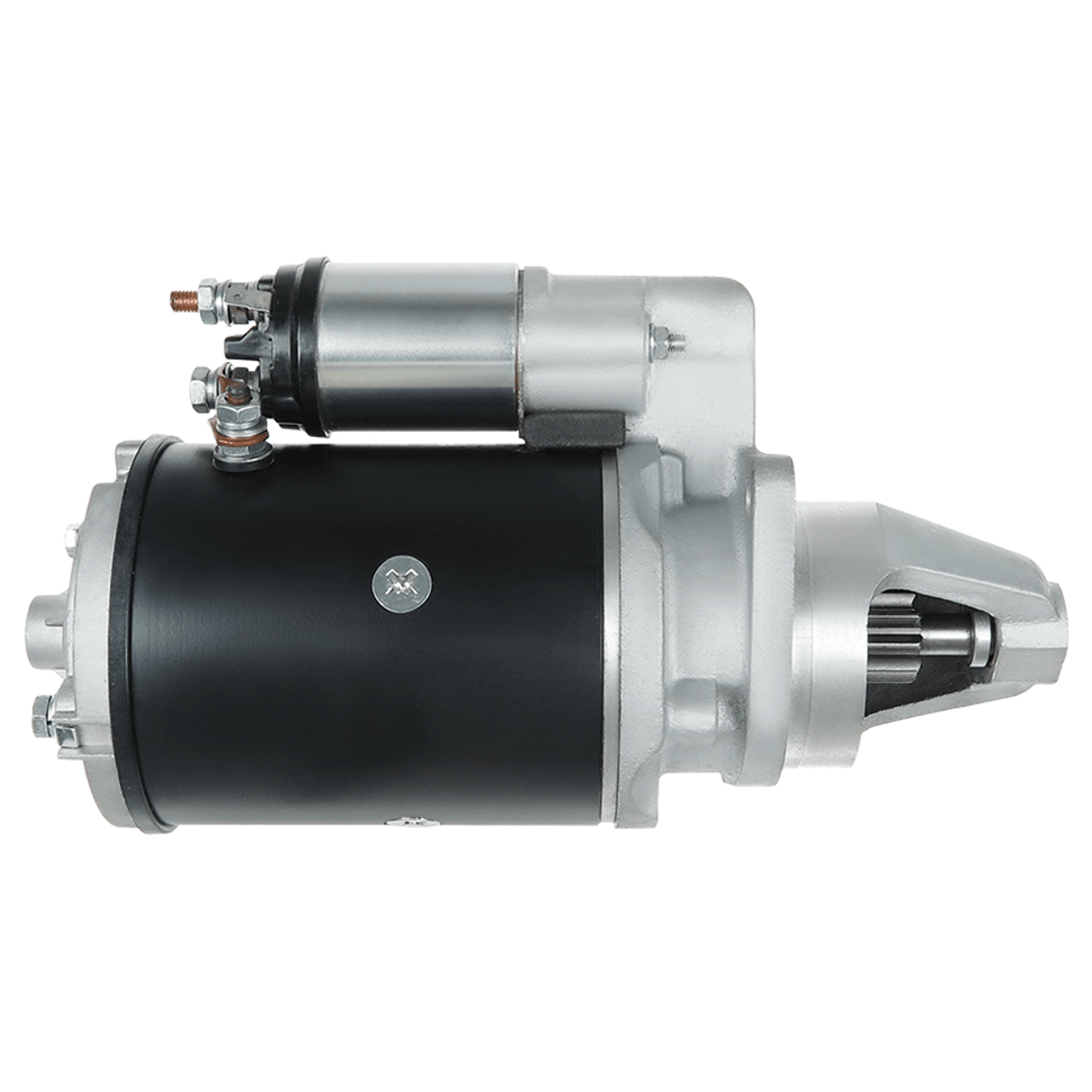

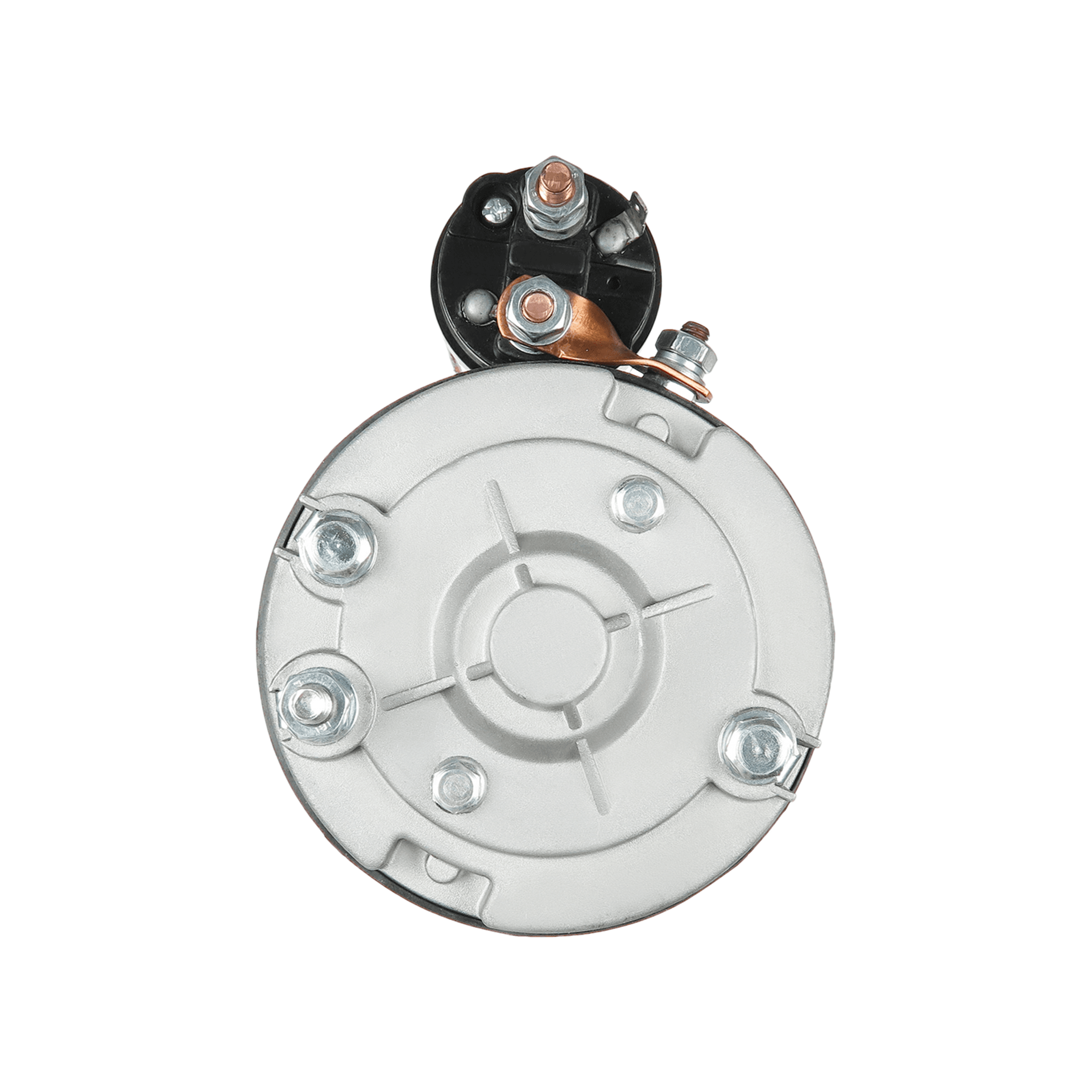

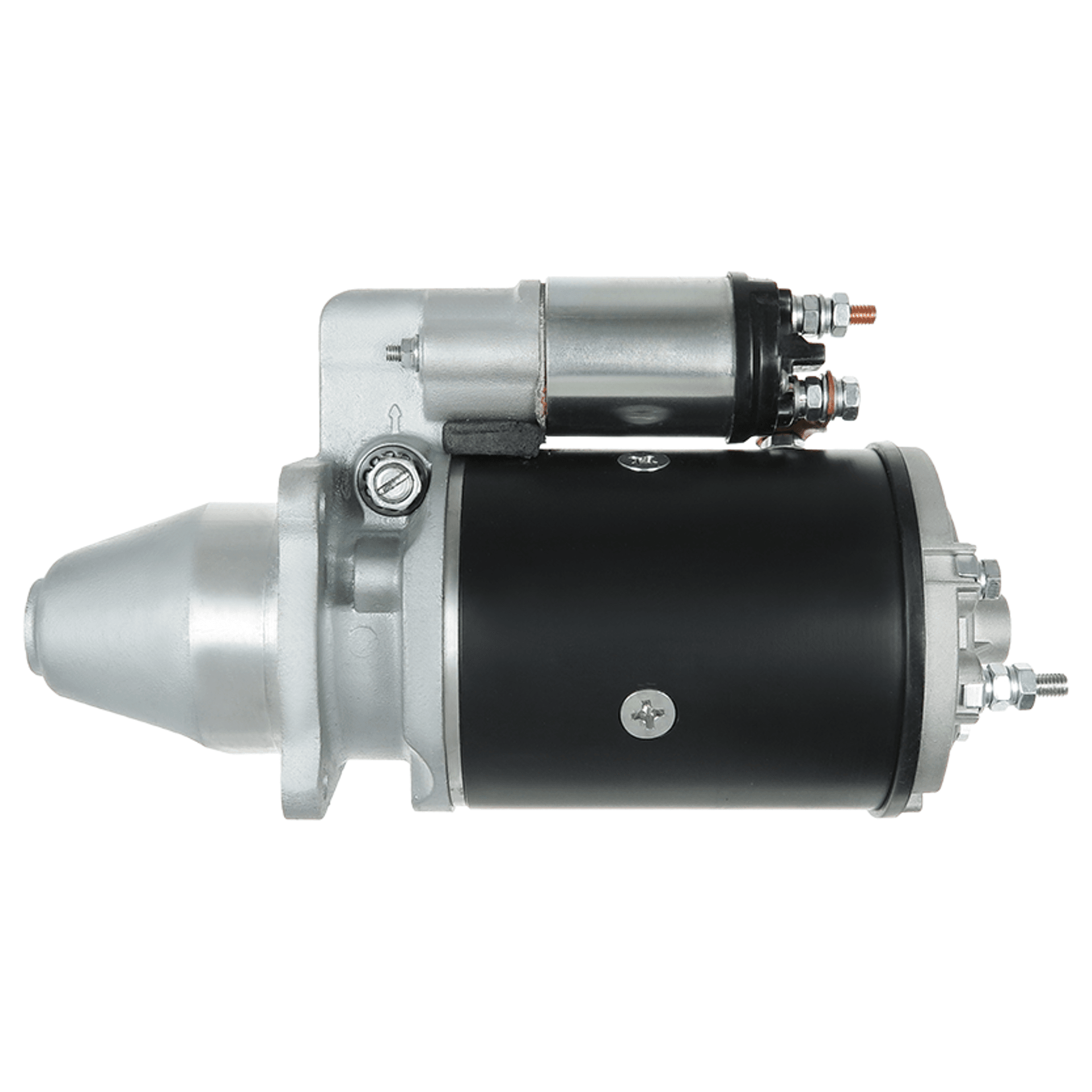

Starter XTLSTR6756
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
349 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
47.5 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
2.8 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
10.50 mm
Voltage
12 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
View More
Starter XTLSTR6756
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
349 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
47.5 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
2.8 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
10.50 mm
Voltage
12 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR6756
Original Code
2-3170-2W
2873001
37701400
AZE4245
LRS302
NSB532
S1377
Equivalent Code (Vehicle Manufacturer)
10701 (KUHNER)
110459 (CARGO)
F032110459 (CARGO)
20405431BN (REAL)
20405431OE (REAL)
20500302 (PRESTOLITE)
22.3122 (LAUBER)
25-0015 (ELSTOCK)
30670N (WAI / TRANSPO)
538504 (DUCELLIER)
6025134 (SANDO)
8761 (CEVAM)
8EA730217-001 (HELLA)
AES3102 (AUTOELECTRO)
ALTS894 (3EFFE)
STRF251 (3EFFE)
CS701 (HC PARTS)
CST25134AS (CASCO)
CST25134GS (CASCO)
DRS3123 (DELCO)
MAV3300 (SIOM)
S4012 (AS-PL)
UD12429S (AS-PL)
STR25021 (WOODAUTO)
STR4083 (ELECTROLOG)
1447732MI (PERKINS)
1447732R1 (PERKINS)
2873001 (PERKINS)
2873B056 (PERKINS)
3581576MI (PERKINS)
3581576R1 (PERKINS)
37701400 (PERKINS)
S125 (LEYLAND)
STX200542 (STARDAX)
STX210086 (STARDAX)
Applications
Applications
ALL
BEDFORD
PERKINS
Make
BEDFORD
PERKINS
