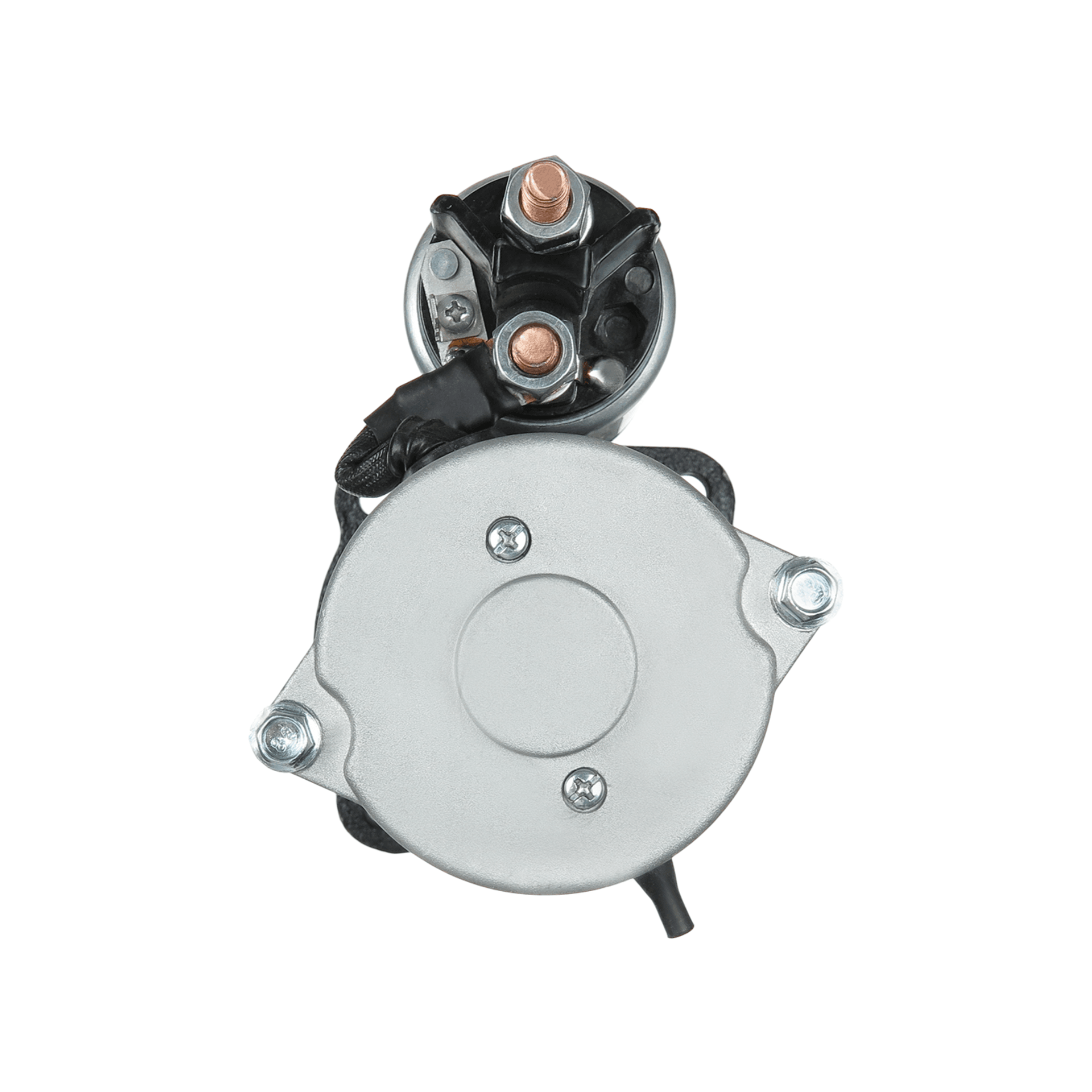

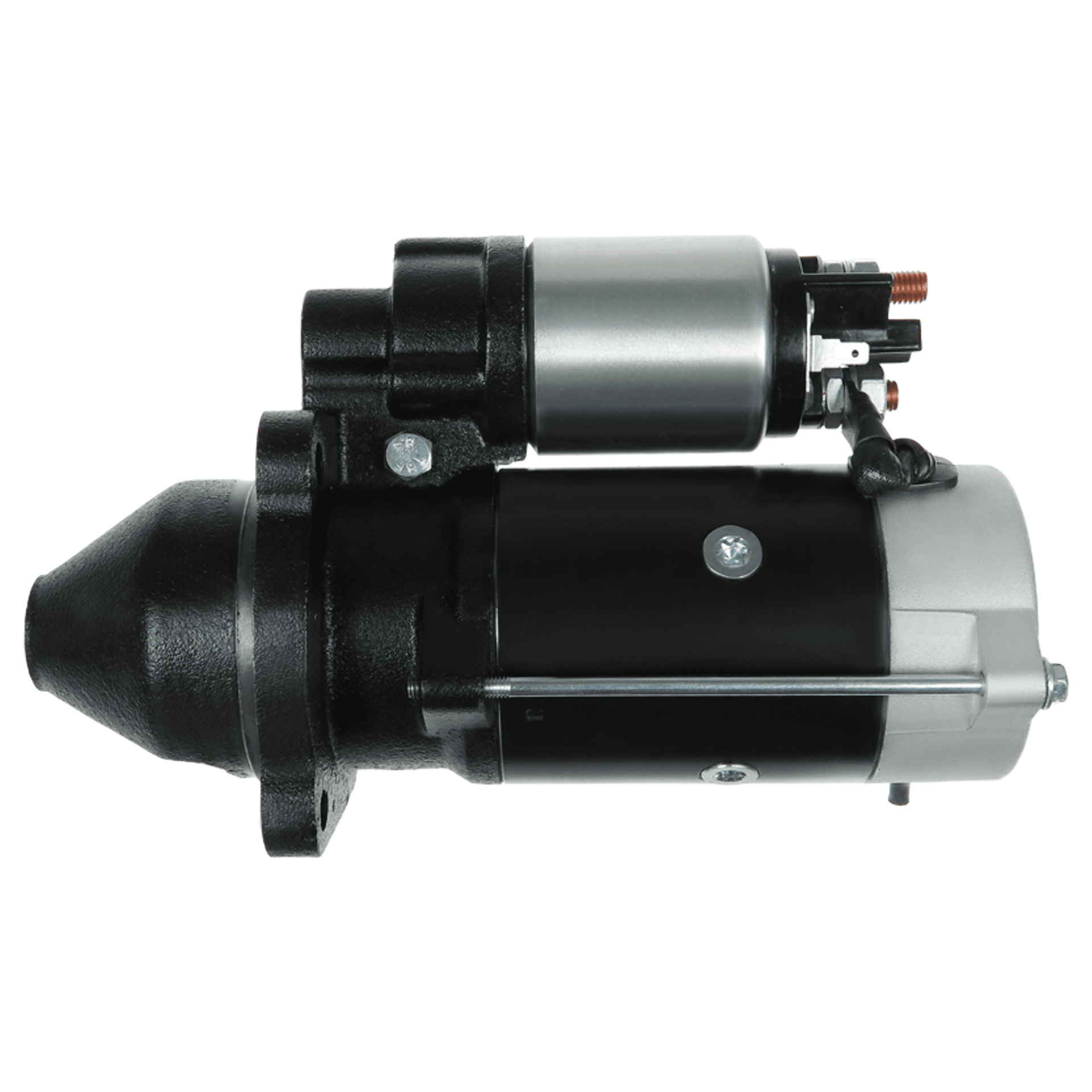

Starter XTLSTR7258
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
277 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
27.5 mm
No./teeth
10 qty
Power
3.2 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
10.50 mm
Voltage
12 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
View More
Starter XTLSTR7258
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
277 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
27.5 mm
No./teeth
10 qty
Power
3.2 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
10.50 mm
Voltage
12 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
Applications
Original Code
AZE4573
IS1189
Equivalent Code (Vehicle Manufacturer)
182-30166 (ROBERT'S)
25-5050 (ELSTOCK)
47715266 (FIAT)
504388220 (FIAT)
84208918 (FIAT)
87583927 (FIAT)
504015749 (IVECO)
5801577137 (IVECO)
8255 (CEVAM)
91-23-6570 (WILSON)
WhatsApp inquiry
Email inquiry
Starter XTLSTR7258
MAHMS24 (WOODAUTO)
MS24 (MAHLE)
MS625OF (MAHLE)
STB4247 (KRAUF)
STI4247 (KRAUF)
S9295S (AS-PL)
UD05595S (AS-PL)
UD15364S (AS-PL)
331932 (LOGISTIK)
STR7866 (ELECTROLOG)
STR79151 (ELECTROLOG)
STX210072 (STARDAX)
