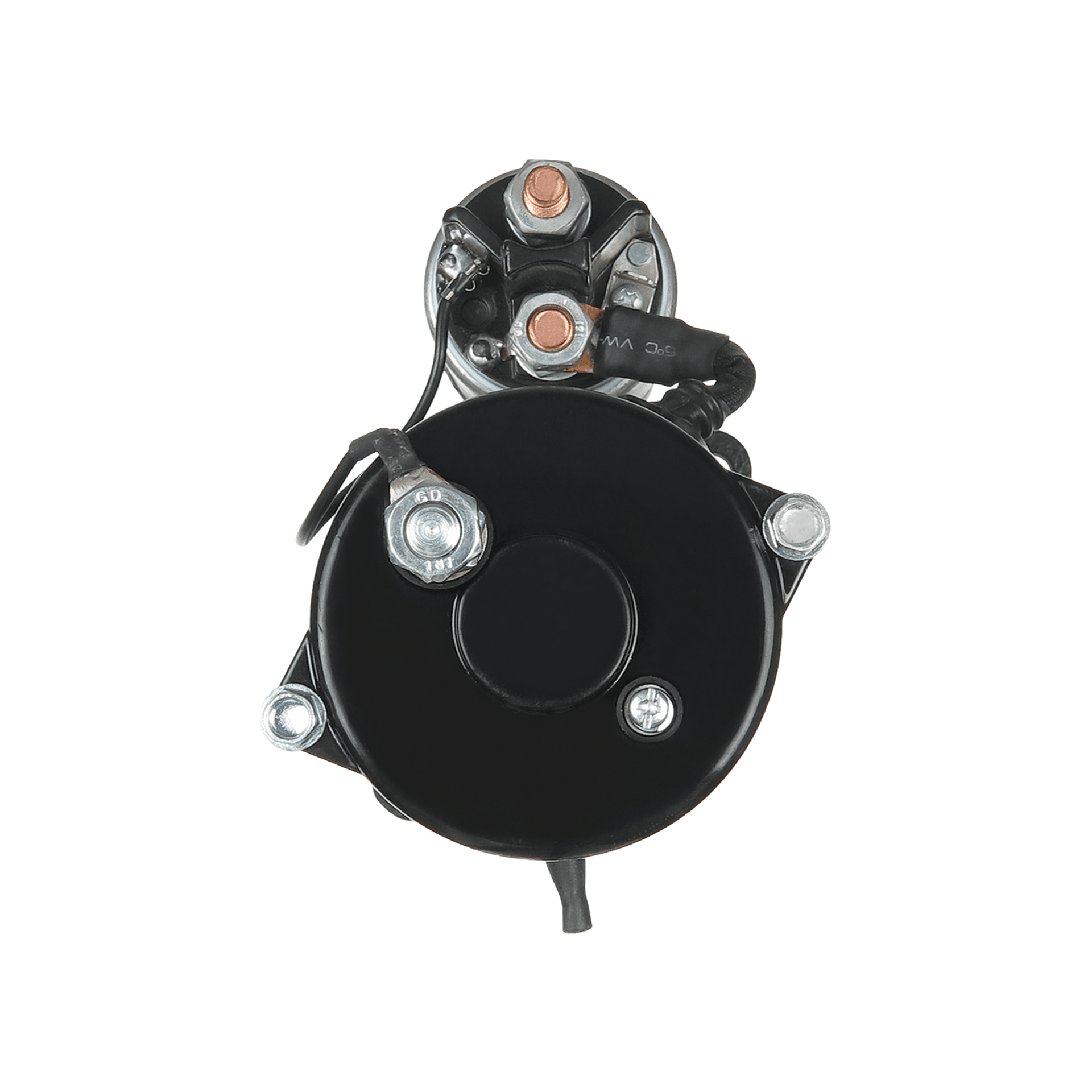

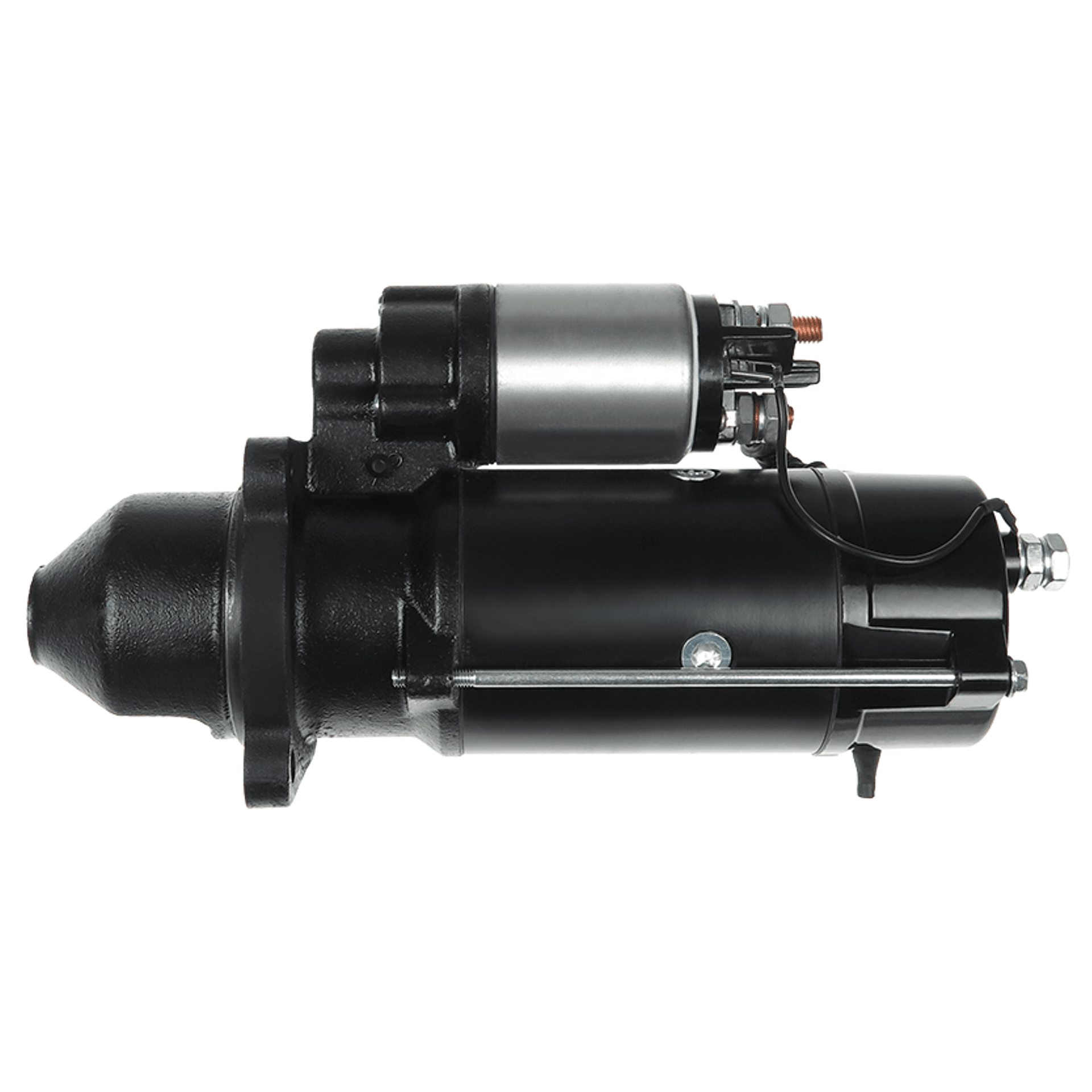

Starter XTLSTR7315
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
341 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
29 mm
No./teeth
10 qty
Power
4 kW
O.3 [ mm ]
90 mm
Insulated return
Yes
O.2 [ mm ]
127 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR7315
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
341 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
29 mm
No./teeth
10 qty
Power
4 kW
O.3 [ mm ]
90 mm
Insulated return
Yes
O.2 [ mm ]
127 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR7315
Original Code
AZF4104
N37637
S1130
Equivalent Code (Vehicle Manufacturer)
182-30410 (ROBERT'S)
20419926OE (REAL)
255923M (KUHNER)
3704011 (CATERPILLAR)
N40983 (CATERPILLAR)
6021629.1 (SANDO)
701.510.103 (PSH)
701.510.103.311 (PSH)
S135.411 (PSH)
S145.525 (PSH)
72735727 (MAHLE)
MS99 (MAHLE)
CST21629GS (CASCO)
MAV236290 (SIOM)
N37637 (PERKINS)
SG9137 (GHIBAUDI)
UD20931S (AS-PL)
WRM21629OE (WROOM)
MAHMS99 (WOODAUTO)
STR7931 (ELECTROLOG)
Applications
Applications
ALL
PERKINS
Make
PERKINS
