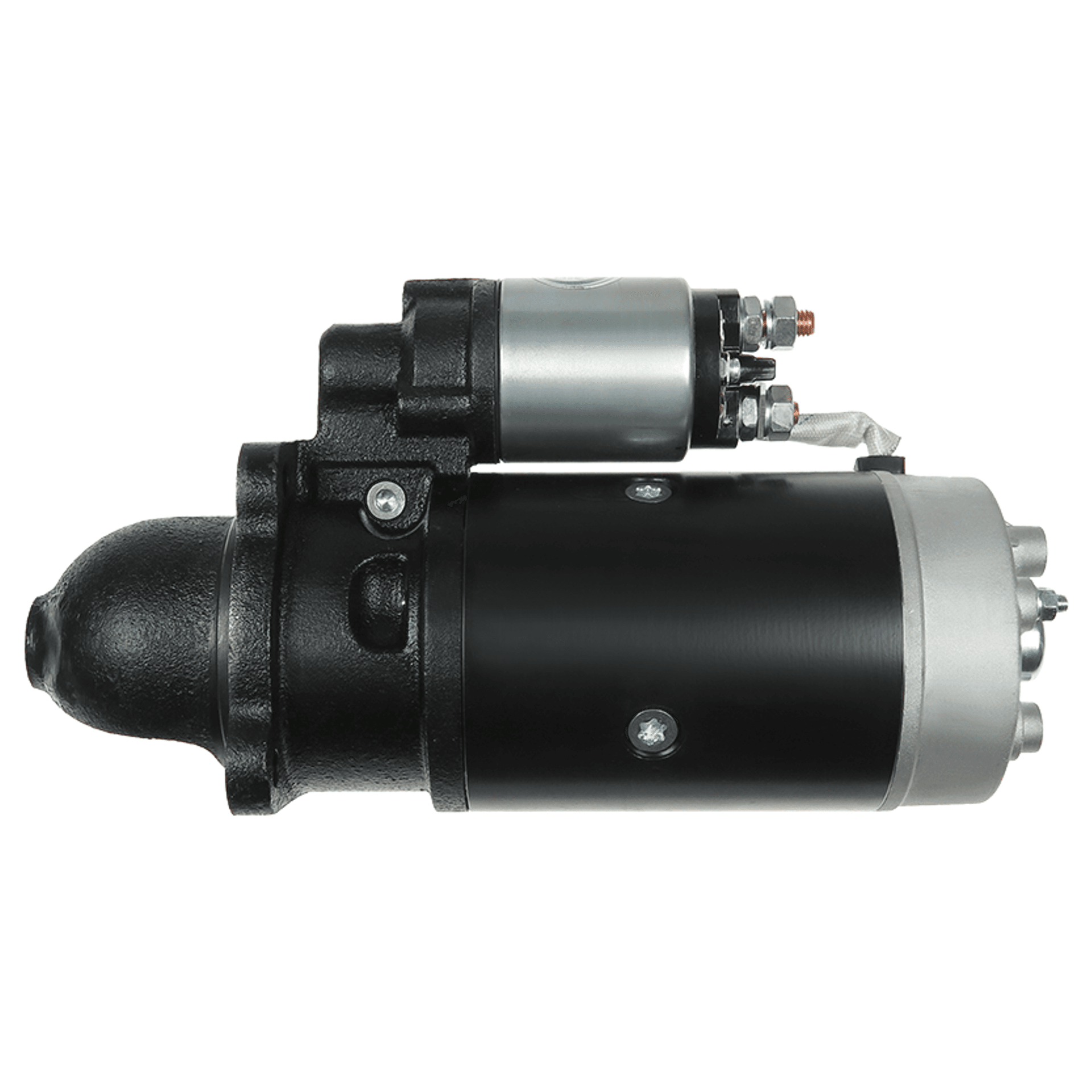

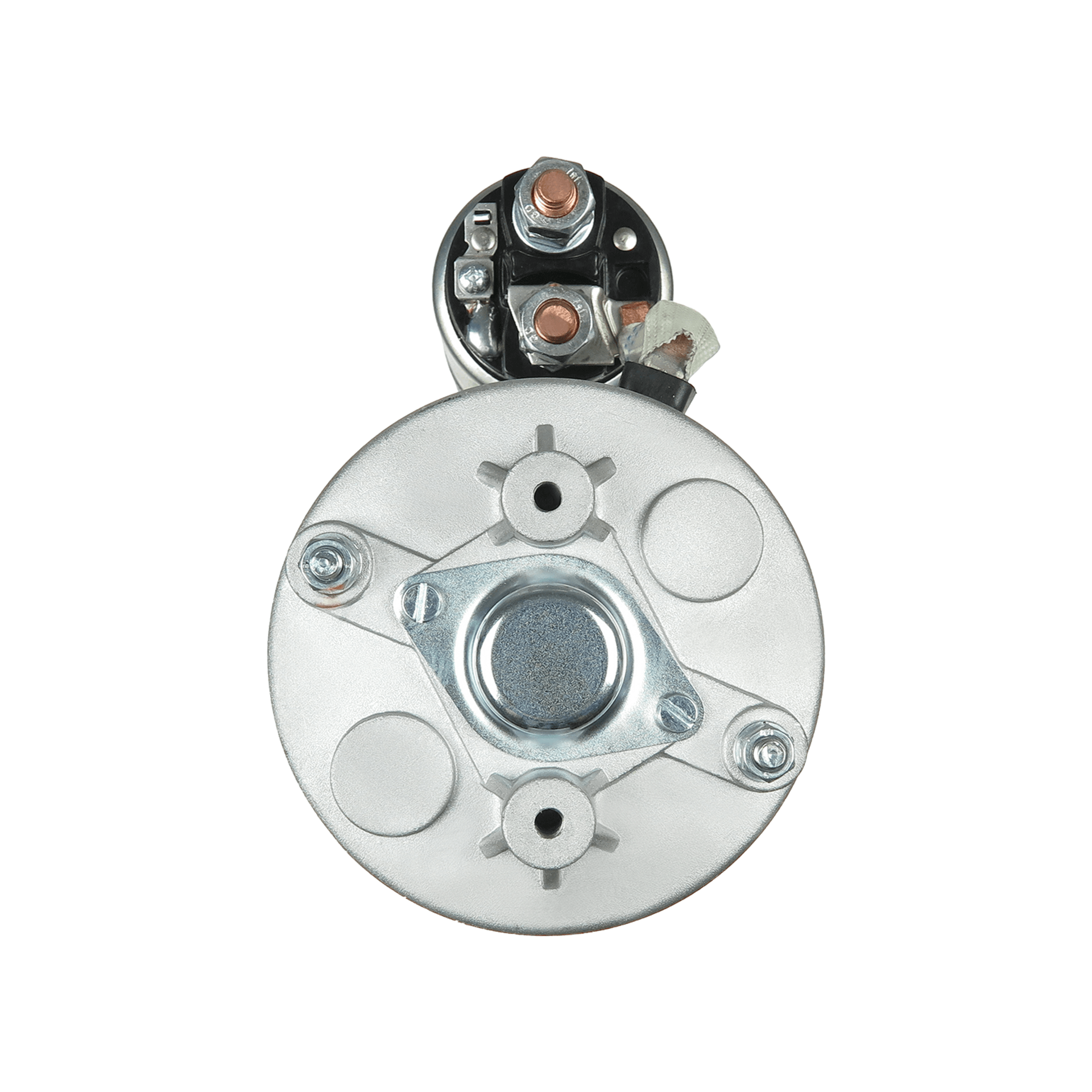

Starter XTLSTR7321
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
340 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
29 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
4 kW
O.3 [ mm ]
127.5 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR7321
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
340 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
29 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
4 kW
O.3 [ mm ]
127.5 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
Applications
Original Code
18251
2-2285-BO
2873D304
IS1326
Equivalent Code (Vehicle Manufacturer)
109-2361 (CATERPILLAR)
OR1903 (CATERPILLAR)
112037 (CARGO)
F032112037 (CARGO)
154011053 (FIAT)
18251N (WAI / TRANSPO)
19024260 (DELCO)
DRS0039 (DELCO)
WhatsApp inquiry
Email inquiry
Starter XTLSTR7321
20401176BN (REAL)
20401176EL (REAL)
2873D304 (PERKINS)
3181A027 (PERKINS)
3872D304 (PERKINS)
45-2353 (ELSTOCK)
CGB-23064 (AINDE)
CGB-52353 (AINDE)
CST10671AS (CASCO)
CST10671ES (CASCO)
LRS01917 (LUCAS)
LRS1917 (LUCAS)
MAV126710 (SIOM)
RNL368085 (RNL)
STR22032 (WOODAUTO)
PRSS037 (3EFFE)
STRS037 (3EFFE)
220273 (ERA)
S24BH0099A2 (SIDAT)
331793 (LOGISTIK)
6010671.0 (SANDO)
6010671.3 (SANDO)
701.001.103.010 (PSH)
701.001.103.016 (PSH)
701.001.103.018 (PSH)
701.001.103.510 (PSH)
701.506.103.090 (PSH)
S135.246 (PSH)
S135.322 (PSH)
11702594 (VOLVO)
1702594 (VOLVO)
9011702594 (VOLVO)
ANM12259 (ANDEL)
STB2137 (KRAUF)
11.131.409 (ISKRA / LETRIKA)
AZF4110 (ISKRA / LETRIKA)
IS1326 (ISKRA / LETRIKA)
72735661 (MAHLE)
MS33 (MAHLE)
S0170 (AS-PL)
UD03451S (AS-PL)
STR1312 (ELECTROLOG)
714/34000 (JCB)
T63701001 (MISCELLANEOUS)
