Starter XTLSTR7332 | SINTLY
Previous slide
Next slide

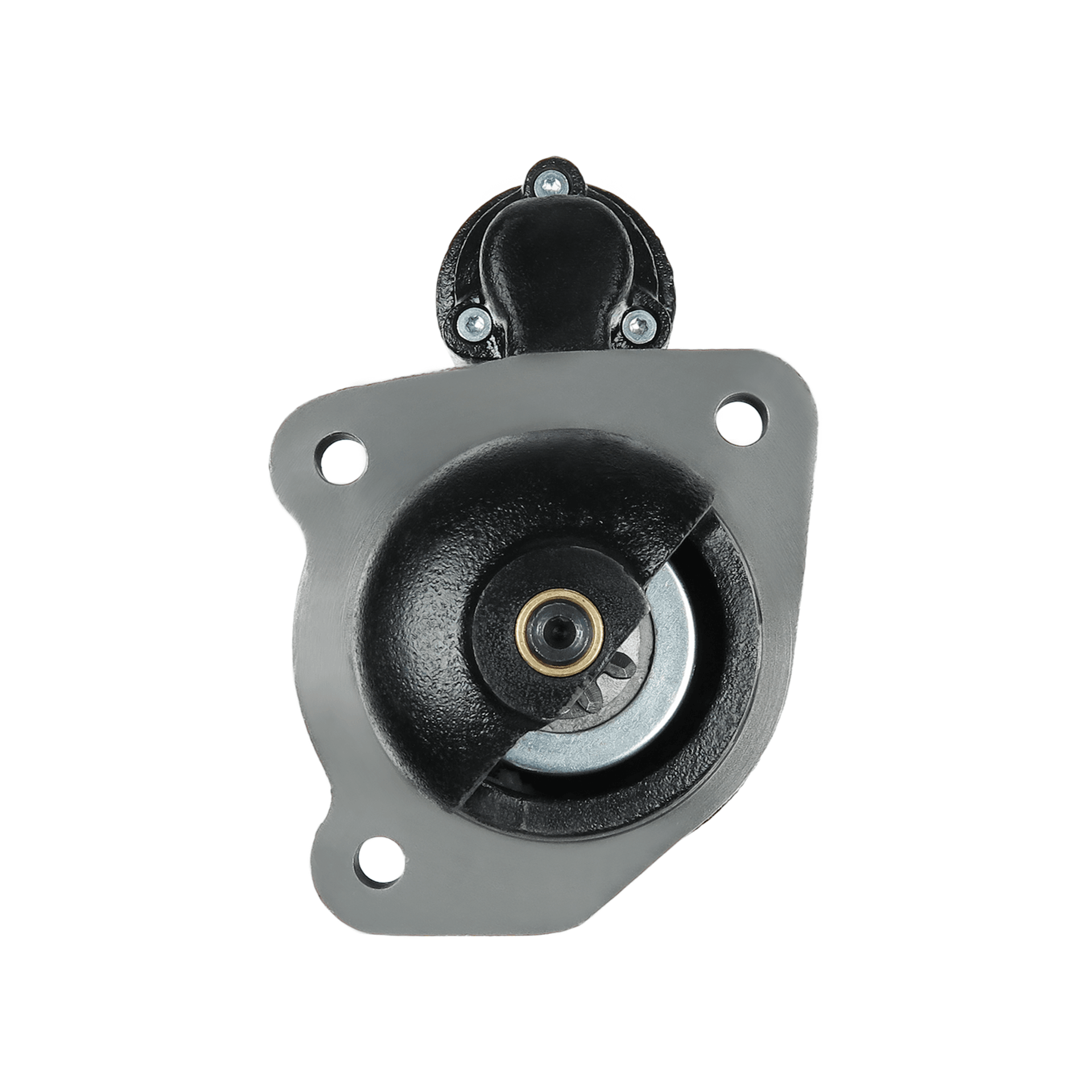

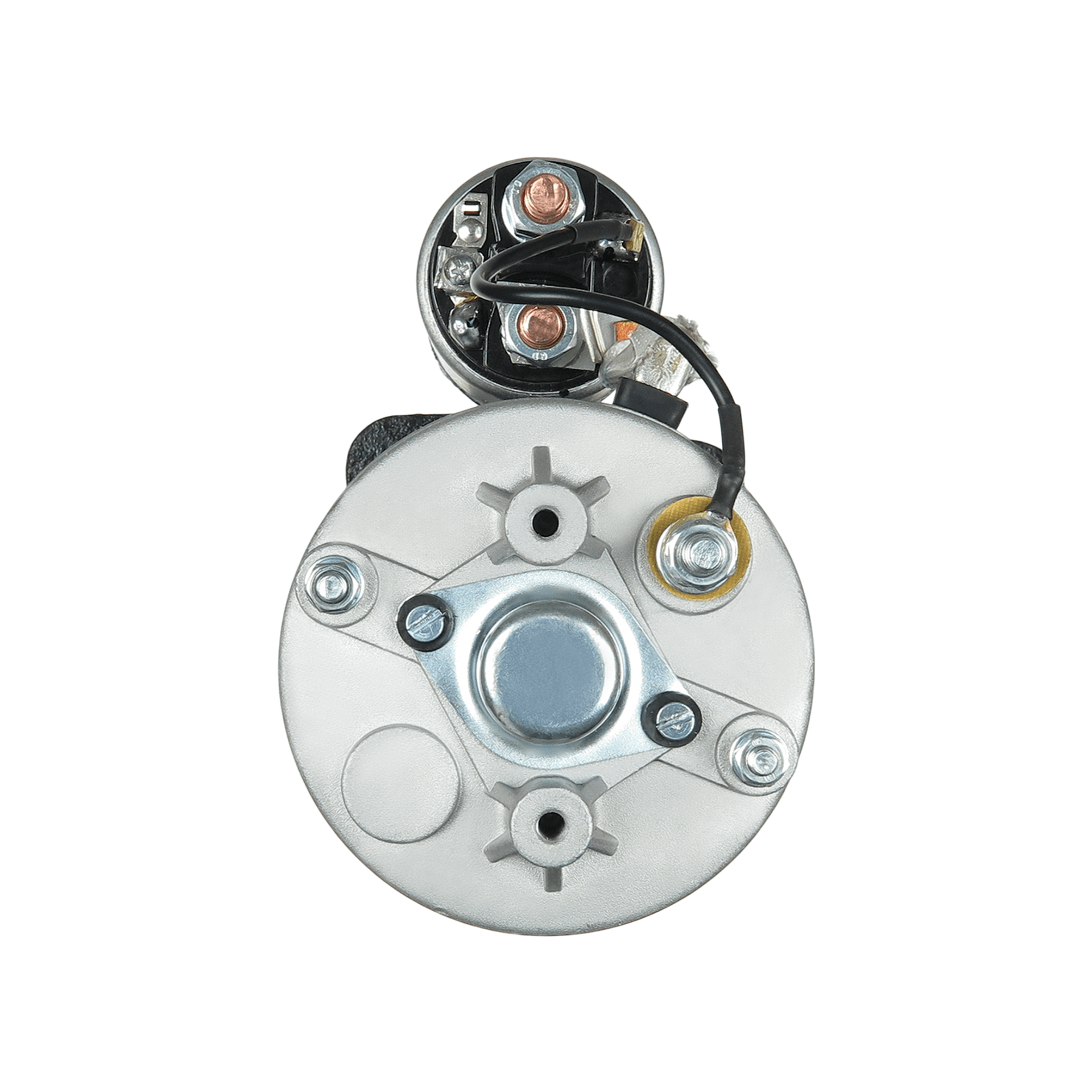

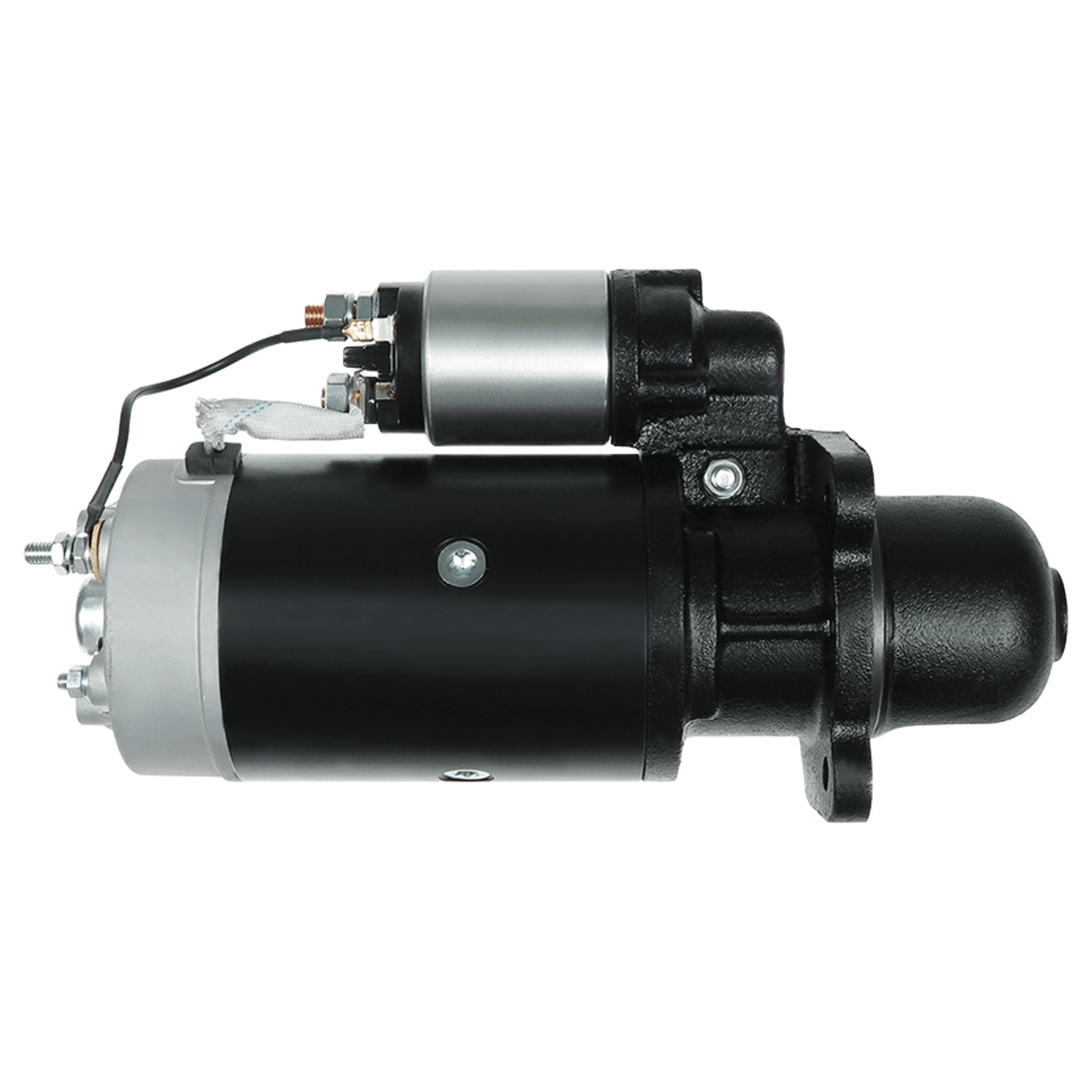

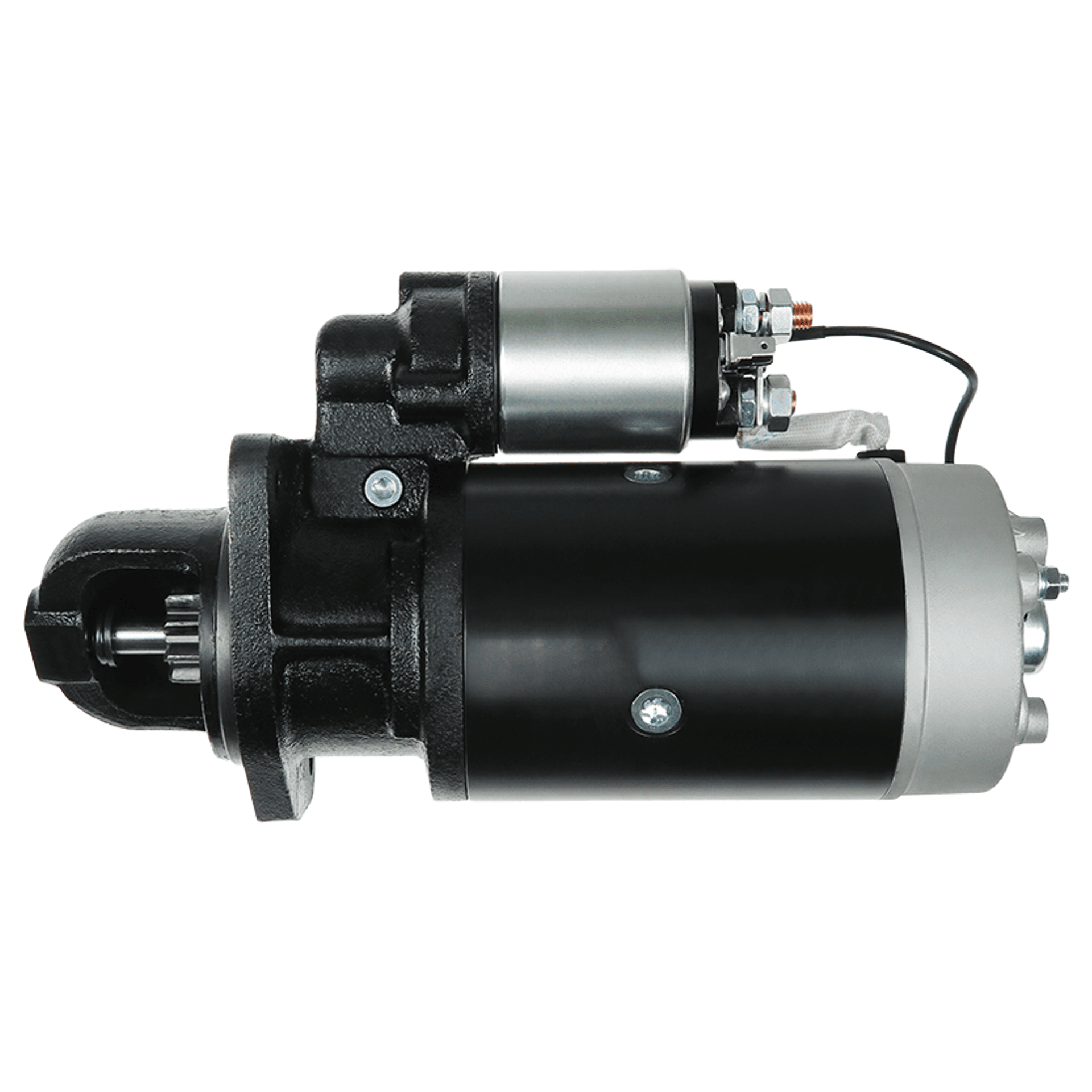

Starter XTLSTR7332
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
350 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
28 mm
No./teeth
9 qty
Power
4 kW
O.3 [ mm ]
90 mm
Insulated return
Yes
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR7332
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
350 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
28 mm
No./teeth
9 qty
Power
4 kW
O.3 [ mm ]
90 mm
Insulated return
Yes
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR7332
Original Code
1173241
AZJ3262
Equivalent Code (Vehicle Manufacturer)
6209190 (VOLVO)
01173241 (KHD)
01173560 (KHD)
01182933 (KHD)
01183243 (KHD)
01183246 (KHD)
1161422 (KHD)
1164995 (KHD)
1172099 (KHD)
1173241 (KHD)
1173560 (KHD)
11.130.741 (ISKRA / LETRIKA)
11.131.667 (ISKRA / LETRIKA)
11.131.868 (ISKRA / LETRIKA)
11.132.141 (ISKRA / LETRIKA)
AZF4173 (ISKRA / LETRIKA)
AZF4233 (ISKRA / LETRIKA)
AZF4313 (ISKRA / LETRIKA)
AZJ3262 (ISKRA / LETRIKA)
IS0741 (ISKRA / LETRIKA)
IS1246 (ISKRA / LETRIKA)
120-30124 (ROBERT'S)
20401116 (REAL)
254769 (KUHNER)
254769M (KUHNER)
260-67252 (DIXIE)
72735699 (MAHLE)
72735990 (MAHLE)
MS362 (MAHLE)
MS71 (MAHLE)
88212349 (POWERMAX)
BOS0001368008 (WOODAUTO)
MAHMS362 (WOODAUTO)
MAHMS71 (WOODAUTO)
STR22008 (WOODAUTO)
CST10611AS (CASCO)
CST10611ES (CASCO)
19070148 (DELCO)
19083004 (DELCO)
DRS0265 (DELCO)
DS1375 (DELCO)
SG0056 (GHIBAUDI)
STB0530 (KRAUF)
UD16597S (AS-PL)
ANM12485X (ANDEL)
330385 (LOGISTIK)
PRSS083 (3EFFE)
STRS083 (3EFFE)
05710903 (BOMAG)
05710912 (BOMAG)
551.016.093.010 (PSH)
551.016.093.016 (PSH)
551.016.093.210 (PSH)
551.016.093.311 (PSH)
S133.435 (PSH)
S144.578 (PSH)
6010611.0 (SANDO)
6010611.3 (SANDO)
6107017 (LIEBHERR)
6200662 (LIEBHERR)
01183685 (DEUTZ)
01183720 (DEUTZ)
03047129 (DEUTZ)
STR1070 (ELECTROLOG)
STR78017 (ELECTROLOG)
STR7976 (ELECTROLOG)
42522641 (IVECO)
1516768R (DAF)
1701065 (FAUN)
E0041565 (POCLAIN)
Applications
Applications
ALL
IVECO
Make
IVECO
