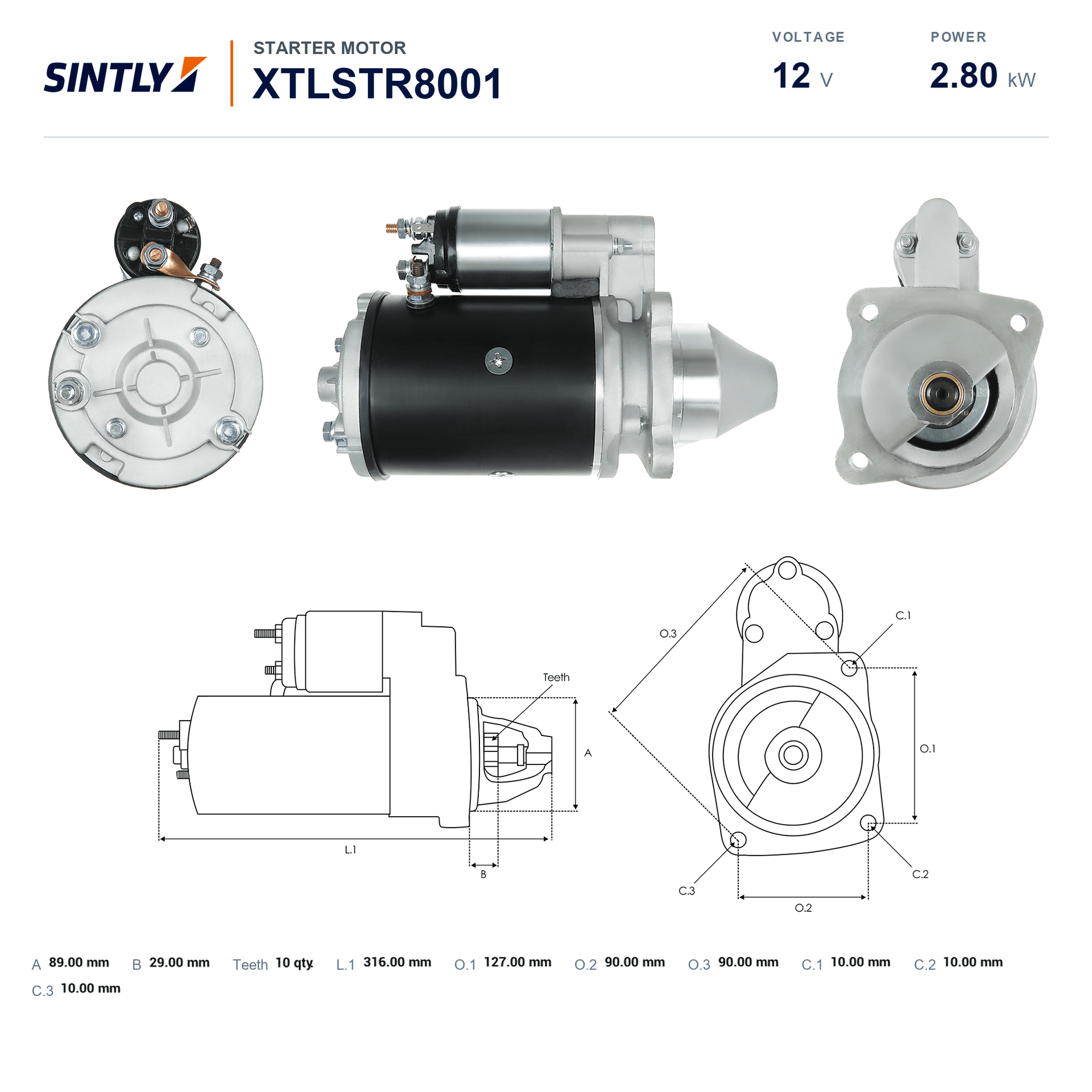

Starter XTLSTR8001
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
236 mm
Rotation
CW
Size A [ mm ]
88.5 mm
Size B [ mm ]
30 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
2.7 kW
O.3 [ mm ]
89 mm
O.2 [ mm ]
89 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR8001
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
236 mm
Rotation
CW
Size A [ mm ]
88.5 mm
Size B [ mm ]
30 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
2.7 kW
O.3 [ mm ]
89 mm
O.2 [ mm ]
89 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR8001
Original Code
7017954M1
9142743
9144703
Equivalent Code (Vehicle Manufacturer)
0001367040 (BOSCH)
10201L (KUHNER)
10201P (KUHNER)
10994L (KUHNER)
10994P (KUHNER)
11.130.076 (ISKRA / LETRIKA)
11.130.200 (ISKRA / LETRIKA)
11.130.373 (ISKRA / LETRIKA)
11.130.411 (ISKRA / LETRIKA)
11.130.509 (ISKRA / LETRIKA)
11.130.629 (ISKRA / LETRIKA)
11.130.872 (ISKRA / LETRIKA)
11.130.904 (ISKRA / LETRIKA)
AZJ0405 (ISKRA / LETRIKA)
AZJ3117 (ISKRA / LETRIKA)
AZJ3144 (ISKRA / LETRIKA)
AZJ3203 (ISKRA / LETRIKA)
AZJ3305 (ISKRA / LETRIKA)
AZJ3536 (ISKRA / LETRIKA)
AZJ3590 (ISKRA / LETRIKA)
AZJ3598 (ISKRA / LETRIKA)
110565 (CARGO)
111013 (CARGO)
111346 (CARGO)
F032110565 (CARGO)
F032111013 (CARGO)
F032111346 (CARGO)
123708007 (JUBANA)
1447731 (MASSEY FERGUSON)
1691806R1 (MASSEY FERGUSON)
1868285M1 (MASSEY FERGUSON)
1868285M2 (MASSEY FERGUSON)
1868285M3 (MASSEY FERGUSON)
1868285R3 (MASSEY FERGUSON)
1868287T (MASSEY FERGUSON)
2873006 (MASSEY FERGUSON)
3516094M1 (MASSEY FERGUSON)
3519400M1 (MASSEY FERGUSON)
3519400M92 (MASSEY FERGUSON)
3539390M91 (MASSEY FERGUSON)
3542185M91 (MASSEY FERGUSON)
3542185M92 (MASSEY FERGUSON)
3546391M91 (MASSEY FERGUSON)
3597372M2 (MASSEY FERGUSON)
3597372R2 (MASSEY FERGUSON)
3763362M91 (MASSEY FERGUSON)
3763362M94 (MASSEY FERGUSON)
3930506R1 (MASSEY FERGUSON)
3930509R1 (MASSEY FERGUSON)
70179544M1 (MASSEY FERGUSON)
706022A1 (MASSEY FERGUSON)
909971R2 (MASSEY FERGUSON)
20419831OE (REAL)
20500969 (PRESTOLITE)
66925051 (PRESTOLITE)
M100R2015SE (PRESTOLITE)
S5005L (PRESTOLITE)
25-0041 (ELSTOCK)
25-1022 (ELSTOCK)
25-1030 (ELSTOCK)
25-1410 (ELSTOCK)
25-2228 (ELSTOCK)
26274 (LUCAS)
26274B (LUCAS)
26274E (LUCAS)
26274H (LUCAS)
26320D (LUCAS)
26323 (LUCAS)
26323A (LUCAS)
26345 (LUCAS)
26345A (LUCAS)
26345B (LUCAS)
26345D (LUCAS)
26345E (LUCAS)
26366 (LUCAS)
26366A (LUCAS)
26366B (LUCAS)
26410 (LUCAS)
26410A (LUCAS)
26410B (LUCAS)
26414 (LUCAS)
26414E (LUCAS)
27510 (LUCAS)
27510B (LUCAS)
27510F (LUCAS)
27515 (LUCAS)
27515A (LUCAS)
27515B (LUCAS)
27515E (LUCAS)
27539 (LUCAS)
27539B (LUCAS)
27539D (LUCAS)
27541 (LUCAS)
27565 (LUCAS)
27568 (LUCAS)
27572 (LUCAS)
27572A (LUCAS)
27572B (LUCAS)
27572D (LUCAS)
27572E (LUCAS)
27572F (LUCAS)
27578 (LUCAS)
27583 (LUCAS)
27583A (LUCAS)
27583B (LUCAS)
27583D (LUCAS)
27583H (LUCAS)
27583J (LUCAS)
27590 (LUCAS)
27594 (LUCAS)
27594A (LUCAS)
27598 (LUCAS)
27599 (LUCAS)
27602 (LUCAS)
27606 (LUCAS)
27608 (LUCAS)
27626A (LUCAS)
54265233 (LUCAS)
LRS00173 (LUCAS)
LRS00232 (LUCAS)
LRS00969 (LUCAS)
LRS173 (LUCAS)
LRS232 (LUCAS)
LRS969 (LUCAS)
1447834M91 (PERKINS)
1873A054 (PERKINS)
1873A055 (PERKINS)
2378A029 (PERKINS)
26410R (PERKINS)
26414R (PERKINS)
2873003 (PERKINS)
2873004 (PERKINS)
2873006T (PERKINS)
2873A029 (PERKINS)
2873A031 (PERKINS)
2873B055 (PERKINS)
2873B057 (PERKINS)
2873B072 (PERKINS)
2873B073 (PERKINS)
2873D001 (PERKINS)
2873D002 (PERKINS)
2873D003 (PERKINS)
3181A032 (PERKINS)
433316 (VALEO)
D11E137 (VALEO)
D11E154 (VALEO)
D11E15H (VALEO)
538502 (DUCELLIER)
6021138 (SANDO)
7017954M1 (URSUS)
806.004.000.0 (ELMOT)
863.000.4 (ELMOT)
863.000.5 (ELMOT)
906.011.000.0 (ELMOT)
R11-04 (ELMOT)
R11g (ELMOT)
8EA726027-001 (HELLA)
8EA737250-001 (HELLA)
AES2132 (AUTOELECTRO)
AES9169 (AUTOELECTRO)
ALTS698 (3EFFE)
STRL027 (3EFFE)
STRL825 (3EFFE)
CGB-23287 (AINDE)
CS1033 (HC PARTS)
CS201 (HC PARTS)
CS994 (HC PARTS)
CST21138GS (CASCO)
DRS3287 (DELCO)
MAV271220 (SIOM)
MAV3630 (SIOM)
MS 282 (MAHLE)
MS 345 (MAHLE)
MS 385 (MAHLE)
MS 548 (MAHLE)
MS 615 OF (MAHLE)
MT68S (MAGNETI MARELLI)
S12-73 (HITACHI)
S13-73 (HITACHI)
S13-73B (HITACHI)
S13-74 (HITACHI)
STL0948 (KRAUF)
STR25013 (WOODAUTO)
220739 (ERA)
S12LU0292A2 (SIDAT)
234987A1 (CASE)
3116683R91 (CASE)
323319A1 (CASE)
388187A1 (CASE)
388187A2 (CASE)
26358 (JCB)
26358A (JCB)
27519 (JCB)
714-14300 (JCB)
714-29500 (JCB)
714-40005 (JCB)
714/29500-R (JCB)
714/40159 (JCB)
3542185M93 (LANDINI)
6005003154 (RENAULT)
6005021272 (RENAULT)
6005700081 (RENAULT)
7700011850 (RENAULT)
7701031686 (RENAULT)
STX200560 (STARDAX)
STX200678 (STARDAX)
STX200715 (STARDAX)
STX210083 (STARDAX)
STX210084 (STARDAX)
STX210091 (STARDAX)
Applications
Applications
ALL
URSUS
Make
URSUS
