Starter XTLSTR9502
Previous slide
Next slide
Starter XTLSTR9502
Download PDF
Send Inquiry
Voltage
12 V
Power
0.8 kW
Rotation
CW
Teeth
9
Mounting Holes
3
Threaded Mounting Holes
1
Overall Length
208 mm
Starter XTLSTR9502
Download PDF
Send Inquiry
Voltage
12 V
Power
0.8 kW
Rotation
CW
Teeth
9
Mounting Holes
3
Threaded Mounting Holes
1
Overall Length
208 mm
Reference Numbers
OE Numbers
FIAT
46231531
Equivalent Code
3EFFE
PRSL014
PRSS169
STRL014
STRL126
STRS169
STRS233
A.Z. MEISTERTEILE
AZMT-53-010-1109
ACAUTO
AC-CBS0796
ANDEL
ANM15494X
AS-PL
S4022
AUTOELECTRO
AES1298
AES9189
BOLK
BOL-C011090
BOSCH
0001113006
0001116005
0986017030
0986017031
F000AL0319
BOVEZ
STA0005R
CARGO
111422
F032111422
CASCO
CST30162AS
CST30162OS
CST30162RS
CEVAM
3829
CQ
22.0796
22.0796M
DA SILVA
020402
DELCO
DRS2555
DRS3274
DRS3555
DS4384
DRI
318203102
EAI
11679
11883
ELECTROLOG
STR00100
STR90057
ELMOT
807000.0
ELSTOCK
25-1480
25-3055
ERA
220024
220182
220182A
FARCOM
103555
FIAT
46429594
46430785
46473785
46476785
46518059
46548653
55196400
71721252
71721253
71721308
71752055
71782353
7735162
7772456
7772459
7785449
7796598
FRIESEN
8017030
GHIBAUDI
SG0139
GPARTS
GS223200-A
HC PARTS
CS796
HELLA
8EA012526-931
8EA732651-001
HERTH+BUSS
42017030
42114903
ISKRA / LETRIKA
11.130.421
AZE1202
AZE1511
IS0763
KRAUF
STE0796
KUHNER
10796
10796H
10796V
LE PART
LES0342
LOGISTIK
331115
331344
LUCAS
LRS00989
LRS02104
LRS2104
LRS989
MAGNETI MARELLI
063521130060
63101002
63102007
63103015
63201002
63222880
63222888
63222889
63222890
63222936
63223200
943201015010
944280170300
POWERMAX
8212205
88212205
PRESTOLITE
20500989
REAL
20404261BN
20404261RC
20404261RE
RNL
RNL1703
RNLD6RA59
SANDO
6030162.0
6030162.2
6030162.4
SIDAT
S12MA0044A2
S12VA0044
SIOM
MAV321620
MAV321620A
SOVEREIGN
SS221
VALEO
455553
726020
726820
D6RA59
ND159
VS287
WAI
30989N
30989R
500.514.093.000
500.514.093.008
500.514.093.050
500.514.093.058
500.514.093.215
500.514.093.265
500.514.093.266
500.514.093.311
500.514.093.396
500.514.093.500
500.514.093.505
500.514.093.605
S132.635
S143.934
WOODAUTO
STR52007
VALD6RA59
Applications
FIAT
BRAVO I (182_)
1.2 16V 80
12/1998-10/2000
1.2 16V 80
10/2000-10/2001
BRAVA (182_)
1.2 16V 80
12/1998-12/2002
1.2 16V 80
10/2000-10/2001
MAREA (185_)
1.2 16V
10/1998-05/2002
MAREA Weekend (185_)
1.2 16V
10/1998-05/2002
PUNTO (188_)
1.2 Bifuel
08/2007-03/2012
1.2 Natural Power
09/2003-03/2012
1.2 Bipower (188BXA1A)
08/2001-05/2003
1.2 60 (188.030, .050, .130, .150, .230, .250)
09/1999-12/2010
1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,...
09/1999-04/2006
PUNTO Hatchback Van (188_)
1.2 60
02/2000-10/2009
1.2 Natural Power (188CXA1A)
01/2003-12/2010
CINQUECENTO VAN (170_)
1.1 iE (170AH)
10/1994-02/1998
PUNTO Convertible (176_)
60 1.2 (176AR_, 176BR_)
05/1995-06/2000
60 1.2 (176AR_, 176BR_)
05/1995-06/2000
60 1.2
04/1994-06/2000
85 16V 1.2
04/1997-06/2000
PUNTO (176_)
55 1.1
09/1993-09/1999
60 1.2
01/1994-09/1999
60 1.2 (176AP, 176AR, 176AQ, 176BB)
09/1993-09/1999
75 1.2
10/1993-09/1999
60 1.2 (176AP, 176AR, 176AQ, 176BB)
09/1993-09/1999
55 1.1
09/1993-09/1999
1.2 16V
04/1997-09/1999
CINQUECENTO (170_)
1.1 Sporting (170AH)
10/1994-01/1998
PALIO Weekend (178_, 173_, 373_, 374_, 171_)
1.6 16V (178DXD1A)
06/1996-02/2001
PALIO (178_, 171_, 371_)
1.6 16V
04/1996-10/2002
SEICENTO / 600 (187_)
1.1 (187AXB, 187AXB1A, 187AXC1A02)
01/1998-01/2010
1.1 (187AXB, 187AXB1A, 187AXC1A02)
01/1998-01/2010
PUNTO Van (176_)
1.1
04/1996-02/2000
SEICENTO / 600 Hatchback Van (287_)
1.1 (187CXB/C)
01/1998-01/2010
SIENA (178_, 172_, 372_)
1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT)
09/1998-12/2002
View All
LANCIA
Home
Starter
Starter XTLSTR9502
Related Products
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
25.2 mm
Clamp: Motor
M8x1.25 mm
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
24.5 mm
Clamp: Motor
M8x1.25 mm

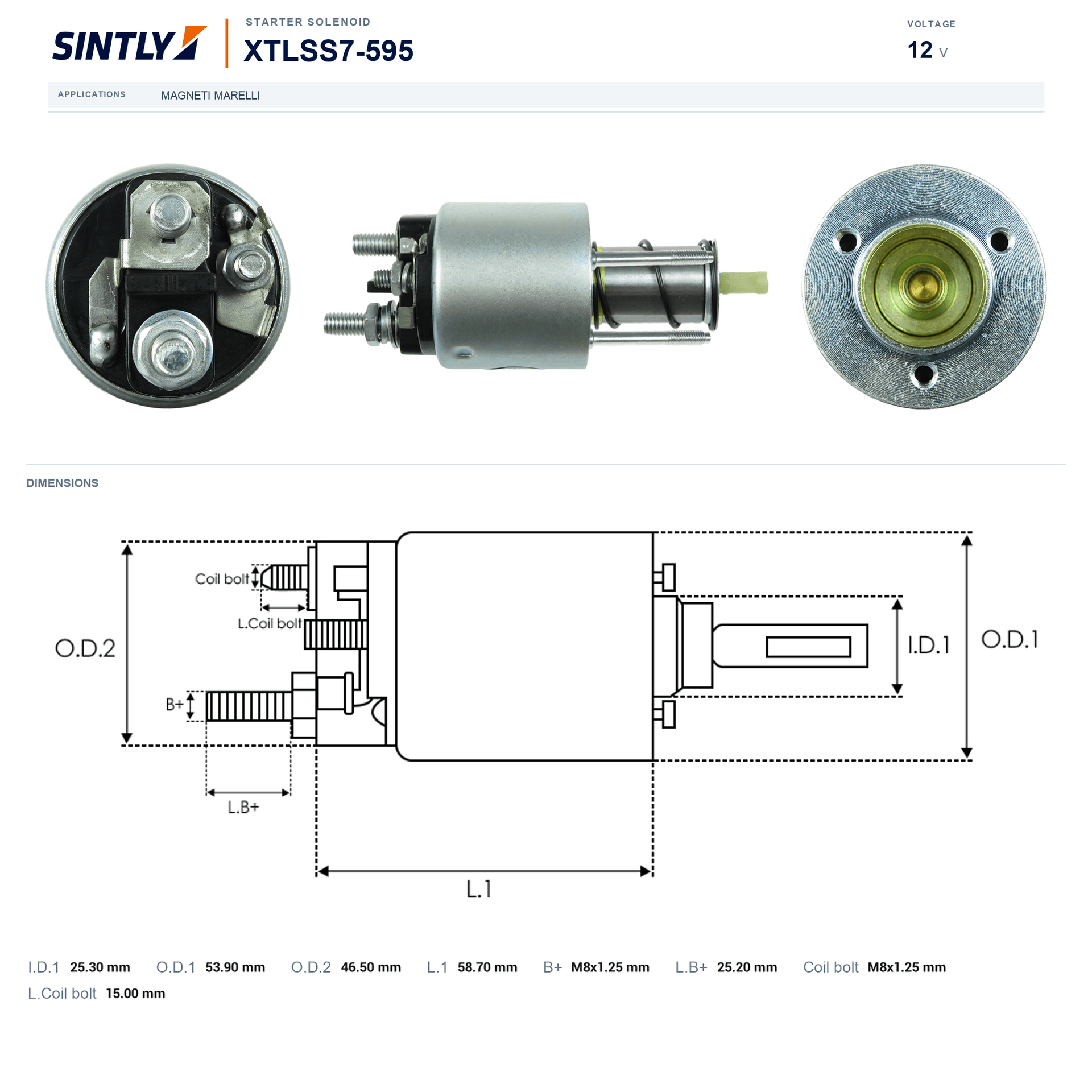

Starter Solenoid XTLSS7-595
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
25.2 mm
Clamp: Motor
M8x1.25 mm
Starter Solenoid XTLSS3-595

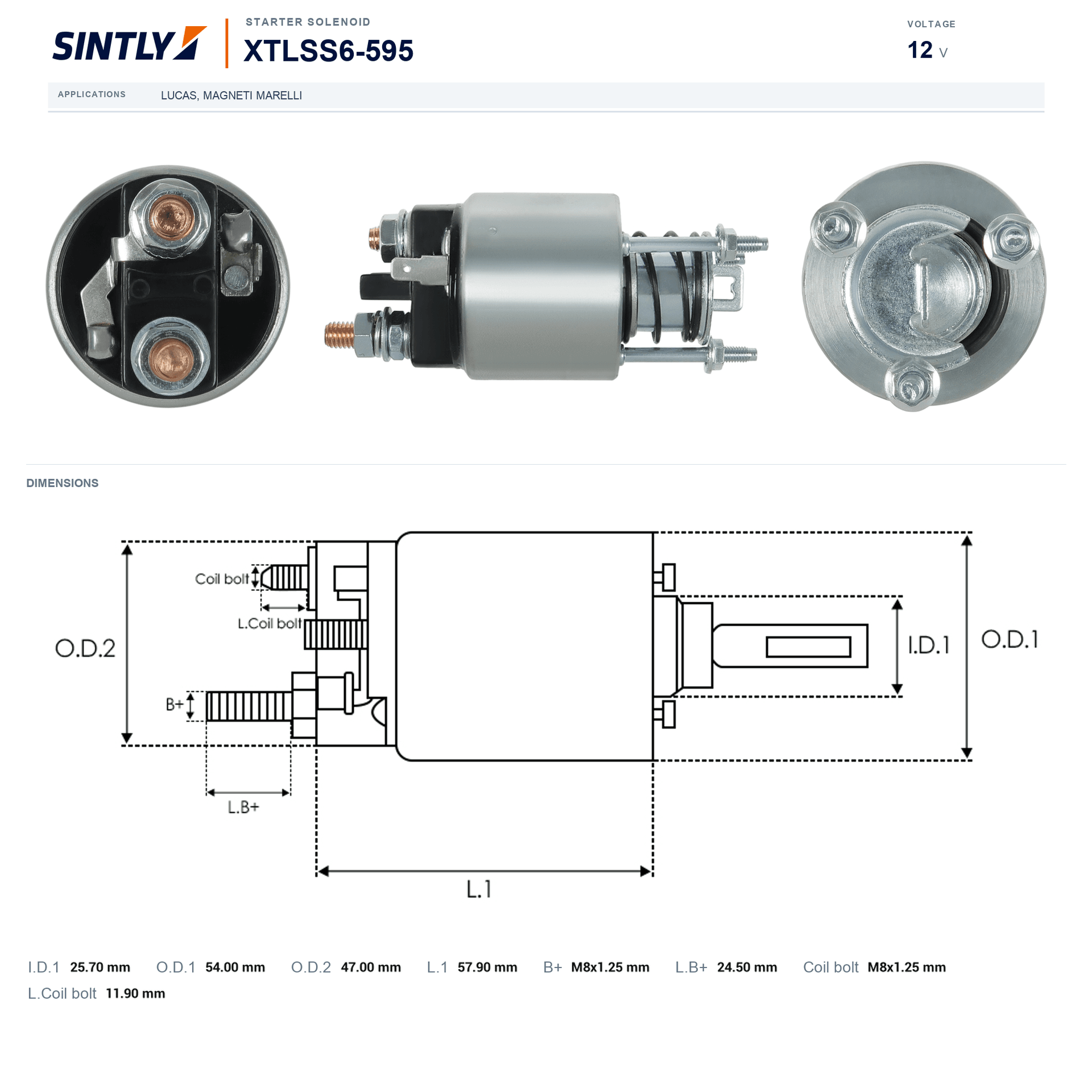

Starter Solenoid XTLSS6-595
