Starter XTLSTR9504
Previous slide
Next slide

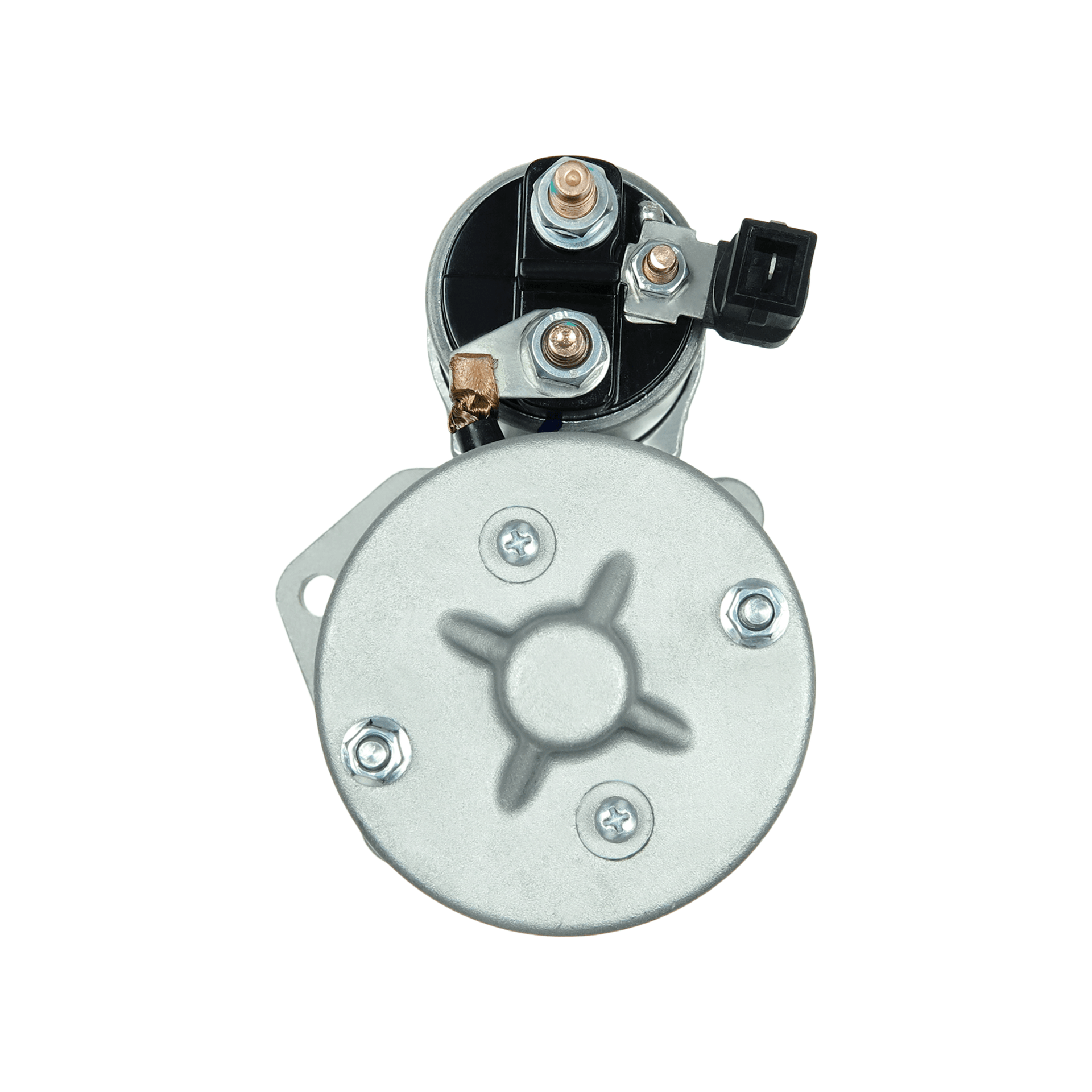

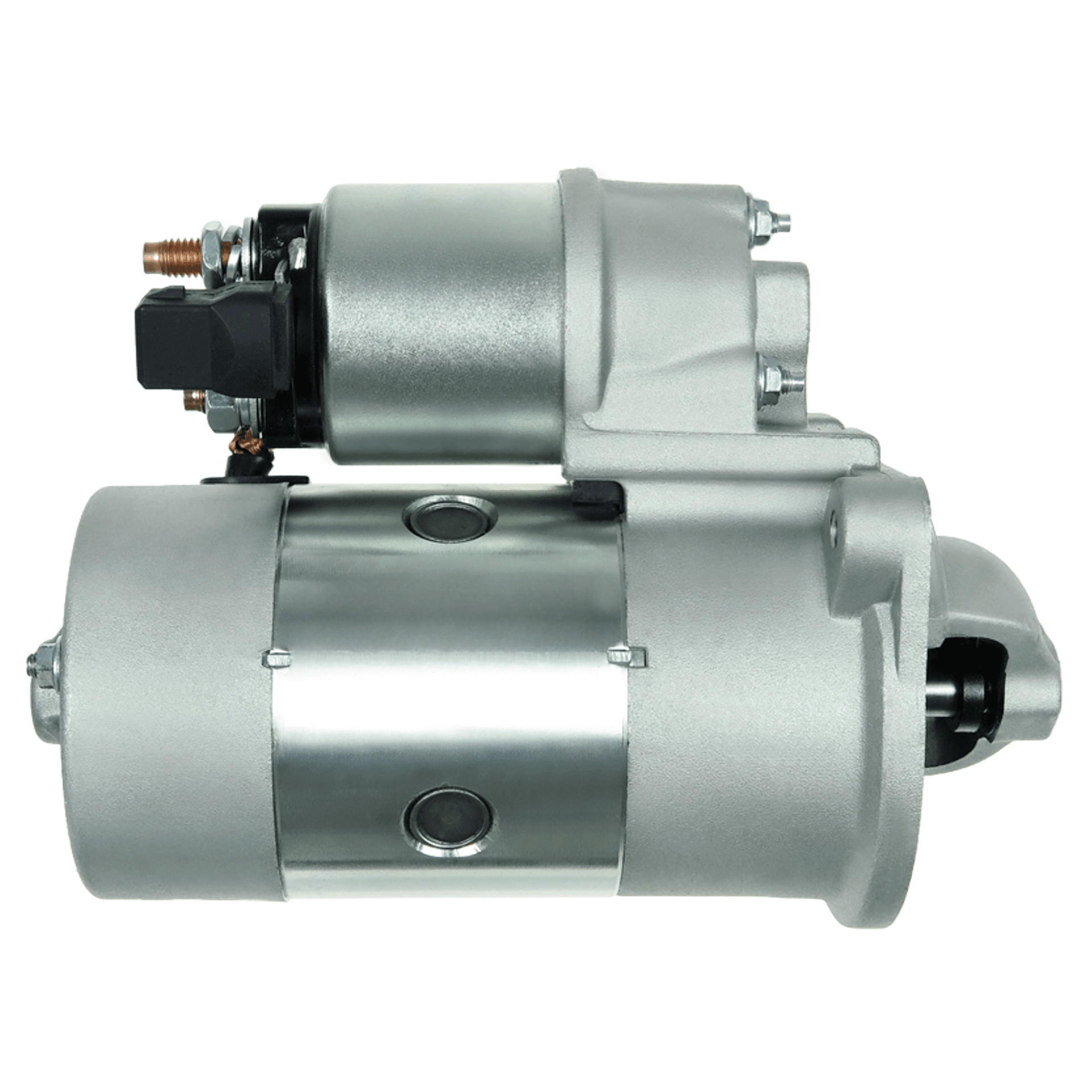

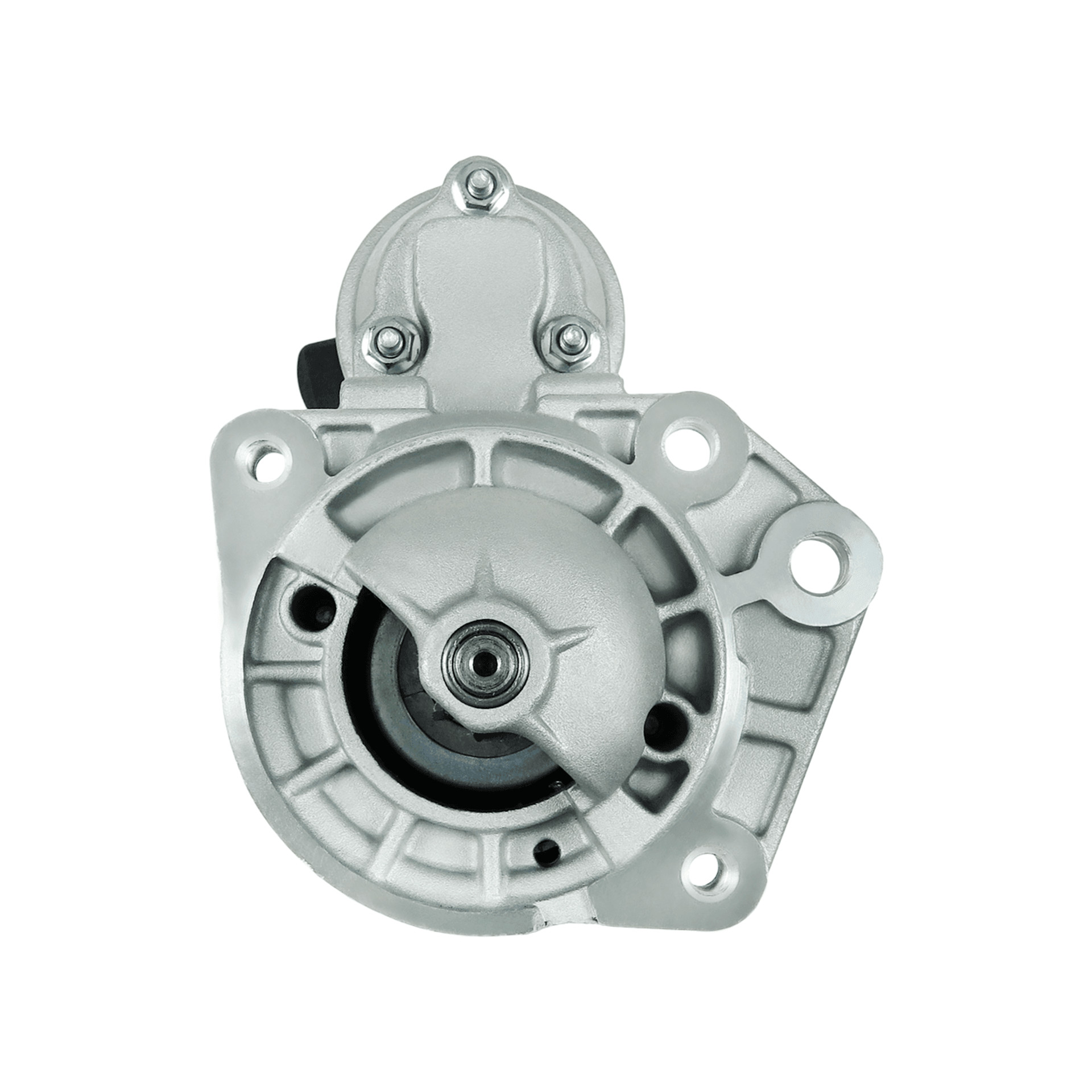

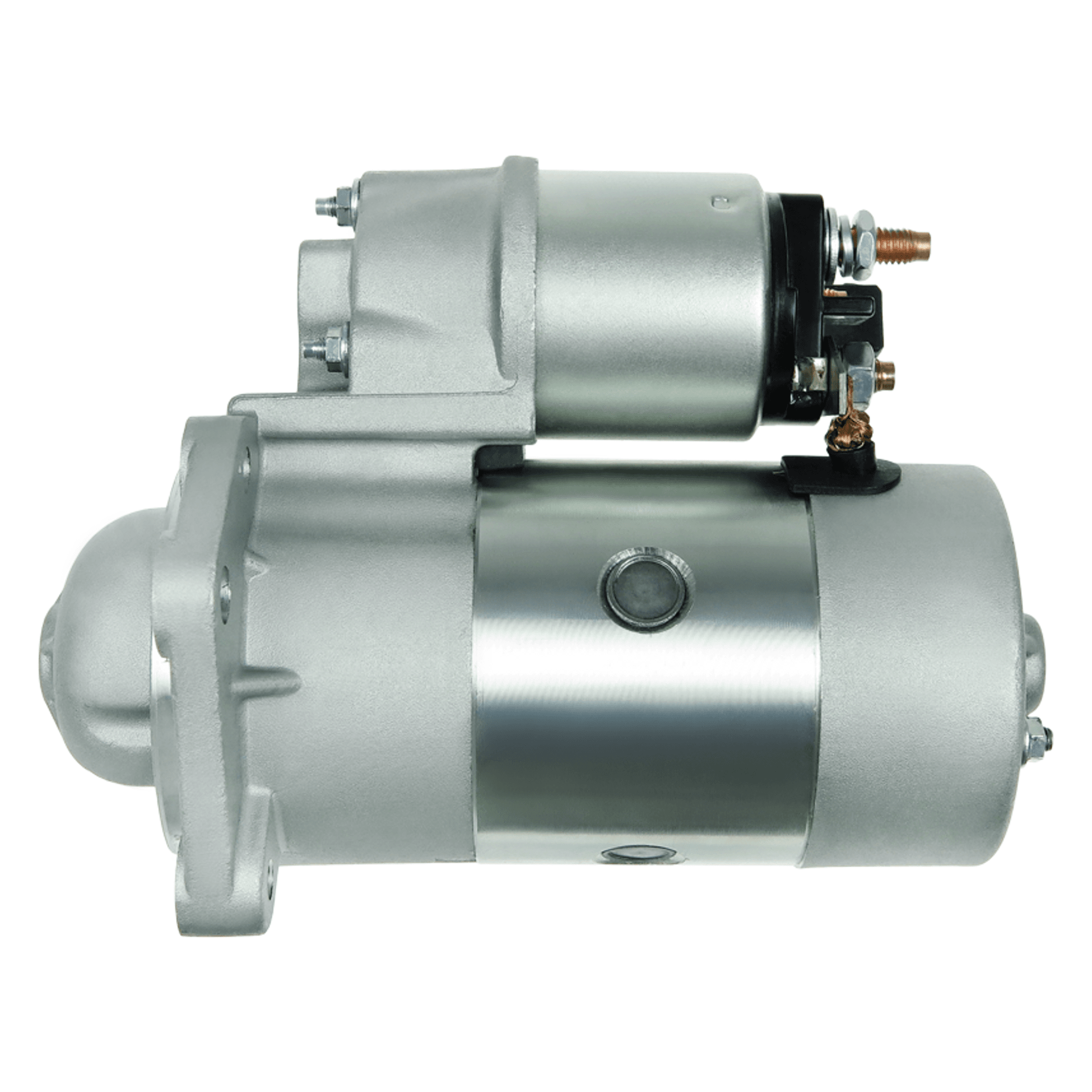

Starter XTLSTR9504
Download PDF
Send Inquiry
Voltage
12 V
Power
0.9 kW
Rotation
CW
Teeth
9
Mating Teeth
9
Mounting Holes
4
Threaded Mounting Holes
2
Overall Length
198 mm
Starter XTLSTR9504
Download PDF
Send Inquiry
Voltage
12 V
Power
0.9 kW
Rotation
CW
Teeth
9
Mating Teeth
9
Mounting Holes
4
Threaded Mounting Holes
2
Overall Length
198 mm
Reference Numbers
OE Numbers
VW
085911023E
Equivalent Code
AS-PL
S4016
AUTOELECTRO
AEY2116
BOSCH
0001114025
0986019311
BOVEZ
STA0123R
CARGO
114758
F032114758
CASCO
CST30188
CST30188AS
CST30188ES
CST30188GS
CST30188OS
CST30188RS
CEVAM
3030
EAI
11777
ELECTROLOG
STR10044
STR90022
ELSTOCK
25-3303
ERA
220161
GHIBAUDI
SG0129
HC PARTS
CS1548
KRAUF
STE0788
KUHNER
10788
LOGISTIK
330940
LUCAS
LRS02116
LRS2116
MAGNETI MARELLI
63223039
63293039
944280800490
MRS80049
REAL
20404881
RNL
RNL1931
RNL1931B
ROLLCO
STM524
SANDO
6030188
SIDAT
S12BH0784A2
SIOM
MAV6680
STARDAX
STX200982
STX200982R
WAI
30889R
WOODAUTO
STR52066
Applications
Home
Starter
Starter XTLSTR9504
Related Products
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
22 mm
Clamp: Motor
M8x1.25 mm
Starter Solenoid XTLSS1-396
Applications
VW
POLO III (6N1)
45 1.0
10/1994-09/1996
55 1.3
10/1994-04/1997
60 1.4
07/1995-10/1999
60 1.4
07/1995-10/1999
50 1.0
09/1996-10/1999
55 1.4
08/1995-10/1999
50 1.0
09/1996-10/1999
60 1.4
07/1995-10/1999
55 1.4
08/1995-10/1999
POLO Van Hatchback Van (6N1)
1.0
10/1994-12/1999
POLO (6N2)
1.4
10/1999-09/2001
1.4
10/1999-09/2001
1.4
10/1999-09/2001
1.4
10/1999-09/2001
1.0
10/1999-09/2001
1.4 16V
10/1999-09/2001
1.4 16V
10/1999-09/2001
1.4 16V
10/1999-09/2001
1.0
10/1999-09/2001
POLO III CLASSIC (6V2)
75 1.4 16V
10/1999-09/2001
75 1.4 16V
10/1999-09/2001
54 1.4
01/1998-08/1999
60 1.4
12/1995-09/2001
60 1.4
12/1995-09/2001
60 1.4
12/1995-09/2001
60 1.4
12/1995-09/2001
60 1.4
12/1995-09/2001
60 1.4
12/1995-09/2001
75 1.6
11/1995-09/2001
75 1.6
11/1995-09/2001
POLO Variant (6V5)
1.4
05/1997-09/2001
1.4
05/1997-09/2001
1.4
05/1997-09/2001
1.4
05/1997-09/2001
1.4
05/1997-09/2001
1.4
05/1997-09/2001
1.6
05/1997-09/2001
1.6
05/1997-09/2001
1.4
01/1998-08/1999
1.4 16V
10/1999-09/2001
1.4 16V
10/1999-09/2001
CADDY II MPV (9K9B)
1.6
06/1997-09/2000
1.4 16V
08/2000-01/2004
1.4
11/1995-06/2003
1.4
11/1995-06/2003
1.4
11/1995-06/2003
1.4
11/1995-06/2003
POLO Van Estate Van (6V5)
1.6
09/1997-12/1998
1.4
08/1997-12/1999
1.4
06/2000-09/2001
CADDY II Box Body/MPV (9K9A)
60 1.4
11/1995-01/2004
60 1.4
11/1995-01/2004
75 1.6
11/1995-09/2000
60 1.4
11/1995-01/2004
LUPO I (6X1, 6E1)
1.0
09/1998-07/2005
1.0
09/1998-07/2005
1.0
09/1998-07/2005
1.0
09/1998-07/2005
1.0
09/1998-07/2005
1.4
10/2000-07/2005
