Starter XTLSTR9506
Previous slide
Next slide

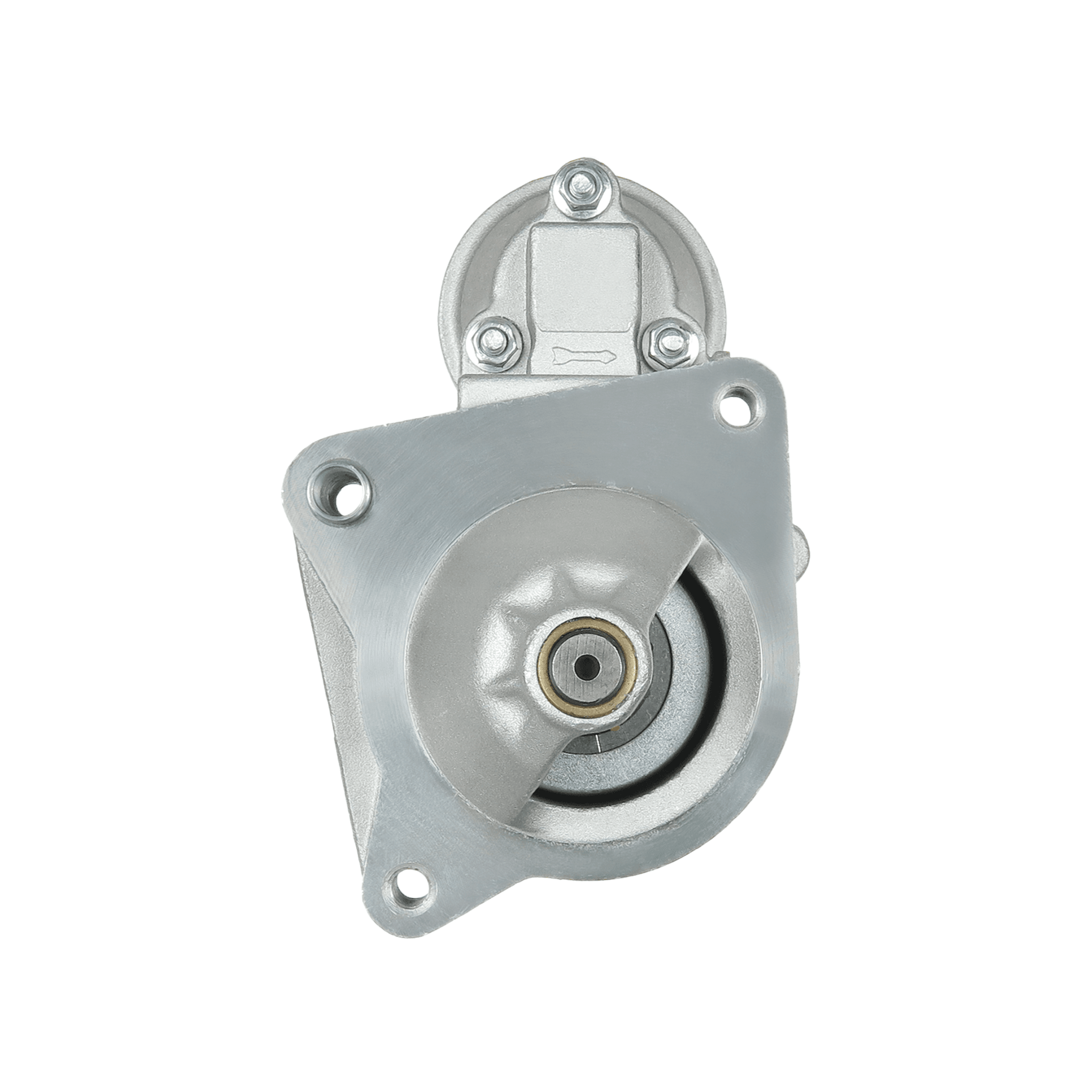

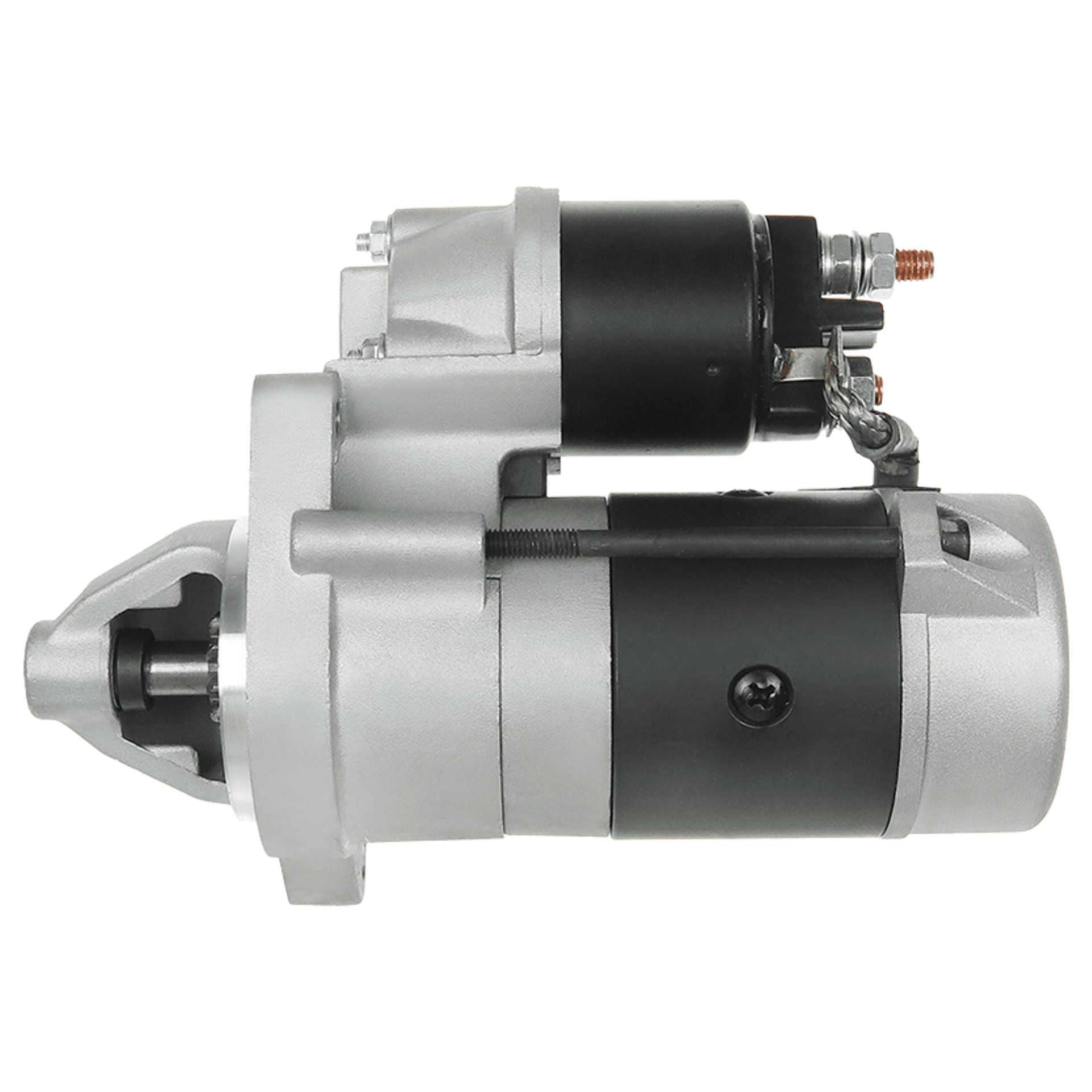

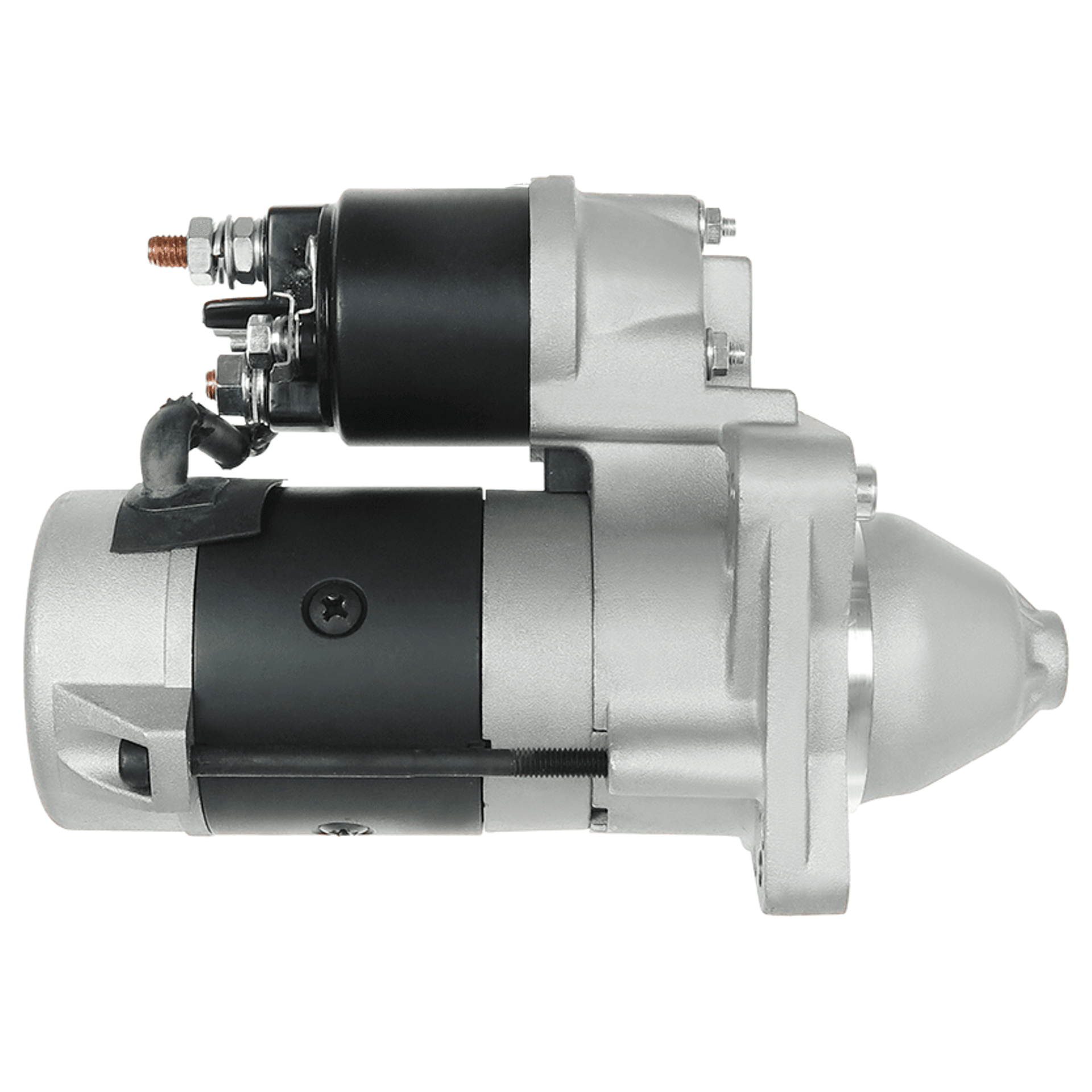

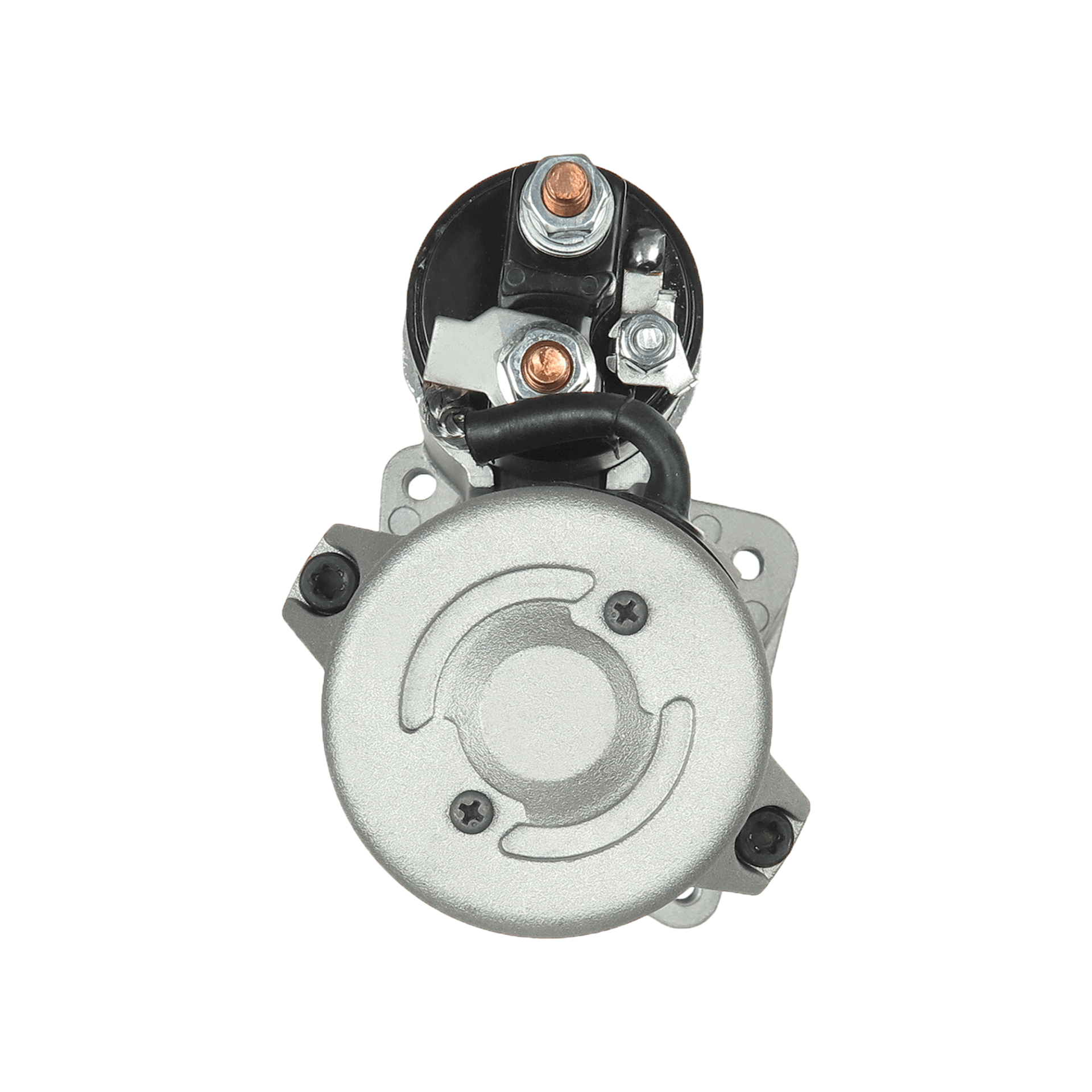

Starter XTLSTR9506
Download PDF
Send Inquiry
Voltage
12 V
Power
1.4 kW
Rotation
CW
Teeth
9
Mounting Holes
3
Threaded Mounting Holes
3
Overall Length
212 mm
Starter XTLSTR9506
Download PDF
Send Inquiry
Voltage
12 V
Power
1.4 kW
Rotation
CW
Teeth
9
Mounting Holes
3
Threaded Mounting Holes
3
Overall Length
212 mm
Reference Numbers
OE Numbers
FIAT
46231536
Equivalent Code
3EFFE
STRL067
ANDEL
ANM15803X
AS-PL
S4027
AUTOELECTRO
AEU1191
BOSCH
0986022111
BOVEZ
STA0174R
CASCO
CST30123
CST30123AS
CST30123ES
CST30123GS
CST30123OS
CST30123RS
CEVAM
3004
DELCO
DRS3583
DS4693
DS4697
EAI
11947
ELECTROLOG
STR9015
ELSTOCK
25-2337
ERA
220693
FIAT
46451529
46524472
46531437
46748349
46748355
46748356
46821681
51776205
51832956
51868757
55193407
70789523
71721236
71721266
71721272
71782308
71782309
71782310
71789523
71794531
GHIBAUDI
SG0779
HC PARTS
CS1191
HELLA
8EA012527-391
8EA737820-001
HERTH+BUSS
42022111
KRAUF
STE1191
KUHNER
101191
LUCAS
LRS01431
LRS1431
MAGNETI MARELLI
63111008
63111010
63111016
63111018
63111019
63111033
63111036
63111037
63223536
POWERMAX
88212300
REAL
20404321
SANDO
6030123
SIDAT
S12MA0821A2
SIOM
MAV2380
MAV6360
STARDAX
STX200212
STX200212R
STX200338
WAI
32579R
500.538.113
S132.945
Applications
Home
Starter
Starter XTLSTR9506
Related Products
Voltage
12 V
Clamp: B+
M8x1.25 mm
Clamp: Motor
M8x1.25 mm
Weight
0.792 kg
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
17 mm
Clamp: Motor
M8x1.25 mm
Starter Solenoid XTLSS1-479

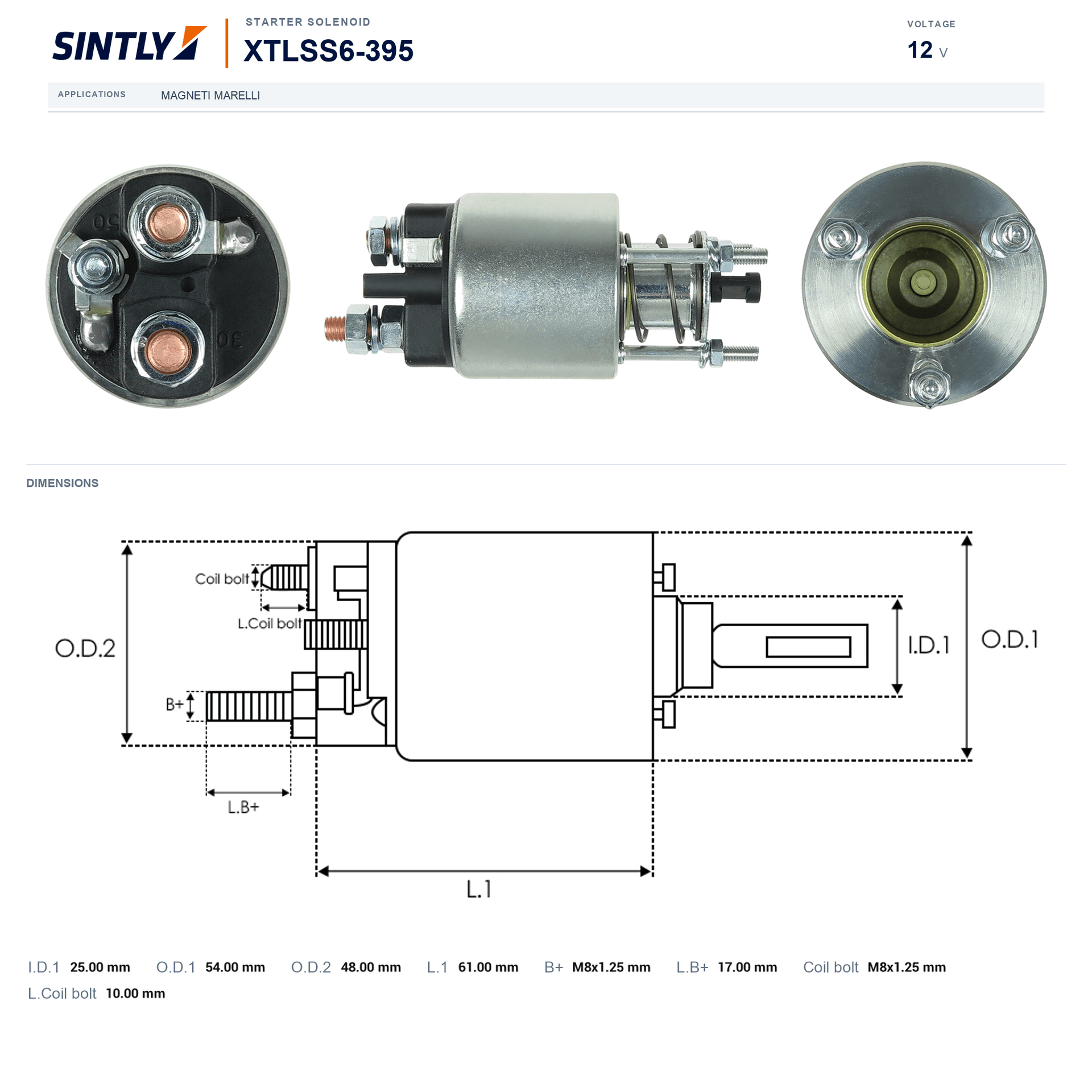

Starter Solenoid XTLSS6-395
Applications
FIAT
MULTIPLA (186_)
1.6 16V Blupower (186AMA1A)
04/1999-06/2010
1.6 100 16V (186AXA1A)
04/1999-06/2010
1.6 16V Bipower (186AMB1A)
04/1999-06/2010
1.6 16V Bipower (186AXC1A)
10/2001-06/2010
1.6 (186AXC1A, 186BMC1A, 186BXC1A)
09/2000-06/2010
PALIO Weekend (178_, 173_, 373_, 374_, 171_)
1.6 16V
02/2001-01/2012
1.6 16V (178DXD1A)
06/1996-02/2001
BRAVA (182_)
1.6 16V (182.BU)
01/1999-12/2002
1.6 16V (182.BB)
02/1996-10/2001
1.6 16V (182.BH)
10/1995-10/2001
MULTIPLA VAN (186_)
1.6 (186AXC1A, 186BMC1A, 186BXC1A)
09/2000-06/2010
MAREA (185_)
1.6 100 16V Bipower
04/1999-05/2002
1.6 100 16V Bipower
04/1999-05/2002
1.6
03/1999-08/2000
1.6 100 16V
09/1996-05/2002
1.6 16V
04/1997-02/1999
MAREA Weekend (185_)
1.6
09/2000-08/2002
1.6 100 16V
09/1996-05/2002
BRAVO I (182_)
1.6 16V (182.AH)
10/1995-10/2001
1.6 16V (182.AB)
03/1996-10/2001
SIENA (178_, 172_, 372_)
1.6 16V
09/1998-12/2009
View All
LANCIA
