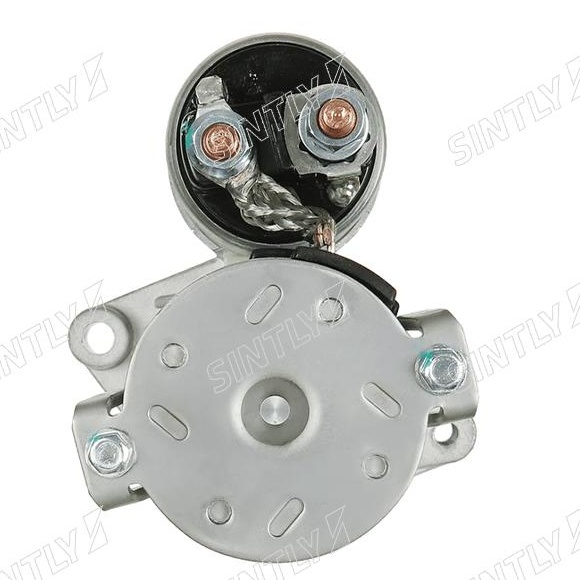

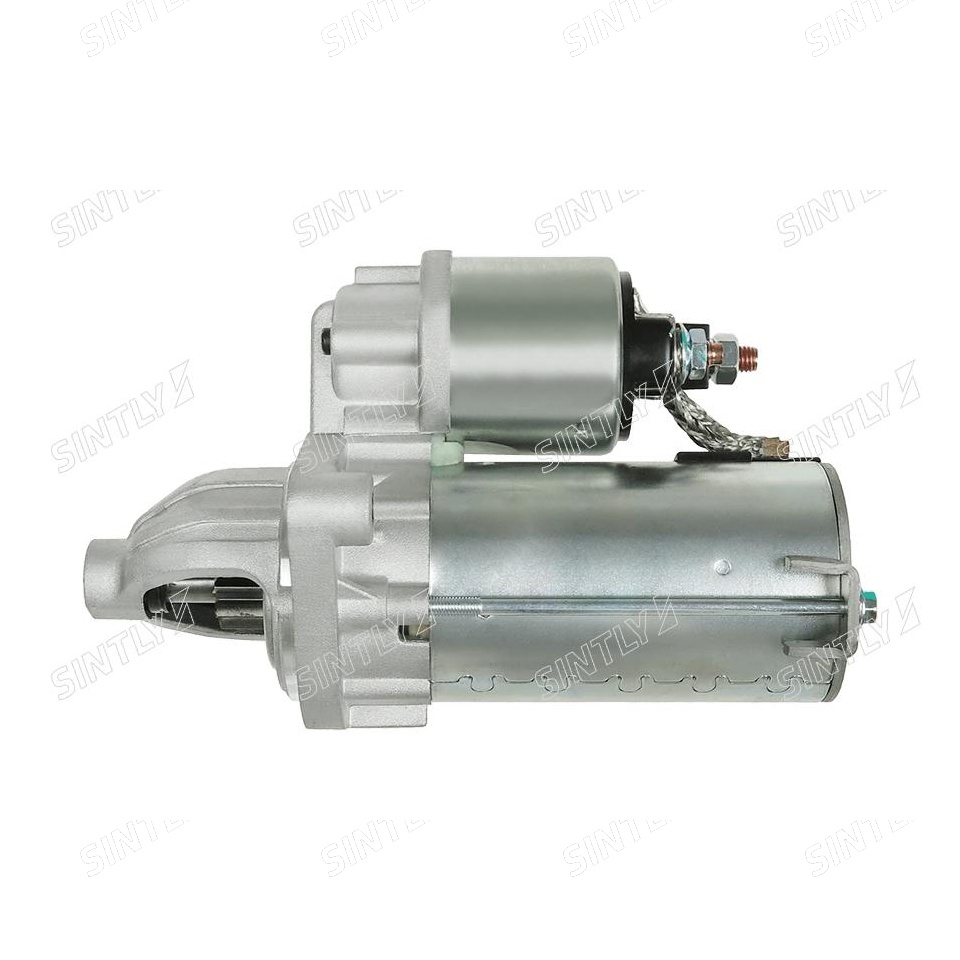

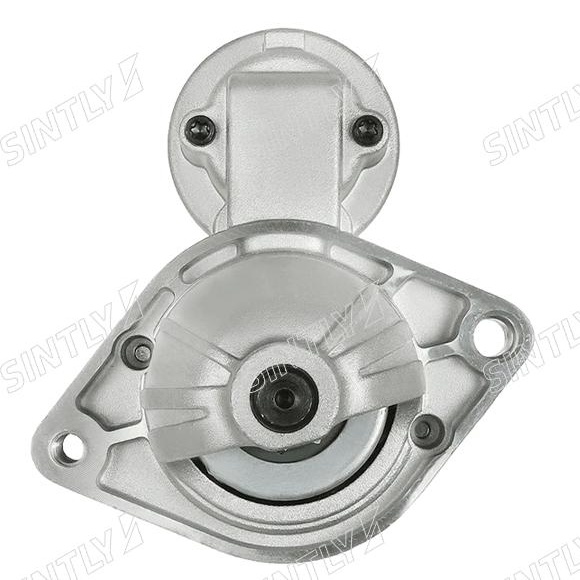

Starter XTLSTR4073

No./mount. holes [ qty. ]: 2 qty
O.1 [ mm ]: 102.5 mm
No./mount. holes with thread [ qty. ]: 1 qty
L.1 [ mm ]: 202 mm
Rotation: CW
Size A [ mm ]: 64 mm
Size B [ mm ]: 24 mm
No./teeth: 9 qty
No./teeth (fits into) [ qty. ]: 9 qty
Power: 1.3 kW

C.1 [ mm ]: 9.00 mm
Voltage: 12 V
C.2 [ mm ]: M8x1.25 mm

Starter XTLSTR4073

下载 PDF

No./mount. holes [ qty. ]: 2 qty
O.1 [ mm ]: 102.5 mm
No./mount. holes with thread [ qty. ]: 1 qty
L.1 [ mm ]: 202 mm
Rotation: CW
Size A [ mm ]: 64 mm
Size B [ mm ]: 24 mm
No./teeth: 9 qty
No./teeth (fits into) [ qty. ]: 9 qty
Power: 1.3 kW
C.1 [ mm ]: 9.00 mm
Voltage: 12 V
C.2 [ mm ]: M8x1.25 mm

适用车型

品牌
FIAT

原厂编码

2-3158-2W
33252
33353237
438168

替代编码 (汽车制造商)

S3017 (AS-PL)
UD14985S (AS-PL)
PRSL050 (3EFFE)
STRL050 (3EFFE)
CGB-20063 (AINDE)
CGB-20063R (AINDE)
ANM12283X (ANDEL)
AEU1346 (AUTOELECTRO)
NEU1346 (AUTOELECTRO)
0986024200 (BOSCH)
113719 (CARGO)
115869 (CARGO)
F032113719 (CARGO)
F032115869 (CARGO)
CST15138AS (CASCO)
CST15138GS (CASCO)
3161 (CEVAM)
DRS0063 (DELCO)
DRS0063N (DELCO)
DRS0063X (DELCO)
DS1173 (DELCO)
DS1173N (DELCO)
RAS31172 (DELCO)
11995 (EAI)
STR0493 (ELECTROLOG)
STR0494 (ELECTROLOG)
25-3423 (ELSTOCK)
220359 (ERA)
220359A (ERA)
33353237 (FIAT)
46823548 (FIAT)
51810266 (FIAT)
518102660 (FIAT)
51810302 (FIAT)
51823860 (FIAT)
51880229 (FIAT)
55204116 (FIAT)
55353247 (FIAT)
71424238 (FIAT)
71722997 (FIAT)
71724236 (FIAT)
71724238 (FIAT)
71789754 (FIAT)
71793302 (FIAT)
71793488 (FIAT)
1571299 (FORD)
1726349 (FORD)
9S52-11000-BB (FORD)
AMHB3C11000AA (FORD)
HB3C-11000-AA (FORD)
SG0412 (GHIBAUDI)
GS438168-A (GPARTS)
GS438168-N (GPARTS)
GS438168V-R (GPARTS)
S438168-A (GPARTS)
SS438168V-R (GPARTS)
CS1346 (HC PARTS)
8EA011610-301 (HELLA)
8EA738258-271 (HELLA)
42458191 (HERTH+BUSS)
6.0161.9 (IKA)
STV1346 (KRAUF)
101346 (KUHNER)
101346M (KUHNER)
101346R (KUHNER)
101346V (KUHNER)
331467 (LOGISTIK)
LRS02252 (LUCAS)
LRS2252 (LUCAS)
063280045010 (MAGNETI MARELLI)
63280045 (MAGNETI MARELLI)
943213461010 (MAGNETI MARELLI)
944280801130 (MAGNETI MARELLI)
MRS80113 (MAGNETI MARELLI)
MSN8045 (MAGNETI MARELLI)
5015029 (MEAT & DORIA)
09115193 (OPEL)
1202265 (OPEL)
1202499 (OPEL)
95511894 (OPEL)
95520332 (OPEL)
1612794380 (PEUGEOT)
1637179980 (PEUGEOT)
88212626 (POWERMAX)
S1216V (PRESTOLITE)
500.537.092.000 (PSH)
500.537.092.008 (PSH)
500.537.092.230 (PSH)
500.537.092.500 (PSH)
500.537.092.501 (PSH)
500.537.092.505 (PSH)
S132.943 (PSH)
S144.535 (PSH)
20479831BN (REAL)
20479831OE (REAL)
STM961 (ROLLCO)
6014155.1 (SANDO)
6015138.0 (SANDO)
6015138.1 (SANDO)
S12VA0017 (SIDAT)
S12VA0017A2 (SIDAT)
MAV4780 (SIOM)
33252N (WAI / TRANSPO)
33252R (WAI / TRANSPO)
STR54075 (WOODAUTO)
VAL438168 (WOODAUTO)
VALD6G321 (WOODAUTO)
STA0072R (BOVEZ)
STX200026 (STARDAX)
STX200026R (STARDAX)
STX200047 (STARDAX)
STX200047R (STARDAX)
EZ0594 (ELTA AUTOMOTIVE)
ASM1495 (APEC)
NPANSM1495 (NAPA)
