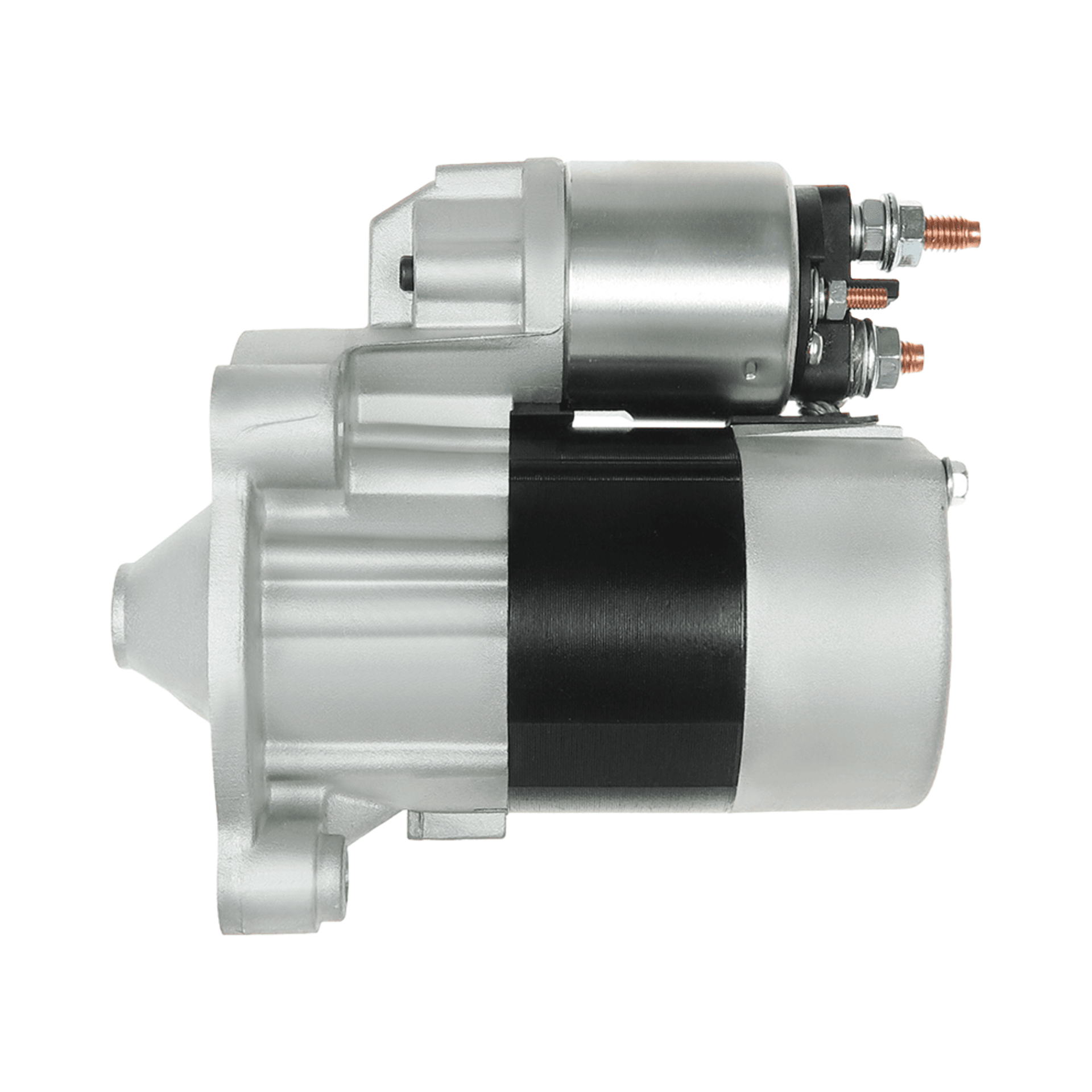

Starter XTLSTR4005

No./mount. holes [ qty. ]: 3 qty
O.1 [ mm ]: 85 mm
No./mount. holes with thread [ qty. ]: 1 qty
L.1 [ mm ]: 169 mm
Rotation: CW
Size A [ mm ]: 55 mm
Size B [ mm ]: -6 mm
No./teeth: 9 qty
No./teeth (fits into) [ qty. ]: 9, 10 qty
Power: 1 kW

O.3 [ mm ]: 85 mm
O.2 [ mm ]: 120 mm
C.1 [ mm ]: 9.50 mm
Voltage: 12 V
C.3 [ mm ]: M8x1.25 mm
C.2 [ mm ]: 9.50 mm

Starter XTLSTR4005

Descargar PDF

No./mount. holes [ qty. ]: 3 qty
O.1 [ mm ]: 85 mm
No./mount. holes with thread [ qty. ]: 1 qty
L.1 [ mm ]: 169 mm
Rotation: CW
Size A [ mm ]: 55 mm
Size B [ mm ]: -6 mm
No./teeth: 9 qty
No./teeth (fits into) [ qty. ]: 9, 10 qty
Power: 1 kW
O.3 [ mm ]: 85 mm
O.2 [ mm ]: 120 mm
C.1 [ mm ]: 9.50 mm
Voltage: 12 V
C.3 [ mm ]: M8x1.25 mm
C.2 [ mm ]: 9.50 mm

Aplicaciones

Marca
PEUGEOT

Código original

30738
580298
D6RA571
D6RA572

Código equivalente (Fabricante del vehículo)

AES7137 (AUTOELECTRO)
NES7137 (AUTOELECTRO)
0001112019 (BOSCH)
0001112029 (BOSCH)
0986013850 (BOSCH)
F000AL0327 (BOSCH)
110584 (CARGO)
116306 (CARGO)
F032110584 (CARGO)
F032116306 (CARGO)
CST15145AS (CASCO)
CST15145GS (CASCO)
CST15145RS (CASCO)
3611 (CEVAM)
DRS3545 (DELCO)
DRS3545N (DELCO)
DS4655 (DELCO)
DS4655N (DELCO)
RAS34656 (DELCO)
11856 (EAI)
STR0039 (ELECTROLOG)
STR0046 (ELECTROLOG)
STR0084 (ELECTROLOG)
25-1254 (ELSTOCK)
220012 (ERA)
220392 (ERA)
71794532 (FIAT)
9608719280 (FIAT)
9626261480 (FIAT)
K9609313280 (FIAT)
SG0396 (GHIBAUDI)
CS390 (HC PARTS)
CS581 (HC PARTS)
8EA011610-441 (HELLA)
8EA726205-001 (HELLA)
42455962 (HERTH+BUSS)
6.0011.9 (IKA)
6.0170.9 (IKA)
11.130.965 (ISKRA / LETRIKA)
AZE1212 (ISKRA / LETRIKA)
IS0529 (ISKRA / LETRIKA)
101111 (KUHNER)
101111V (KUHNER)
LRS00737 (LUCAS)
LRS737 (LUCAS)
063521120410 (MAGNETI MARELLI)
063720390010 (MAGNETI MARELLI)
943253115010 (MAGNETI MARELLI)
944280138500 (MAGNETI MARELLI)
944280179300 (MAGNETI MARELLI)
MQS390 (MAGNETI MARELLI)
MRS17930 (MAGNETI MARELLI)
MSR5315 (MAGNETI MARELLI)
72735810 (MAHLE)
MS182 (MAHLE)
M000T45071 (MITSUBISHI)
M000T45071AM (MITSUBISHI)
M000T45071ZT (MITSUBISHI)
M002T13081 (MITSUBISHI)
M003T40371 (MITSUBISHI)
M0T45071 (MITSUBISHI)
M0T45071AM (MITSUBISHI)
M0T45071ZT (MITSUBISHI)
M2T13081 (MITSUBISHI)
M3T40371 (MITSUBISHI)
558098 (PEUGEOT)
5802-CR (PEUGEOT)
5802-Q7 (PEUGEOT)
5802-Q8 (PEUGEOT)
5802-Q9 (PEUGEOT)
5802-R3 (PEUGEOT)
580200000000 (PEUGEOT)
580298 (PEUGEOT)
5802A0 (PEUGEOT)
5802C2 (PEUGEOT)
5802C9 (PEUGEOT)
5802CC (PEUGEOT)
5802CG (PEUGEOT)
5802EP (PEUGEOT)
5802J1 (PEUGEOT)
5802J5 (PEUGEOT)
5802M9 (PEUGEOT)
5802N0 (PEUGEOT)
5802N2 (PEUGEOT)
5802N3 (PEUGEOT)
5802P8 (PEUGEOT)
5802Q1 (PEUGEOT)
5802R4 (PEUGEOT)
5802Y3 (PEUGEOT)
9150866480 (PEUGEOT)
91536241 (PEUGEOT)
9153624180 (PEUGEOT)
91536242 (PEUGEOT)
95155198 (PEUGEOT)
95624960 (PEUGEOT)
95667752 (PEUGEOT)
95667753 (PEUGEOT)
96028857 (PEUGEOT)
96052193 (PEUGEOT)
9605219380 (PEUGEOT)
96087192 (PEUGEOT)
9608719380 (PEUGEOT)
96093132 (PEUGEOT)
9609313280 (PEUGEOT)
96095132 (PEUGEOT)
9618725080 (PEUGEOT)
96262614 (PEUGEOT)
9633292480 (PEUGEOT)
9647982880 (PEUGEOT)
9648644680 (PEUGEOT)
9658308780 (PEUGEOT)
97530824 (PEUGEOT)
88213335 (POWERMAX)
20500737 (PRESTOLITE)
S1208V (PRESTOLITE)
220.008.093.000 (PSH)
220.008.093.005 (PSH)
220.008.093.215 (PSH)
220.008.093.315 (PSH)
220.008.093.395 (PSH)
220.008.093.506 (PSH)
220.008.093.509 (PSH)
220.008.093.608 (PSH)
220.008.093.609 (PSH)
S131.728 (PSH)
S148.755 (PSH)
20479541BN (REAL)
20479541OE (REAL)
20479541RC (REAL)
RNLD7E16 (RNL)
STM476 (ROLLCO)
6015102.1 (SANDO)
6015145.0 (SANDO)
6015145.1 (SANDO)
6015145.2 (SANDO)
S12VA0002A2 (SIDAT)
MAV371390 (SIOM)
MAV4720 (SIOM)
MAV4740 (SIOM)
30738R (WAI / TRANSPO)
STR54001 (WOODAUTO)
PRSL083 (3EFFE)
STRL083 (3EFFE)
S3032 (AS-PL)
1516758R (DAF)
3960404 (FORD)
STX200012 (STARDAX)
STX200012R (STARDAX)
STX200041 (STARDAX)
STX200041R (STARDAX)
STX200101 (STARDAX)
STX200101R (STARDAX)
STX200111 (STARDAX)
STX200111R (STARDAX)
STX200317 (STARDAX)
STX200317R (STARDAX)
STX201404 (STARDAX)
